16:9 Aspect Ratio, 20000000:1 Dynamic Contrast Ratio, 1920 x 1080 Native Resolution, 178/178 Degrees H/V Viewing Angle, 250 cd/m2 Brightness, 6ms Response Time, 15-pin mini D-sub / DVI-D
MacMall Part #: 8793939
Manufacturer Part #: VP2365-LED
The VP2365-LED is one of ViewSonic's new LCD VP professional series monitors that utilizes the power of IPS panel technology, which is perfect for photography. Featuring Mega high contrast ratio and XtremeView 178/178 degree viewing angles, and coupled with 1920x1080 resolution, makes the VP2365-LED the ultimate professional grade LCD monitor for digital visual art and any application where true color and total screen viewing is essential. Features VGA and DVI inputs and 4-port USB hub for cluster free connectivity, ergonomic functions with pivot, height adjust, tilt, swivel and slim bezel make the VP2365-LED an all around amazing monitor.
23-Inch widescreen LED backlit monitor for photographers or designers.
IPS panel delivers superior image quality, accurate colors and high contrast ratio even at super wide viewing angles of 178 degrees
Environmentally friendly Eco-mode saves up to 40% energy* while helping reduce your energy bill
Slim Bezel designed for multi-monitor applications
4-port USB hub for easy connectivity of USB devices such as digital cameras, USB flash drives and mice
100mmx100mm VESA® compliant for 3rd party wall mount or monitor stands
DVI and VGA inputs for diverse connectivity options
Highest grade panel with one of the best pixel performance policy in the industry
*Power savings may vary based on actual usage and other factors.
What is an IPS Panel? IPS (in-plane switching) technology is the highest performance panel technology available in the LCD displays. The specifications and details of IPS panel technology are considered best for high accuracy in color, contrast and wide viewing angles. IPS panels offer excellent picture reproduction and suitable for photography or graphics design. Illustrations below represent how an image on your screen will look even at extreme viewing angles of up to 178 degrees. With IPS panels, you will not have any color shifts or changes in the contrast ratio when you move the image across the screen or change your viewing angle.
Wide viewing angles
At 45 degrees angle
At 178 degrees angle
True life-like colors Since IPS panels support real life colors, they are perfect for photographers, graphics and movie designers. For example, when you take a picture of your family on a field trip, the blue of the sky, the green of the grass will look exactly the same on your screen and on your prints, assuming your camera and your printer support true RGB colors as well.
From your camera...
To your screen...
To your wall.
What is a LED monitor? The term "LED monitor" generally refers to a monitor with a LCD panel and a LED backlight. A typical LCD monitor uses cold cathode fluorescent lamps (CCFL) as a light source to illuminate the LCD panel. In an LED backlit monitor, white LEDs (Light Emitting Diodes) are used as the light source. Environmentally friendly LED backlights provide the following benefits:
About 50% less power consumption compared to traditional CCFL monitor
20,000,000:1 MEGA Contrast Ratio
Environmentally friendly mercury-free backlight
Low EMI (Electro Magnetic Interference)
Cold Cathode Fluorescent Lamp
LED: Light Emitting Diode
Designed with professionals in mind From 23" widescreen IPS panel to 1920x1080 resolution, from 90 degrees pivot to height adjust function, from dual video input to 4-port USB hub, from eco-mode to VESA mounts, the VP2365-LED is designed with one thing in mind: to serve the needs of professional photographers.
Some of the applications where the VP2365-LED can be a perfect solution:
Fully Calibrated Color With its high color gamut: 83% NTSC and over 100% EBU, the VP2365-LED can accurately be calibrated for reliable color production. It is completely compatible with 3rd party calibrators from manufacturers such as ColorVision and GretagMacbeth. This provides complete coverage of the sRGB and Adobe color space so your photos reflect true color saturation from screen to print.
Eco-mode for up to 40% energy savings ViewSonic's proprietary Eco-mode function comes standard with the VP2365-LED. When you don't need all of the powerful features VP2365-LED has to offer, you have the option to reduce the monitor's brightness, save energy, save the planet and prolong the lamp life. You can select one of the "Optimize" or "Conserve" options and save up to 40% energy. Especially under low ambient light conditions, adjusting the brightness will improve visibility by reducing eye fatigue. Reducing brightness will also prolong the monitor's lamp life, improving your return on investment.
Efficiency and comfort Ergonomics is defined as profession of designing tools and work environments to best accommodate human performance and behavior. The VP2365-LED is one of the great examples of an ergonomically designed tool. Based on your height, chair and desk conditions, you can adjust it up and down for 5.3 inches, swivel it 360 degrees, or tilt it 20 degrees, whatever makes you more comfortable.
Also, when working on a portrait mode image or a horizontal one, you can rotate the monitor 90 degrees and utilize your 23" screen size at its full extent. You can also adjust your graphics card settings so that all your graphics are rotated 90 degrees as well.
90 degrees Pivot/Portrait Mode
5.3" height adjust
360 degrees Swivel
-5 degrees/+20 degrees Tilt
Full HD Resolution VP2365-LED features a 23" widescreen with 1920x1080 resolution that is capable of displaying a native Full HD 1080p image. In today's world, Full HD content is getting more and more common which in return increases the demand for high resolution images. In order for photographers to work more accuratetely on high resolution content, a display that natively supports this resolution becomes essential.
ViewSonic VP2365-LED's 23" panel offers another new trend in the LCD panel market - 16:9 aspect ratio. This new aspect ratio not only natively supports Full HD 1080p content but also in a "non-distorted" way. For example, a 1920x1200 resolution monitor will also support Full HD 1080p but it will either stretch it to fit into a full screen or show blank side bars to avoid distortion. With a 16:9 aspect ratio panel, you will get the most out of your HD content since HD contents are natively designed in this format.
VESA mount and multi-monitor setup Designing a professional grade monitor is not easy. We need to understand the needs of our professional users as well as their most common usage patterns. For those who plan to install VP2365-LED on a monitor stand for multi monitor setups or wall mount it, we included a 100mm x 100mm VESA mount holes in the back. You can detach the base easily by unscrewing four screws and then mount the display on its new stand or wall mount.
Another critical element for multi monitor setups is the bezel design. We made sure that VP2365-LED features a thin bezel so that when you tile two, three, four or more monitors together, you have minimum lost space between them.
Dual monitor setup
Peace of mind with one of the best pixel performance guarantee and 3 year limited warranty One of the aspects that make ViewSonic a market leader in displays is its commitment to quality. LCD panels are produced in factories and as everything else, they may have flaws too. One of the flaws of an LCD panel is a dead pixel, bright or a dark one. Some panels will have no dead pixels while some will have one or two or more. When LCD display manufacturers build their monitors, they will have the option to use different grade panels with different tolerance levels for the number of dead pixels. ViewSonic is committed to use the highest grade panels and offer one of the best pixel performance policy in the market. We also back our displays with a 3-year limited warranty for your peace of mind.

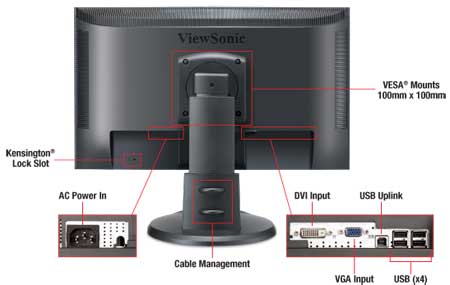

Diverse connectivity The VP2365-LED features a DVI-D digital and a VGA analog input. You can connect two sources at the same time and then toggle between the two by selecting the input source through the On-Screen-Display (OSD). You can also connect one of your computer's USB ports to the monitor's USB uplink input which then multiplies the USB ports to four. This way, you can connect and upload photos quickly and easily.
Dimensions and other features:
LED-backlit LCD monitor / TFT active matrix
Widescreen - 16:9
FullHD 1920 x 1080
1000:1 / 20000000:1 (dynamic)
6 ms (gray-to-gray)
Vertical Refresh Rate
50 - 75 Hz
Horizontal Refresh Rate
22 - 82 kHz
Horizontal Viewing Angle
Vertical Viewing Angle
Anti-glare, 3H Hard Coating
9300K, 5000K, 6500K, 7500K
Controls & Adjustments
Brightness, contrast, H/V position, sharpness, input select, color temperature, H-size, aspect control
Sync on Green, sRGB color management, HDCP, Eco-Mode, Mega Contrast Ratio, Mercury free
21.6 in x 9.8 in x 17 in - with stand
DVI-D ¦ VGA ¦ USB 2.0 upstream ( Type B ) ¦ 4 x USB 2.0 downstream ( Type A )
Display Position Adjustments
Height, pivot (rotation), swivel, tilt
Flat Panel Mount Interface
100 x 100 mm
Security lock slot (cable lock sold separately)
1 x VGA cable ¦ 1 x DVI cable ¦ 1 x USB cable
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
FCC Class B certified, UL, TUV GS, C-Tick, BSMI, ISO 9001, cUL, NOM, SASO, TUV S, ISO 14001, CB, CCC, TUV Ergo, PSB, RoHS, WEEE, GOST-R, TCO '05, KC, TUV Nord, CEL
AC 120/230 V ( 50/60 Hz )
Power Consumption Operational
Power Consumption Stand by
On / Off Switch
Software / System Requirements
Dimensions & Weight
Dimensions & Weight Details
Without stand - width: 21.6 in - depth: 2.5 in - height: 12.8 in - weight: 7.3 lbs ¦ With stand - width: 21.6 in - depth: 9.8 in - height: 17 in - weight: 11.9 lbs
ENERGY STAR Qualified
Service & Support
3 years warranty
Service & Support Details
Limited warranty - parts and labor - 3 years ¦ Limited warranty - backlight - 3 years
