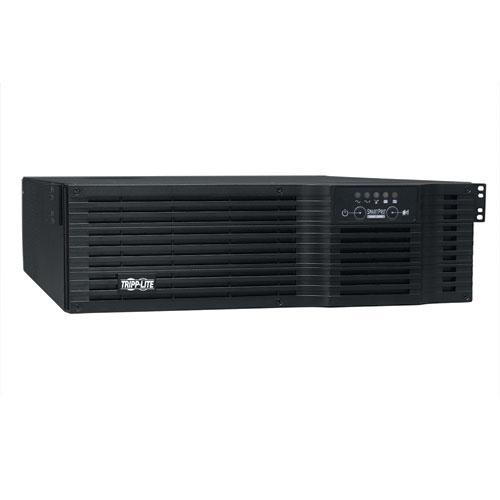

TrippLite 2200VA 1920W UPS Smart Rackmount AVR 120V / 230V 3URM TAA GSA (SM2200RMDVTAA)

TrippLite
No Reviews | Add Review

Share Today!


TrippLite 2200VA 1920W UPS Smart Rackmount AVR 120V / 230V 3URM TAA GSA


Widget Not Available!!!

Overview

Maintains 120V nominal output when powered by North American 120V or International 230V input.
  • MacMall Part #: 8208287
  • Manufacturer Part #: SM2200RMDVTAA
  • UPC: 659427004155
  • Platform: Universal



Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. Protects a variety of computer, networking and other sensitive equipment types from blackouts, voltage fluctuations and transient surges. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Uninterruptible Power Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) offers voltage boost during brownouts and voltage cut during overvoltages to maintain regulated 120v output over an input range of 89 to 148V or 212 to 286V. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode reduces energy cost and BTU emissions. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Installation accessories for rackmount and upright tower form factors included. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme. 2-year warranty; extended warranty and service contracts available.

Key Features:
  • SmartPro SM2200RMDVTAA dual-voltage line interactive UPS system maintains 120V nominal output with either 120V or 230V input power
  • Ideal for voice, data and networking applications requiring 120V output from worldwide power sources
  • Line interactive Automatic Voltage Regulation (AVR) offers voltage boost during brownouts and voltage cut during overvoltages
  • Maintains continuous operation through blackouts, voltage fluctuations and surges
  • Corrects line voltage conditions between 89 to 148V or 212 to 286V to 120V nominal output
  • Standard internal battery set offers 30 minutes runtime at half load (960 watts) and 12 minutes at full load (1920 watts)
  • Includes C20 power inlet with set of 4 international cordsets to support 5-20P, Schuko, CEE 7 / EU1-16P, British BS1363A and Italian CEI 23-16 plug types
  • Includes NEMA 5-15R and 5-15/20R output receptacles
  • Network-grade AC surge and noise suppression
  • Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot
  • HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
  • Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces
  • Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface
  • Integrated 2-bank PDU switching supportsload shedding and remote-reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs
  • 95% efficiency in line power mode reduces energy cost and BTU emissions
  • Utility power and voltage regulation LEDs
  • Installation accessories for rackmount and upright tower form factors included
  • Field-replaceable, hot-swappable internal batteries and external battery packs
  • 2-year warranty; extended warranty and service contracts available

Technical Specs

General
Device Type UPS - external
Battery Enclosure Type Internal
Height (Rack Units) 3U
Power Device
UPS Technology Line interactive
Input Voltage AC 120/230 V
Frequency Required 50/60 Hz
Input Connector(s) 1 x power IEC 320 EN 60320 C20
Power Output Connectors Details 4 x power NEMA 5-15 ¦ 4 x power NEMA 5-15/20
Output Voltage AC 120 V ± 5%
Power Capacity 1.92 kW / 2200 VA
Output Waveform Sinewave
Surge Suppression Yes
Surge Energy Rating 340 Joules
Circuit Protection Circuit breaker
Battery
Type Expandable
Technology Lead acid
Voltage Provided 48 V
Run Time (Up To) 12 min at full load ¦ 30 min at half load
Networking
Remote Management Interface RS-232, USB
Expansion / Connectivity
Interfaces 1 x management (USB) ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off)
Expansion Slot(s) 1 (total) / 1 (free) x expansion slot
Miscellaneous
Cables Included 5 x power cable ¦ 1 x USB cable - external ¦ 1 x serial cable - external
Features Audible alarm, emergency power off, Automatic Voltage Regulation (AVR), LED indicators
Compliant Standards CSA, NOM, UL 1778, RoHS, FCC Part 15 A
Pricing Type Trade Agreements Act (TAA) Compliance
Software / System Requirements
Software Included TrippLite PowerAlert
Manufacturer Warranty
Service & Support 2 years warranty
Service & Support Details Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 95%
Dimensions & Weight
Width 17.5 in
Depth 25.2 in
Height 5.2 in
Weight 104.3 lbs
Dimensions & Weight (Shipping)
Shipping Width 59.8 in
Shipping Depth 50.8 in
Shipping Height 11.5 in
Shipping Weight 159.6 lbs
