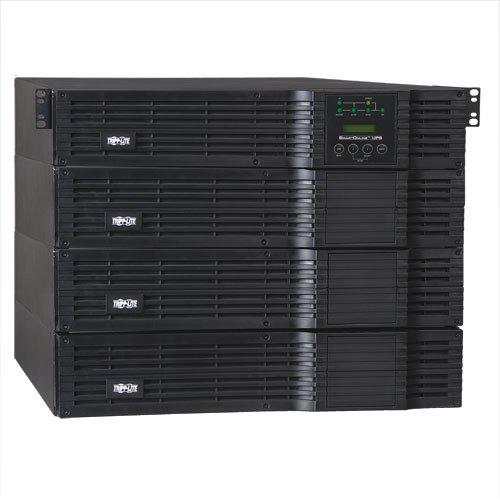

TrippLite 12000VA 8400W UPS Smart Online Rackmount 12kVA PDU 120V-240V 8U (SU12000RT4UHW)

TrippLite
No Reviews | Add Review

Share Today!


TrippLite 12000VA 8400W UPS Smart Online Rackmount 12kVA PDU 120V-240V 8U


Widget Not Available!!!

Overview

Tripp Lite's SU12000RT4UHW SmartOnline Hot-Swappable Modular Rack/Tower UPS System provides 12,000VA (12kVA) on-line, double-conversion UPS support for server, network and telecommunications equipment.
  • MacMall Part #: 8145434
  • Manufacturer Part #: SU12000RT4UHW
  • Platform: Universal



Tripp Lite's SU12000RT4UHW SmartOnline Hot-Swappable Modular Rack/Tower UPS System provides 12,000VA (12kVA) on-line, double-conversion UPS support for server, network and telecommunications equipment. Maintains battery-derived AC output during blackouts with active, full-time power conditioning. Fault-tolerant auto-bypass prevents unexpected service interruptions during overload or internal fault conditions. 4U power module and 4U external battery pack installs in 8 rack spaces (8U). Upright tower and two-post rackmount installation supported with optional accessories. Maintains full-time sine wave output within 3% of selectable 208/120 or 240/120V AC. Corrects brownouts and overvoltages from 65V to 140V (L-N). Expandable runtime with optional external battery packs. Converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC output with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types. Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs. Network-grade AC surge and noise suppression. Network management interfaces include combination DB9 RS-232 enabled and dry contact serial port, enhanced USB port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all three network interfaces. Includes PowerAlert monitoring software and complete cabling. Supports Emergency Power Off (EPO) via built-in interface. Front panel LEDs and LCD readout with scroll controls support visual monitoring of all major UPS functions. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Split-phase, four-conductor hardwire input. UPS supports hardwire output. Output hardwire connections are mounted on a detachable backplate with manual bypass switch to enable hot-swappable UPS replacement without powering off connected equipment. External battery packs are field replaceable and hot swappable. Attractive all-black color scheme. 2-year warranty and $250,000 connected equipment insurance; extended warranty and service contracts available.
Key Features

  • True on-line, double-conversion UPS provides pure, full-time sine wave AC output free of surges, voltage fluctuations and line noise
  • 12,000VA / 8400W output power capacity with dual voltage output of 208/120V or 240/120V
  • 4U high power density power module and 4U external battery pack support rackmount installation in 8 rack spaces (8U)
  • Dual conversion UPS actively converts raw input from AC to DC, then back to perfect sine wave AC output with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
  • Hardwire input and output terminals are mounted on a detachable backplate with manual bypass switch to enable hot-swappable UPS replacement without powering off connected equipment
  • Provides perfectly regulated, sine wave output power free of line noise, transient surges and frequency variation for the most efficient operation of critical servers, networking and telecommunications equipment
  • Maintains output within 3% of selected 208/120V or 240/120V nominal voltage during brownouts and overvoltages

  • Supports connected equipment during blackouts for 20/7 min. at half/full load levels; runtime is further expandable with optional external battery packs (Model BP192V18-4U)
  • Network interfaces support simultaneous communications via DB9 port, USB port and SNMPWEBCARD slot. DB9 port supports RS-232 and dry contact messaging. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
  • Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
  • Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, AC line frequency, timed inverter shutoff, activate self-test and output power control
  • Built-in Emergency Power Off (EPO) interface with cable
  • Supports hardwire output at 208V and 120V
  • Split phase, four-conductor hardwire input connection on included detachable PDU
  • Front panel LEDs and LCD readout with scroll button enables visual confirmation of all major UPS functions and current site electrical conditions
  • Front panel switches enable power on/off control, self-test and alarm cancel functions
  • Included adjustable mounting rails support installation in 4-post 19-in. rack enclosures
  • Optional 2-9USTAND tower stand set supports upright tower installation
  • Optional 2POSTRMKITWM accessory enables 2-post rackmount installation
  • Fault-tolerant auto-bypass maintains continuous utility output to connected equipment, even in cases where the UPS is overloaded or suffers an internal failure that requires service

    Product Details:
    • Output Volt Amp Capacity (VA): 12000
    • Output kVA capacity (kVA): 12
    • Output Watt Capacity (watts): 8400
    • Output kW capacity: 8.4
    • Output power factor: 0.7
    • Output Capacity Details: 12,000 VA (240V) / 10,395 VA (208V) / 8,400 watts (208/240V)
    • Crest Factor: 3:1
    • Nominal Output Voltage(s) Supported: 120v; 208v; 240v
    • Nominal Voltage details: 240/120V or 208/120V split phase output
    • Frequency compatibility: 60 Hz
    • Output voltage regulation (line mode): +/- 3%
    • Output voltage regulation (Economy line mode): +/- 10%
    • Output voltage regulation (Battery mode): +/- 3%
    • Built-in UPS output receptacles: Hardwire
    • Output AC waveform (AC mode): Sine wave
    • Output AC waveform (battery mode): Sine wave
    • Rated input current (at maximum load): 50A
    • Nominal Input Voltage(s) Supported: 208V AC / 120V AC (4 wire split single phase); 240V AC /120V AC (4 wire split single phase)
    • UPS input connection type: Hardwire
    • UPS input connection description: 4 wire split-phase input (L1, L2, N, G)
    • Recommended Electrical Service: 50A 208/240-120 Split Phase
    • Full load runtime (minutes): 7 min. (8400w)
    • Half load runtime (minutes): 20 min. (2400w)
    • Expandable battery runtime: Supports extended runtime with optional external battery packs
    • External battery pack compatibility: BP192V18-4U; BP192V557C-16K; BP192V787C-16K; BP192V1037C-16K; BP192V1407C-16K
    • DC system voltage: 192V DC
    • Battery recharge rate (included batteries): Less than 6 hours from 10% to 80%
    • Battery replacement description: Hot-swappable, user replaceable batteries
    • Voltage regulation description: Online, double-conversion power conditioning
    • Overvoltage correction: 3% output voltage regulation during overvoltages to 140 (measured L1-N : L2-N)
    • Undervoltage correction: 3% output voltage regulation during undervoltages to 65 (measured L1-N : L2-N)
    • LED Indicators: 6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options
    • Alarms: Unique audible alarms for all major UPS, environmental and power conditions (see manual)
    • Alarm cancel operation: Alarm cancel switch
    • Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module replacement
    • UPS AC suppression response time: Instantaneous
    • EMI / RFI AC noise suppression: Yes
  • Technical Specs

    General
    Device Type UPS - external
    Height (Rack Units) 4U
    Rack Size 19"
    Color Black
    Power Device
    UPS Technology On-line
    Input Voltage AC 120/208/240 V
    Input Connector(s) Hardwire
    Power Output Connectors Details Hardwire
    Output Voltage AC 120/208/240 V ± 3% ( 60 Hz )
    Power Capacity 8.4 kW / 12000 VA
    Output Waveform Sinewave
    Surge Suppression Yes
    Battery
    Voltage Provided 192 V
    Run Time (Up To) 7 min at full load
    Recharge Time 6 hours
    Networking
    Remote Management Interface RS-232
    Remote Management Protocol SNMP, HTTP
    Expansion / Connectivity
    Interfaces 1 x management (USB) ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off)
    Miscellaneous
    Cables Included 1 x USB cable ¦ 1 x serial cable
    Rack Mounting Kit Included
    Features Hot-swappable, on/off switch , audible alarm, emergency power off, LCD display, LED display, LED indicators, noise filtering, overvoltage protection, built-in bypass switch, undervoltage protection, cold-start function, cooling fan
    Compliant Standards FCC Class A certified, CSA, NOM, UL 1778, FCC Part 15, RoHS
    Software / System Requirements
    Software Included TrippLite PowerAlert
    OS Required Apple MacOS, Microsoft Windows
    Environmental Parameters
    Min Operating Temperature 32 °F
    Max Operating Temperature 104 °F
    Humidity Range Operating 0 - 95%
    Sound Emission 60 dBA
    Dimensions & Weight
    Width 17.5 in
    Depth 40.5 in
    Height 7 in
    Weight 86 lbs
