TrippLite 6000VA 5400W UPS Smart Online Rackmount 6kVA PDU 200-240V 4URM (SU6000RT4UHV)

TrippLite
No Reviews | Add Review

Share Today!


TrippLite 6000VA 5400W UPS Smart Online Rackmount 6kVA PDU 200-240V 4URM


Widget Not Available!!!

Overview

6KVA UPS SMART ONLINE 4U RM 200-240VTripp Lite EZ-series SU6000RT4UHV 6000VA / 6kVA / 5400 watt on-line, double-conversion UPS system offers complete power protection for critical server.
  • MacMall Part #: 8144574
  • Manufacturer Part #: SU6000RT4UHV
  • Platform: Universal

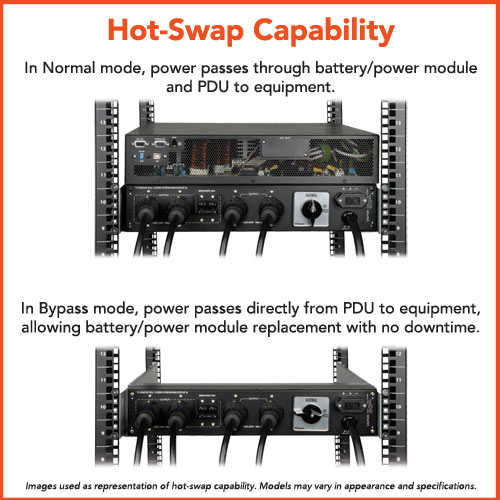

Tripp Lite EZ-series SU6000RT4UHV 6000VA / 6kVA / 5400 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a single 4U rack/tower compatible housing. Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Detachable back panel PDU with manual bypass switch supports hot-swappable whole UPS replacement with no interruption to connected equipment. Single all-in-one rack / tower housing installs in only 4 rack spaces (4U) with a maximum installed depth of only 20.7 in. / 52.6cm.

Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low 100V and overvoltages as high as 300V. Expandable runtime is supported with optional BP192V12-3U external battery packs. Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement. Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types.

Highly efficient operation in optional economy mode significantly reduces BTU heat output and operating energy costs. Network-grade AC surge and noise suppression. Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Included PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted. Supports Emergency Power Off (EPO) via built-in interface. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS for a variety of control options to support advanced UPS settings and configurations. LED / LCD display panel rotates for viewing in rackmount or tower configurations. L6-30P input plug. UPS supported outlets include two L6-30R and two L6-20R outlets. External battery packs are field replaceable and hot swappable.

Product Details:

  • Device Output Connector Type:    Power NEMA L6-20 , Power NEMA L6-30
  • Battery Load Type: At full load
  • Recharge Time: 6 hour(s)
  • Run Time (Up To): 2 min
  • Power Output Connector Qty: 2
  • Connector Type: Power NEMA L6-20
  • Connector Type: Power NEMA L6-30
  • Connector Type: 4 pin USB Type B
  • Interface: USB Qty: 1
  • Connector Type: 9 pin D-Sub (DB-9)
  • Interface: RS-232
  • Interface: EPO (emergency power off)
  • Cable Connectivity Details Length: 10 ft
  • Connectivity Details Type: Power cable
  • Connectivity Details Type: USB cable
  • Connectivity Details Type: Serial cable
  • Sound Emission: 60 DBA
  • Compatibility: Mac , PC
  • Product Line: Tripp Lite SmartOnLine EZ-series
  • Compliant Standards: CSA , FCC Part 15 A , IEC 61000-4-5 , RoHS , UL 1778
  • Equipment Protection Value: 250000 US Dollars
  • Height (Rack Units): 4
  • Rack Size: 19"
  • Rack Size (metric): 48.3 cm
  • Remote Management Interface: RS-232
  • Remote Management Protocol: HTTP , SNMP
  • Circuit Protection: Circuit breaker
  • Form Factor (AG): External
  • Frequency Required: 50/60 Hz
  • Input Connector Qty: 1
  • Input Connector Type: Power NEMA L6-30 (4)
  • Power Capacity (VA): 6000 VA
  • Power Device Features (AG): Audible alarm , Automatic shut down , Built-in bypass switch , Cold-start function , Cooling fan , LED indicators , Noise filtering , Overvoltage protection , Undervoltage protection
  • Power Provided: 5.4 kW
  • Surge Suppression: Standard
  • UPS Output Waveform: Sinewave
  • UPS Technology: On-line
  • Voltage Provided: AC 200/208/220/230/240 V
  • Voltage Provided Margin: ± 2%
  • Voltage Required: AC 200/208/220/230/240 V




Technical Specs

General
Device Type UPS - external
Height (Rack Units) 4U
Rack Size 19"
Power Device
UPS Technology On-line
Input Voltage AC 200/208/220/230/240 V
Frequency Required 50/60 Hz
Input Connector(s) 1 x power NEMA L6-30
Power Output Connectors Details 2 x power NEMA L6-20 ¦ 2 x power NEMA L6-30
Output Voltage AC 200/208/220/230/240 V ± 2%
Power Capacity 5.4 kW / 6000 VA
Output Waveform Sinewave
Surge Suppression Yes
Circuit Protection Circuit breaker
Battery
Run Time (Up To) 2 min at full load
Recharge Time 6 hours
Networking
Remote Management Interface RS-232
Remote Management Protocol SNMP, HTTP
Expansion / Connectivity
Interfaces 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off)
Miscellaneous
Cables Included 1 x power cable - integrated - 10 ft ¦ 1 x USB cable - external ¦ 1 x serial cable - external
Equipment Protection Value 250000 US Dollars
Features Audible alarm, LED indicators, noise filtering, overvoltage protection, built-in bypass switch, undervoltage protection, cold-start function, cooling fan, automatic shut down
Compliant Standards CSA, IEC 61000-4-5, UL 1778, RoHS, FCC Part 15 A
Software / System Requirements
Software Included TrippLite PowerAlert
Manufacturer Warranty
Service & Support 2 years warranty
Service & Support Details Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 95%
Sound Emission 60 dBA
Dimensions & Weight
Width 17.5 in
Depth 20.7 in
Height 6.9 in
Weight 108 lbs
Dimensions & Weight (Shipping)
Shipping Width 23.6 in
Shipping Depth 29.1 in
Shipping Height 12.7 in
Shipping Weight 158.1 lbs
