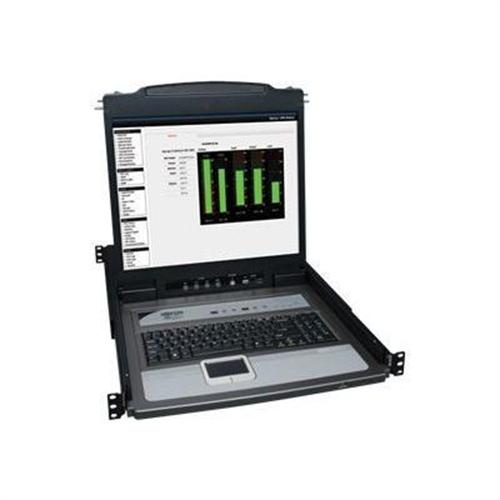

TrippLite 8-Port Rack Console KVM Switch 19" LCD PS2/USB Cable 1U TAA/GSA (B020-U08-19KTAA)

TrippLite
No Reviews | Add Review

Share Today!


TrippLite 8-Port Rack Console KVM Switch 19" LCD PS2/USB Cable 1U TAA/GSA

Widget Not Available!!!

Overview

8-port Console KVM Switch with 19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines an 8 port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space.
  • MacMall Part #: 8235235
  • Manufacturer Part #: B020-U08-19KTAA
  • UPC: 027242624221
  • Platform: Universal



Tripp Lite's 8-port Console KVM Switch with 19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines an 8 port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 504 computers from this single console by daisy-chaining additional 16 port KVM switches (model B022-U16). Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Includes eight, six foot Combo cable kits, which allow connection to either PS/2 or USB servers...no adapters needed. Includes a console cable kit that plugs into the port on the back of the unit, providing an extra HD15, (2) USB and (2) PS/2 ports that can be used to connect a Tripp Lite B051-000 IP Remote Access Unit or an external console. Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and the other for attachment of USB peripherals, such as a flash drive, external hard drive, etc. to be shared between connected servers. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchase. 1 year limited warranty.

Key Features:
  • Integrated KVM console with 19 in. LCD
  • Includes (x8) P778-Series USB/PS2 Combo KVM Cable Kits
  • Come with an external console port and console cable kit, allowing an external local console (PS/2 or USB) or external IP access device (model B051-000) to be connected to the KVM
  • Features two additional USB ports; one for connecting an external mouse/keyboard, and the other for sharing USB peripherals between connected computers
  • Multiplatform support: supports Windows (2000, XP, Vista, Server 2008, 7), Linux, Mac and Sun
  • Supports multimedia USB keyboards for PC, Mac and Sun
  • Daisy-chain up to 31 additional B022-U16 KVM switches to connect up to 504 computers
  • Daisy-chained station position is automatically sensed and displayed on the Station ID LED, eliminating the need for manual DIP switch settings
  • Multi-language OSD can be displayed in English, Spanish, French, German, and Japanese
  • Select a computer via push-buttons, Hotkeys or On Screen Display (OSD) menus
  • Auto-scan feature allows for continuous scanning of multiple computers
  • Hot Pluggable: add/remove computers without powering down the KVM switch
  • Two level password security: only authorized Users can view and control the connected computers (up to four Users and one Administrator)
  • Superior video quality: console supports resolutions up to 1280 x 1024 (60Hz)
  • Rackmountable in a 19 in. rack system (1U)
  • Firmware upgradeable
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • 1 year limited warranty

System Requirements:
  • PS/2 or USB computer
  • P778-Series PS2/USB Combo KVM Cable kit is required for each connected computer/server
  • Supports Windows (2000, XP, Vista, Server 2008, 7), Linux, Mac and Sun
Product Details:
  • # Of Users 1
  • Console Yes
  • Port Control Push Buttons, Hotkeys, OSD
  • Max CPU 504
  • Unit Dimensions (HWD/in.) 1.75 x 17 x 27
  • IP Remote Access YES WITH B050-000 OR B051-000?
  • Unit weight (lbs) 30.6
  • Mounting accessories included Yes
  • Color Black
  • Style 1U Rackmount
  • LCD Monitor (in.) 19
  • Relative Humidity 0 to 80% RH, Non-condensing
  • Operating Temperature 32 Degrees F to 120 Degrees F (0 to 50 C)
  • Storage Temperature -4 Degrees F to 140 degrees F (-20 to +60 C)
  • Ports 8
  • Computer/Server Ports (x8) HD18 (Female)
  • Daisy-Chain Port DB25 Male
  • Firmware Upgrade Port RJ45 Female
  • Included Cable (Side A) - Connector 1 HD18 Male
  • Included Cable (Side B) - Connector 1 HD15 Male
  • Included Cable (Side B) - Connector 2 PS/2 Male
  • Included Cable (Side B) - Connector 3 PS/2 Male
  • Included Cable (Side B) - Connector 4 USB A Male
  • Other Ports - Port 1 USB A for Optional USB Keyboard/Mouse connection
  • Other Ports - Port 2 USB A for USB peripheral connection (e.g. Flash drive)
  • Remote Console Port PS2/USB Combo Console Cable Kit w/VGA, (x2) PS2 & (x2) USB Female connectors

Technical Specs

General
Display Type KVM console / TFT active matrix
Diagonal Size 19"
Aspect Ratio 5:4
Native Resolution 1280 x 1024 at 60 Hz
OSD Languages English, German, French, Spanish, Japanese
Color Black
Dimensions (WxDxH) 17 in x 27 in x 1.7 in
Height (Rack Units) 1U
Weight 30.6 lbs
Input
Type Keyboard, touchpad
KVM
Type KVM switch - 8 ports
Keyboard / Mouse Interface PS/2
Max Resolution 1280 x 1024 @ 60 Hz
Max Cascading Depth 504
Features IP-based user connection
Connectivity
Interfaces 8 x KVM ( SPHD-18 ) ¦ 2 x USB ¦ Network ( RJ-45 ) ¦ Stacking ( DB-25 ) ¦ VGA ¦ 2 x keyboard ( PS/2 )
Miscellaneous
Features Administrator password
Cables Included 8 x keyboard / mouse / video / USB cable - 6 ft ¦ 1 x serial cable
Rack Mounting Kit Included
Compliant Standards UL, cUL, FCC, RoHS
Power
Power Supply Internal
Software / System Requirements
Included Software Drivers & Utilities
OS Required Apple MacOS, SunOS, Linux, Microsoft Windows 2000/XP/Vista/7, Microsoft Windows Server 2008
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 0 - 80%
