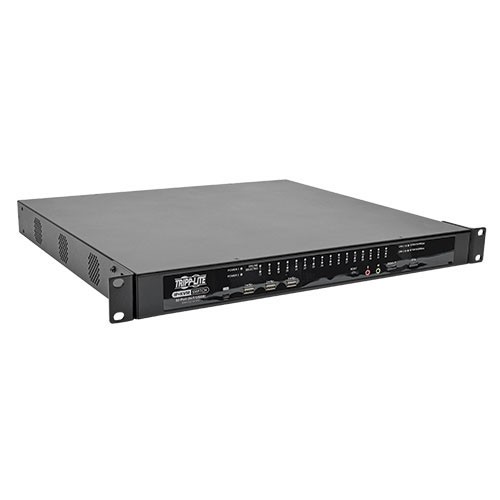

TrippLite NetDirector Cat5 IP KVM Switch - KVM switch - PS/2, USB - CAT5 - 32 x KVM port(s) - 1 local user - 4 IP users - desktop (B064-032-04-IPG)

No Reviews | Add Review

Share Today!

TrippLite NetDirector Cat5 IP KVM Switch - KVM switch - PS/2, USB - CAT5 - 32 x KVM port(s) - 1 local user - 4 IP users - desktop

Widget Not Available!!!


Tripp Lite NetDirector Cat5 IP KVM Switch - KVM switch - PS/2, USB - CAT5 - 32 x KVM port(s) - 1 local user - 4 IP users - desktop
  • MacMall Part #: 8088482
  • Manufacturer Part #: B064-032-04-IPG
  • UPC: 037332151520
  • Platform: Universal

Tripp Lite's 32-port NetDirector Cat5 IP KVM switch is the optimal solution for remotely controlling multiple computers (combination of PS/2, USB and serial) by up to 5 (1 local and 4 remote) independent, simultaneous users. A single unit occupies a mere 1U of rack space, yet can control up to 32 directly connected computers, and a maximum of 512 computers when a second level of B064-016 KVM switches are cascaded. A full-screen graphical OSD with multi-level authentication (super administrator, administrator and user) allows you to quickly and efficiently manage your installation. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows-based log server or Syslog server.Accessing the connected computers is a breeze; view multiple computers at the same time using panel array mode, automatically sync USB mice, access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Other features include dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing.

Technical Specs

Device Type KVM switch - 32 ports
Enclosure Type Desktop - 1U
Subtype KVM
Ports 32 x KVM port(s)
KVM Local Users Qty 1 local user
KVM IP Users Qty 4 IP users
Server Connection Via Twisted Pair CAT5
Keyboard / Mouse Interface PS/2, USB
Encryption Algorithm DES, RSA, SSL, 256-bit AES
Authentication Method RADIUS, LDAP, Active Directory
Max Resolution 1600 x 1200 @ 60 Hz
Features On-Screen Display, firmware upgradable
Status Indicators Port status, power
Expansion / Connectivity
Interfaces 32 x KVM - RJ-45 ¦ 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 3 x USB - Type A ¦ 1 x console - RJ-45 ¦ 1 x KVM
Power Device Internal power supply
Voltage Required AC 120/230 V
Color Black
Cables Included 1 x keyboard / mouse / video cable ¦ 1 x serial adapter
Rack Mounting Kit Included
Compliant Standards UL, cUL, FCC
TAA Compliant Yes
Dimensions & Weight
Width 17 in
Depth 16 in
Height 1.7 in
Weight 16.98 lbs
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 0 - 80%
