Entire network control system in just 1U of rack space; includes keyboard, 19" LCD screen and touch pad
MacMall Part #: 7314619
Manufacturer Part #: B021-000-19

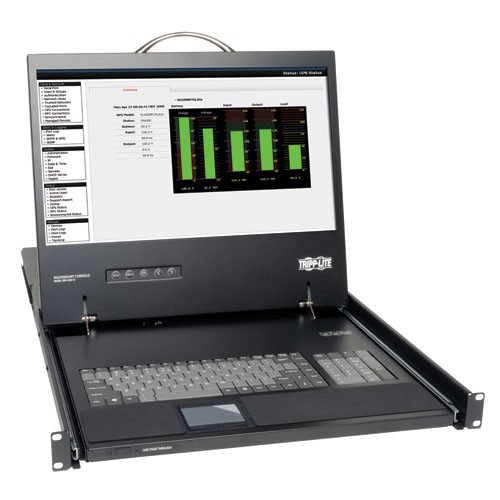

Easy to install and simple to operate, Tripp Lite's B021-000-19 Rackmount Console is the smart solution for controlling a computer, server or KVM switch in IT applications where rack space is at a premium. The console is housed in a sliding, heavy-duty 1U drawer that stores neatly in the rack when not in use. The B021-000-19's heavy-duty all-metal construction, high-quality 19-in. LCD, premium connectors, uncomplicated controls and broad compatibility ensure trouble-free operation in demanding high-availability environments.
All-in-One Control Solution The B021-000-19 combines a full keyboard, numeric keypad, touchpad and 19-in. color LCD in a 1U rack drawer for compact storage and easy access. No server-resident software is required, so server performance and reliability are never compromised. The B021-000-19 is also compatible with most PS/2 and USB KVM switches, making it easy to integrate with an existing system.
Space-Saving Design The B021-000-19 can be mounted in racks with depths ranging from 27 to 42 inches (rackmounting hardware included). The console is housed in an all-metal 1U sliding drawer. Simply pull it out and flip up the screen when needed, and store it back in the rack when finished. This keeps the keyboard and screen from blocking access to rack equipment when the console is not in use.
Supports Multiple Platforms The B021-000-19 supports both PS/2 and USB connections (USB to PS/2 adapter cable included). Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated, including UNIX®, Linux, Windows®, Mac OS®, Solaris™ and more. The B021-000-19 is also compatible with most KVMs that are equipped with PS/2 and USB console ports. This enables the B021-000-19 to be integrated into an existing system, providing enhanced management capabilities without a major investment in new hardware.
High-Resolution LCD The B021-000-19's 19-in. LCD screen supports video resolutions of up to 1280 x 1024 at 75Hz. DDC, DDC2 and DDC2B emulation allows the video settings of the connected computer to be automatically adjusted for optimal display on the console monitor.
Peace of Mind The B021-000-19 is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility. For peace of mind, it comes backed by a one-year warranty.
What's in the Box
B021-000-19 Rackmount Console
1 x PS/2 KVM Cable Kit
1 x USB to PS/2 Adapter Cable
1 x C13 to 5-15P Power Cord
Owner's Manual CD
KVM console / TFT active matrix
Widescreen - 5:4
1366 x 768
Vertical Refresh Rate
OSD-Digital Display Director
19 in x 25.6 in x 1.7 in
Height (Rack Units)
1 x keyboard / mouse / video - 15 pin HD D-Sub (HD-15)
Rack Mounting Kit
AC 120/230 V
Service & Support
1 year warranty
Service & Support Details
Limited warranty - 1 year
Min Operating Temperature
Max Operating Temperature
Humidity Range Operating
0 - 80%
