Entire network control system in just 1U rack space — includes keyboard, 17" LCD screen, touch pad, numeric keypad, and 8-port KVM switching capability.
MacMall Part #: 704291
Manufacturer Part #: B020-008-17

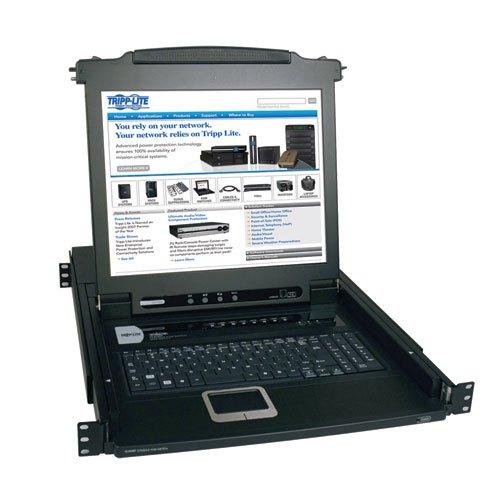

Tripp Lite's B020-008-17 NetDirector™ 8-Port Rackmount Console KVM Switch is the smart solution for controlling multiple computers and servers in IT applications. It combines a keyboard, touchpad, 17-in. color LCD and 8-port KVM switch in a 1U, heavy-duty steel rack drawer for compact storage and easy access without compromising control over connected servers. The heavy-duty steel enclosure, high-quality LCD, premium connectors and uncomplicated controls ensure trouble-free operation in demanding high-availability environments. The B020-008-17 can control eight servers/computers directly, or up to 504 by daisy-chaining additional KVM switches. It is compatible with both PS/2 and USB computers using Tripp Lite P774-series (PS/2) and P776-series (USB) KVM cable kits, and accepts connection of an IP remote access unit for access to servers/computers via LAN, WAN or Internet.
All-in-One Network Management for Critical Systems The B020-008-17 offers a complete network management solution. It combines an 8-port KVM switch, keyboard, touch pad, numeric keypad and 17-in. LCD in a compact housing that stores neatly in a 1U rack drawer and pulls out when needed. No server-resident software is required, so server performance and reliability are never compromised. Hot pluggable functionality enables servers or computers to be added or removed with no need to power down the KVM switch or disrupt the entire system. Upgradable firmware fine-tunes compatibility with emerging standards.
Supports Multiple Platforms The B020-008-17 supports both PS/2 and USB connections (Tripp Lite P774-Series PS/2 and P776-series USB KVM cable kits required; two 6-ft. PS/2 cable kits included; USB cable kits available separately). Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated. Connect multiple versions of multiple platforms in any combination, including Windows®, UNIX®, Linux and more.
Simple, Flexible Network Control The B020-008-17 is designed to ease multi-server management in data centers, server rooms and other high-density environments. BIOS-level access allows network administrators to solve complex problems efficiently and restore service before downtime affects productivity. An advanced on screen display (OSD) with high-resolution VGA video up to 1280 x 1024 provides a graphical user interface with management tools including custom port labeling, auto-scanning and panel array mode. Users may also select a connected computer using on-console pushbuttons or keyboard hotkey commands. Two LEDs per KVM port indicate (1) when a computer is connected to a KVM port and powered on, and (2) when a computer is selected.
Control Hundreds of Servers The B020-008-17 is capable of controlling up to 504 servers/computers by daisy-chaining additional KVMs (Tripp Lite model B022-U16). This gives network managers the flexibility to add capacity when it's needed, accommodating growing data center requirements without disrupting existing equipment. When daisy-chained, the B020-008-17 auto-senses its station position in the installation with no need for manual DIP switch settings A front-panel LED indicates station position.
Access Servers Anywhere with IP Remote Access Accessory With the addition of an optional IP remote access unit (Tripp Lite model B051-000, sold separately), the B020-008-17 provides secure IP remote access to connected servers/computers without requiring additional rack space. IP remote access enables system administration, BIOS-level troubleshooting, GUI application installations, equipment reboots and more to be accomplished from any location using a standard Web browser or multi-platform client software. A modem port provides optional out-of-band dial-up access to equipment when the network or Internet connection goes down. The B051-000 also supports USB virtual media access.
Secure Every Connection The B020-008-17 offers two levels of password protection (administrator/user) to prevent unauthorized persons from gaining access to connected servers/computers. IP remote access (if provided by the optional IP remote access unit) is further protected with security features including password protection, advanced encryption, bandwidth-optimized video and detailed activity logging.
Peace of Mind The B020-008-17 is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility. For peace of mind, it comes backed by a one-year warranty.
What's in the Box
B020-008-17 Rackmount Console KVM Switch
2 x 6-ft. PS/2 KVM Cable Kits (Tripp Lite model P774-006)
1 x RJ11 to DB9 Firmware Upgrade Cable
1 x 6-ft. C13 to 5-15P Power Cord
Owner's Manual CD & Quick Start Guide
KVM switch - 8 ports - stackable
Rack-mountable - 1U
8 x KVM port(s)
KVM Local Users Qty
1 local user
Keyboard / Mouse Interface
1280 x 1024
Keyboard, touchpad, display
Expansion / Connectivity
8 x KVM - HD-15 ¦ 1 x network stack device - DB-25 ¦ 1 x RJ-11 - management ¦ 1 x mouse (PS/2) ¦ 1 x keyboard (PS/2) ¦ 1 x VGA - HD-15
