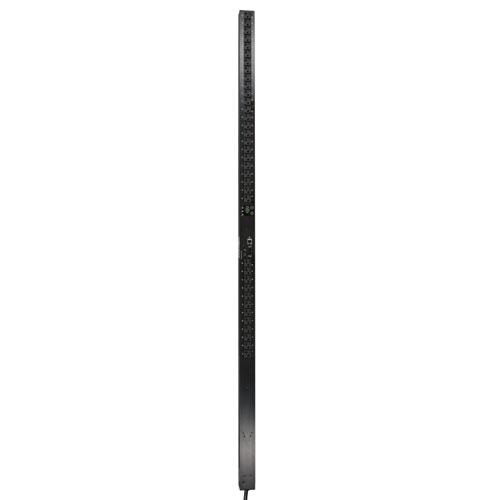

TrippLite PDU 3-Phase Monitored 120V 5.7kW L21-20P 36 5-15/20R 0URM (PDU3VN3L2120LV)

TrippLite
No Reviews | Add Review

Share Today!


TrippLite PDU 3-Phase Monitored 120V 5.7kW L21-20P 36 5-15/20R 0URM

Widget Not Available!!!

Overview

PDU3VN3L2120LV Monitored 3 phase 208V Zero U vertical rack PDU supports 5.7kW total output capacity. Includes 3 ft. / .9m input cord with NEMA L21-20P 20A (3P+N+E) 208V 3 phase input plug and 36 120V outlets arranged in 3 single phase output load banks.
  • MacMall Part #: 8278120
  • Manufacturer Part #: PDU3VN3L2120LV
  • Platform: Universal



PDU3VN3L2120LV Monitored 3 phase 208V Zero U vertical rack PDU supports 5.7kW total output capacity. Includes 3 ft. / .9m input cord with NEMA L21-20P 20A (3P+N+E) 208V 3 phase input plug and 36 120V outlets arranged in 3 single phase output load banks. Each output loading bank contains 12 NEMA 5-15/20R outlets. Visual meter with scroll button and PowerAlert remote monitoring interface enables real-time current monitoring for each output phase. Supports 0U vertical rackmount installation with included mounting accessories. Toolless button-mount installation supported in compatible racks. Included cord retention brackets keep vital network equipment plugged in and continuously powered.

Tripp Lite 3 phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via secure web, SNMP or Telnet interface and whole rack AC power distribution. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU output current consumption in amps is displayed per-phase via front panel lighted digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers trip. Supports in-rack environmental and security monitoring for advanced configurations with optional ENVIROSENSE temperature / humidity probe and rack access notification for up to 4 door sensors (SRSWITCH) or other user-supplied contact-closure sensors. Lighted display with scroll-button offers power consumption in amps for all 3 loading banks, IP-address self-identification and 180 degree display rotation for overhead or raised floor power feeds. Supports real-time monitoring of all reported functions with support for user-specified alarm and notification thresholds. Fully compatible with PowerAlert Network Management System / NMS Software, available via FREE download from www.tripplite.com

Key Features:
  • 5.7kW 3 phase 208V Monitored Power Distribution Unit (PDU) with built-in web/network interface
  • Attached NEMA L21-20P 20A (3P+N+E) 208V 3 phase input plug with 3 ft. / .9m cord
  • 0U, 70 inch / 178cm vertical form factor supports installation in 2 or 4 post equipment racks
  • 36 total NEMA 5-15/20R 120V outlets arranged in three single phase output load banks
  • Lighted display with scroll-button offers power consumption in amps for all 3 loading banks, IP-address self-identification and 180 degree display rotation for overhead or raised floor power feeds.
  • Built-in SNMP/ethernet interface reports voltage, frequency and PDU loading per-phase via network or secure web browser interface
  • Supports logging of all power events with user specified alarm and notification thresholds for load levels and site voltage conditions
  • Supports in-rack environmental and security monitoring for advanced configurations with optional ENVIROSENSE temperature / humidity probe and rack access notification for up to 4 door sensors (SRSWITCH) or other user-supplied contact-closure sensors.
  • DHCP/Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned a static IP addresses
  • 10/100 Mbps auto-sensing allows optimal communication compatibility with your current 10/100 Base-T network
  • Real-time clock backup maintains the time of day and date even if the PDU is shut down and unpowered
  • Tiered access privileges allow an administrator and a guest to log into the web browser for monitoring all PDUs
  • Alert notifications via email or SNMP traps give users the added advantage of having an immediate event notification
  • Firmware upgrade ability supports future product enhancements.
  • Protocols supported include HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP
  • Fully compatible with PowerAlert Network Management System / NMS Software, available via FREE download from www.tripplite.com
  • Included cord retention brackets keep vital network equipment plugged in and continuously powered
  • Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications
Typical Applications:
  • Ideal for 3 phase network configurations in datacenters and heavily configured equipment racks

Technical Specs

General
Device Type Power distribution unit - rack-mountable
Height (Rack Units) 0U
Power Device
Input Voltage 208 V
Input Wiring 3-phase
Input Connector(s) Power NEMA L21-20
Power Output Connectors Details 30 x power IEC 320 EN 60320 C13 ¦ 6 x power IEC 320 EN 60320 C19
Output Voltage 120 V
Max Electric Current 9.2 A
Power Capacity 5.7 kW / 5700 VA
Networking
Remote Management Interface Ethernet 10/100
Remote Management Protocol SNMP 1, SNMP 2, Telnet, HTTP, HTTPS, FTP, SSH
Miscellaneous
Included Accessories Cable retention brackets
Cables Included 1 x power cable - 3 ft
Rack Mounting Kit Included
Features Voltage monitoring, current meter, overload protection, vertical orientation, AC frequency monitoring, data-logging, email alerts support, firmware upgradable
Compliant Standards NOM, RoHS, UL 60950-1
Manufacturer Warranty
Service & Support 2 years warranty
Service & Support Details Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 0 - 95% (non-condensing)
Dimensions & Weight
Width 2.2 in
Depth 3.3 in
Height 70.1 in
Weight 7.7 lbs
Dimensions & Weight (Shipping)
Shipping Width 9.3 in
Shipping Depth 75.6 in
Shipping Height 6.6 in
Shipping Weight 17 lbs
