PDU3VSR10L2120 Switched 3 phase 208V Zero U vertical rack PDU supports 5.7kW total output capacity. Includes 10 ft. / 3m input cord with NEMA L21-20P 20A (3P+N+E) 208V 3 phase input plug and 24 208V individually controllable outlets.
MacMall Part #: 8275505
Manufacturer Part #: PDU3VSR10L2120

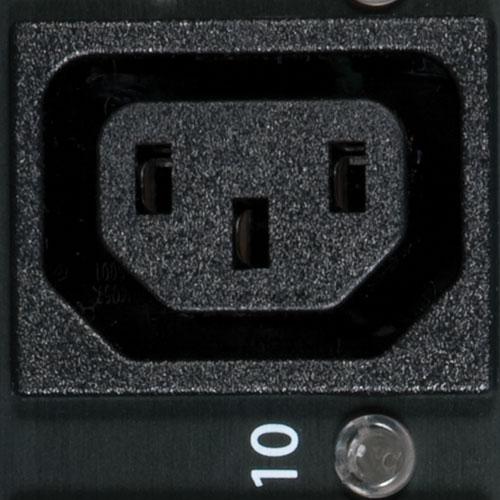

PDU3VSR10L2120 Switched 3 phase 208V Zero U vertical rack PDU supports 5.7kW total output capacity. Includes 10 ft. / 3m input cord with NEMA L21-20P 20A (3P+N+E) 208V 3 phase input plug and 24 208V individually controllable outlets arranged in 3 single phase output load banks. Each single-phase output loading bank contains 8 outlets (7 C13, 1 C19). Visual meter with scroll button and PowerAlert remote monitoring interface enables real-time current monitoring for each output phase or individual receptacle. Supports 0U vertical rackmount installation with included mounting accessories. Toolless button-mount installation supported in compatible racks. Included cord retention brackets keep vital network equipment plugged in and continuously powered.
Product Type: PDU
Dimensions: 70" Height x 2.19" Width x 3.26" Depth
Input Voltage: 208 V AC Three-phase
Output Voltage: 208 V AC Single-phase
Current: 16 A Maximum Input Current
Form Factor: Zero U Vertical Rackmount
Input Receptacles: NEMA L21-20P
Product Model: PDU3VSR10L2120
Output Receptacles: 3 x IEC 60320 C19, 21 x IEC 60320 C13
Power Cord/Cable: 10 ft
Product Series: Switched
Power Rating: 5.70 kVA
Frequency: 50 Hz
Power distribution unit - rack-mountable
Height (Rack Units)
AC 208 V
Power NEMA L21-20
Power Output Connectors Details
21 x power IEC 320 EN 60320 C13 ¦ 3 x power IEC 320 EN 60320 C19
Max Electric Current
5.7 kW / 5700 VA
Remote Management Interface
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, HTTP, HTTPS, FTP, SSH
Cable retention brackets
1 x power cable - 10 ft
Rack Mounting Kit
Emergency power off, thermal monitoring, voltage monitoring, current meter, overload protection, vertical orientation, AC frequency monitoring, data-logging, email alerts support, firmware upgradable, remote ON/OFF function, remote reset function
NOM, RoHS, UL 60950-1
Service & Support
2 years warranty
Service & Support Details
Limited warranty - 2 years
Humidity Range Operating
0 - 95% (non-condensing)
Dimensions & Weight
Dimensions & Weight (Shipping)
