TrippLite PDU 3-Phase Switched 208V 8.6kW IEC-309 21 C13; 3 C19 0URM (PDU3VSR10G30)

TrippLite
No Reviews | Add Review

Share Today!


TrippLite PDU 3-Phase Switched 208V 8.6kW IEC-309 21 C13; 3 C19 0URM

Widget Not Available!!!

Overview

Tripp Lite Switched PDUs reliably distribute AC power from a UPS system, generator or utility wall outlet to multiple devices. A built-in network interface allows users to remotely control individual outlets (and connected devices) via SNMP, Web or Telnet
  • MacMall Part #: 8275502
  • Manufacturer Part #: PDU3VSR10G30
  • Platform: Universal



Tripp Lite Switched PDUs reliably distribute AC power from a UPS system, generator or utility wall outlet to multiple devices. A built-in network interface allows users to remotely control individual outlets (and connected devices) via SNMP, Web or Telnet. This feature reduces the frequency of costly service calls by enabling remote reboot of locked devices. It can also be used to extend the runtime of critical devices by allowing users to turn off nonessential devices during a blackout. Each model features one or more digital load meters that help you maximize the amount of devices that can be safely added to the PDU (without overloading it) by displaying the total power consumption of connected equipment. High-quality plug/outlet connections and a switch-free design prevent the PDU from being accidentally disconnected or shut down. Versatile all-metal cabinets with detachable mounting hardware accommodate a variety of mounting options: wallmount, under-counter and 19-inch rackmount mounting in 1U and/or zero-U formats.

Product Details:
  • Device Type: Power distribution unit, rack-mountable
  • Height (Rack Units): 0U
  • Width: 70.1 in
  • Depth: 2.2 in
  • Height: 3.3 in
  • Weight: 14.3 lbs
  • Power Device
  • Input Voltage: AC 208 V
  • Frequency Required: 60 Hz
  • Input Connector(s): 1 x power IEC 309 EN 60309 30A

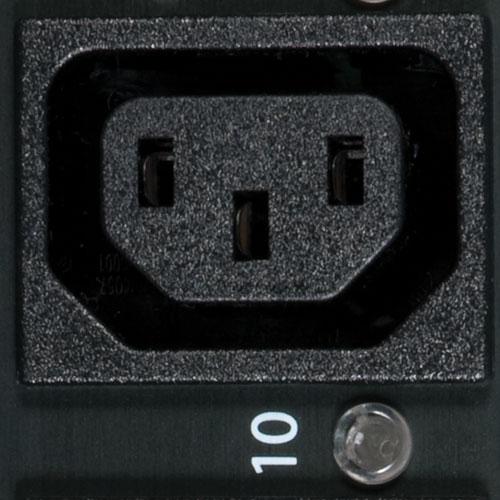

  • Power Output Connectors Details: 21 x power IEC 320 EN 60320 C13 , 3 x power IEC 320 EN 60320 C19
  • Max Electric Current: 24 A
  • Power Provided: 8600 VA
  • Surge Suppression: Included
  • Circuit Protection: Circuit breaker
  • Network Remote Management Interface: Ethernet 10/100
  • Remote Management Protocol: SNMP 1, SNMP 2, SNMP, Telnet, HTTP, HTTPS, FTP, SSH
  • Cables Included: 1 x power cable, 10 ft
  • Rack Mounting Kit: Included
  • Features: Current meter, LED indicators
  • Compliant Standards: NOM, RoHS, UL 60950-1

Technical Specs

General
Device Type Power distribution unit - rack-mountable
Height (Rack Units) 0U
Power Device
Input Voltage AC 208 V
Frequency Required 60 Hz
Input Connector(s) 1 x power IEC 309 EN 60309 30A
Power Output Connectors Details 21 x power IEC 320 EN 60320 C13 ¦ 3 x power IEC 320 EN 60320 C19
Max Electric Current 24 A
Power Capacity 8600 VA
Surge Suppression Yes
Circuit Protection Circuit breaker
Networking
Remote Management Interface Ethernet 10/100
Remote Management Protocol SNMP 1, SNMP 2, SNMP, Telnet, HTTP, HTTPS, FTP, SSH
Miscellaneous
Cables Included 1 x power cable - 10 ft
Rack Mounting Kit Included
Features Current meter, LED indicators
Compliant Standards NOM, RoHS, UL 60950-1
Manufacturer Warranty
Service & Support 2 years warranty
Service & Support Details Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 0 - 95% (non-condensing)
Dimensions & Weight
Width 70.1 in
Depth 2.2 in
Height 3.3 in
Weight 14.3 lbs
Dimensions & Weight (Shipping)
Shipping Width 75.6 in
Shipping Depth 6.6 in
Shipping Height 9.3 in
Shipping Weight 21.6 lbs
