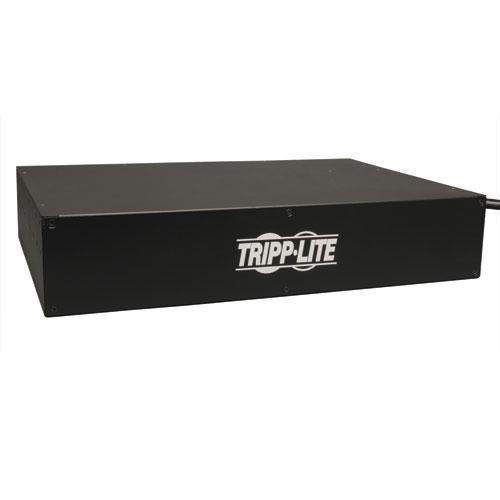

TrippLite PDU Switched 208V - 240V 30A 8 C13; 6 C19 L6-30P Horizontal 2URM (PDUMH30HV19NET)

TrippLite
No Reviews | Add Review

Share Today!


TrippLite PDU Switched 208V - 240V 30A 8 C13; 6 C19 L6-30P Horizontal 2URM


Widget Not Available!!!

Overview

PDUMH30HV19NET Switched 2U rack PDU supports 30A maximum capacity at 208/240V (agency de-rated to 24 amps). Includes attached L6-30P input plug and 14 switched outlets (8 C13 and 6 C19). Supports 2U rackmount installation in 19 inch rack enclosures.
  • MacMall Part #: 8159028
  • Manufacturer Part #: PDUMH30HV19NET
  • Platform: Universal



PDUMH30HV19NET Switched 2U rack PDU supports 30A maximum capacity at 208/240V (agency de-rated to 24 amps). Includes attached L6-30P input plug and 14 switched outlets (8 C13 and 6 C19). Visual and remote current monitoring tracks total output current with options for display and monitoring load information separately on C13 and C19 load banks. Supports 2U rackmount installation in 19 inch rack enclosures. 2POSTRMKITWM enables installation in 2 post relay racks. Included cord retention brackets keep vital network equipment plugged in and continuously powered.

Tripp Lite Switched, Metered Rack Power Distribution Units enable a variety of advanced network control and monitoring functions by giving IT Managers the ability to turn on, turn off, recycle or lock-out power to each individual receptacle and remotely monitor PDU power consumption and in-rack environmental conditions. Switched PDU systems can be accessed, configured and controlled through secure web, SNMP or Telnet Interface. Individually switched outlets can be controlled via a built-in web/network interface, enabling remote reboot of unresponsive network hardware. User defined power-up and power-down outlet sequences ensure proper operation of interdependent IT systems and prevent inrush-related overloads as devices are powered on. Programmable load-shedding of less critical devices at user-defined intervals extends UPS uptime in response to power failures. Unused PDU outlets can be electronically locked-off to prevent powering of unauthorized hardware. PDU power consumption (current) is displayed locally and can be monitored via the web/network interface, with user-defined alarms to warn of potential overloads before critical IT mains or branch breakers trip. Optional ENVIROSENSE temperature/humidity probe enables remote monitoring of in-rack environmental conditions and alarms for up to 3 SRSWITCH door access sensor and other contact-closure sensors. Supports real-time monitoring, notification and logging of all on-board reporting functions with user-specified alarm thresholds and actions for each reported condition. Switched PDU systems can be accessed, configured and controlled through secure web, SNMP or Telnet Interface.
  • 2U rackmount switched PDU with digital current monitoring, remote control and temperature / humidity montitoring capability
  • 208/240V 30A maximum total capacity with L6-30P input plug and 14 controllable outlets (8 C13, 6 C19)
  • Enables ability to turn on, turn off, recycle or lock-out power to each individual outlet
  • Programmable or real-time outlet power control via built-in web/network monitoring and control card
  • Automatic sequential outlet turn-on prevents inrush-related equipment interaction on startup
  • Cord retention brackets keep vital equipment plugs connected
Key Features:
  • 208/240V 30A maximum capacity (agency de-rated to 24 amps) Switched Power Distribution Unit (PDU) with built-in web/network interface in 2U rackmount form factor
  • L6-30P input plug; 8 C13 and 6 C19 controllable outlets
  • Supports individually controllable output receptacles, current metering, network monitoring and remote control via built-in web/network monitoring and control card
  • Offers the ability to turn on, turn off, recycle or lock-out power to each individual PDU receptacle on a programmable or real-time basis
  • Switchable outlets enable a number of advanced networking abilities, such as remote reboot on-demand of locked IT equipment, custom power-on/power-off outlet sequencing, automatic load-shedding of optional loads during power failures and disabling unused outlets to prevent the connection of unauthorized equipment loads
  • Remote interface provides data regarding input power conditions, load level and individual outlet power status via secure network or web browser interface
  • Supports notification and logging of all major power events and user specified alarm thresholds
  • Optional ENVIROSENSE temperature and humidity probe enables remote monitoring of environmental conditions and the ability to report conditions from up to two contact-closure sensors
  • Optional ENVIROSENSE accessory also supports the connection of up to three SRSWITCH door access sensors or other contact-closure sensors to selectively notify, monitor and log reported conditions
  • DHCP/Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses
  • 10/100 Mbps auto-sensing allows optimal communication compatibility with your current 10/100 Base-T network
  • Real-time clock support maintains the time of day and date even if the PDU is shut down and unpowered
  • 2-tier level access allows an administrator and a guest to log into the web browser for monitoring and/or management of all intelligent PDUs and similarly equipped UPS systems
  • Alert notifications via email or SNMP traps give users the added advantage of having an immediate event notification
  • Protocols supported include HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP, NTP
  • Front panel ammeter with push-button toggle switch displays power consumption for all 3 loading segments (8 C13 outlets in bank 1, 6 C19 outlets in bank 2 and total load of bank 1&2 combined)
  • On initial power-up, outlets are automatically energized at 250 millisecond intervals to prevent inrush-related equipment interaction and mains circuit overloads
  • Included cord retention brackets keep vital network equipment plugged in and continuously powered
  • 2U rackmount installation supported in 4 post rack enclosures
  • Optional 2POSTRMKITWM enables installation in 2 post relay racks
Typical Applications:
  • Ideal for network configurations requiring a switched, metered and monitored PDU supporting individual outlet rebooting, load shedding and remote web/network current monitoring of critical networking components
Product Details:
  • Recommended Electrical Service: 208V, 240V
  • Maximum input amps: 30A maximum (Agency de-rated to 24A continuous)
  • Input connection type: L6-30P
  • Input cord length (ft.): 10 ft.
  • Front panel LEDs: 16 power availability LEDs confirm power off/on status for each built-in outlet. Two additional LEDs with toggle button identify which bank the visual current meter is reporting (bank 1, bank 2 or bank 1&2 combined)
  • Material of construction: Steel
  • Style: Rackmount
  • Form factors supported: 2U rackmount. Includes mounting accessories for 4 post installation, requires optional 2POSTRMKITWM for 2 post rackmount installation)
  • Relative Humidity: 0-95% non-condensing
  • SNMP compatibility: Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems. Remote management gives user ability to turn connected loads on or off individually
  • Certifications: Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant

Technical Specs

General
Device Type Power distribution unit - rack-mountable
Height (Rack Units) 2U
Power Device
Input Voltage AC 208/240 V
Input Connector(s) 1 x power NEMA L6-30
Power Output Connectors Details 8 x power IEC 320 EN 60320 C13 ¦ 6 x power IEC 320 EN 60320 C19
Output Voltage AC 208/240 V ( 50/60 Hz )
Max Electric Current 30 A
Circuit Protection Circuit breaker
Networking
Remote Management Interface Ethernet 10/100
Remote Management Protocol SNMP 1, SNMP 2, SNMP, Telnet, HTTP, HTTPS, FTP
Expansion / Connectivity
Interfaces 1 x network / management
Miscellaneous
Cables Included 1 x power cable - 10 ft
Rack Mounting Kit Included
Features Remote control , current meter, LED indicators
Compliant Standards RoHS, UL 60950-1
Environmental Parameters
Humidity Range Operating 0 - 95%
Dimensions & Weight
Width 17.5 in
Depth 12.5 in
Height 3.5 in
Weight 13.9 lbs
Dimensions & Weight (Shipping)
Shipping Width 44.5 in
Shipping Depth 31.7 in
Shipping Height 8 in
Shipping Weight 17.2 lbs
