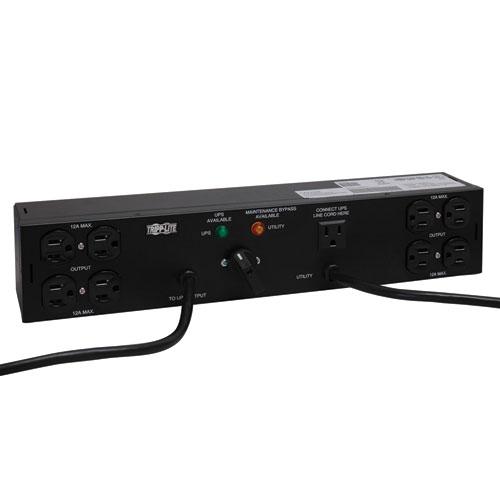

TrippLite PDU Dual Source Hot Swap 100-127V 12A 8 5-15R Horizontal 2URM (PDUB15)

TrippLite
No Reviews | Add Review

Share Today!


TrippLite PDU Dual Source Hot Swap 100-127V 12A 8 5-15R Horizontal 2URM

Widget Not Available!!!

Overview

Dual source Power Distribution Unit / PDU with Manual Transfer Switch enables Hot-swappable UPS Replacement in Critical Network Applications
  • MacMall Part #: 8062727
  • Manufacturer Part #: PDUB15
  • UPC: 1442518462
  • Platform: Universal



Tripp Lites Hot-swap PDU systems enable live-replacement of standard UPS systems for maintenance with no interruption of connected server or networking loads. Dual input power cables support PDU connection to separate Utility and UPS power sources. Manual transfer switch with lighted status indicators controls the source of power to connected equipment between Utility and UPS. Set the switch to UPS during normal operation and connected equipment will receive full-time conditioned power from the UPS. Set the switch to Utility to momentarily power connected equipment from the Utility line cord and bypass the UPS while the UPS system is removed and replaced with a fresh one. Once the new UPS is up and running with all data and electrical connections restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS power to connected equipment.

PDUB15 is universally compatible with any Tripp Lite or other brand of 100-127V UPS rated up to 1500VA with a NEMA 5-15P input plug. Pair of attached 5-15P PDU input cables connect to separate Utility and UPS power sources. 8 5-15R outlets support critical networking loads in both Utilty and UPS operating modes. 2U rackmount installation in 2 or 4 post racks with support for space saving rear-post mounting in the same rack space as your Tripp Lite Rackmount UPS (select installations, see manual).

  • Tripp Lite Hot-swap PDU systems support live-replacement of standard UPS systems for maintenance with no interruption of connected server or networking loads
  • PDUB15 is universally compatible with any Tripp Lite or other brand of 100-127V UPS rated up to 1500VA or 1440 watts with a NEMA 5-15P input cable
  • 2U horizontal rackmount form factor compatible with 2 or 4 post racks
  • Supports space saving rear-post mounting in the same rack space as many Tripp Lite Rackmount UPS systems (select installations, see manual)
  • Pair of attached 5-15P PDU input cables connect to separate Utility and UPS power sources
  • 8 high quality 5-15R outlets support critical networking loads in both Utility and UPS operating modes
  • One additional 5-15R pass-through outlet supports UPS input power cord
  • Dual input power cables support PDU connection to separate Utility and UPS power sources
  • Manual transfer switch with lighted status indicators controls the source of power to connected equipment between Utility and UPS
  • Set the switch to UPS during normal operation and connected equipment will receive full-time conditioned power from the UPS
  • Set the switch to Utility to bypass the UPS and provide connected equipment with unfiltered power directly from the Utility line cord while the UPS system is removed and replaced with a fresh one
  • Once the new UPS is up and running with all connections restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS power to connected equipment

    Applications

    Hot-swap PDUs are ideal to install along with standard UPS systems to ensure that connected networking equipment will see no power interruption as the UPS is serviced, replaced or upgraded

    Product Details:
    • Model Type: Hot-Swappable
    • Voltage compatibility: 100-127V
    • Output Watt Capacity (watts): 1440
    • Frequency compatibility: 50 / 60 Hz
    • Output nominal voltage: 100-127V
    • Outlet quantity / type: 8 NEMA 5-15R outlets support critical connected loads; 1 designated pass-through 5-15R outlet supports UPS 5-15P input plug
    • Recommended Electrical Service: 100V, 120V, 127V
    • Maximum input amps: 12A
    • Input connection type: UTILITY & UPS input line cords both fitted with NEMA 5-15P input plug
    • Input cord length (ft.): Utility input cable (10 ft / 3m) / UPS input cable (6 ft / 1.8m)
    • Switches: Manual 2 position transfer switch offers fast switching between UPS and Utility operating modes in less than 6 milliseconds
    • Front panel LEDs: Lighted indicators confirm UPS and Utility switch position and operating mode
    • Material of construction: Steel
    • Style: Rackmount
    • Form factors supported: 2U rackmount in 2 or 4 post racks
    • Relative Humidity: 0-95% non condensing
    • Certifications: Tested to UL60950 (USA), CSA (Canada)
  • Technical Specs

    General
    Device Type Power distribution unit - rack-mountable
    Height (Rack Units) 2U
    Power Device
    Input Voltage AC 100/120/127 V
    Input Connector(s) 1 x power NEMA 5-15
    Power Output Connectors Details 8 x power NEMA 5-15
    Output Voltage AC 100-127 V ( 50/60 Hz )
    Max Electric Current 12 A
    Power Capacity 1.44 kW / 1500 VA
    Miscellaneous
    Cables Included 1 x power cable - 10 ft ¦ 1 x power cable - 6 ft
    Features LED indicators, built-in bypass switch
    Compliant Standards CSA, UL 60950, RoHS
    Environmental Parameters
    Humidity Range Operating 0 - 95%
    Dimensions & Weight
    Width 17.3 in
    Depth 3 in
    Height 3.4 in
    Weight 7.7 lbs
    Dimensions & Weight (Shipping)
    Shipping Width 20.2 in
    Shipping Depth 6.1 in
    Shipping Height 9.3 in
    Shipping Weight 8.4 lbs
