TRENDnet LMR200 Reverse SMA to N-Type Cable (TEW-L202)

No Reviews | Add Review

Share Today!

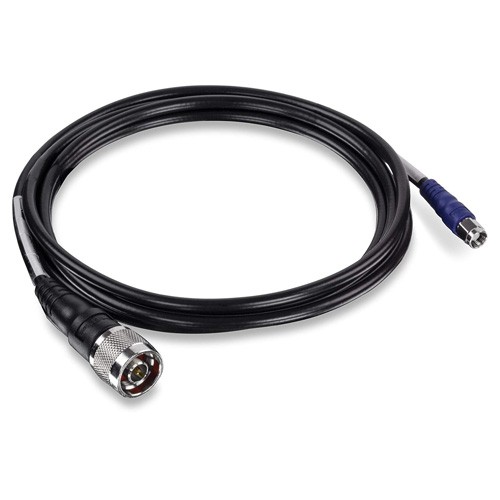

TRENDnet LMR200 Reverse SMA to N-Type Cable

Widget Not Available!!!


The LMR200 Reverse SMA to N-Type Cable extends your wireless Antenna up to 2 meters to provide optimal placement for your antenna outdoors.
  • MacMall Part #: 7374485
  • Manufacturer Part #: TEW-L202
  • UPC: 0093007506293
  • Platform: Universal

The LMR200 Reverse SMA to N-Type Cable extends your wireless Antenna up to 2 meters to provide optimal placement for your antenna outdoors. Connect business networks from building to building wirelessly or provide wireless Internet access for hot spot applications! This cable makes wireless communication possible by providing low loss communication between your access point and antenna.

Product Features:

– Wi-Fi Compliant with 2.4GHz 802.11 b/g & 5GHz 802.11a Devices for extending wireless networks
– Reverse SMA Female to N-Type Male Connector.
– Optimal placement of your existing Wi-Fi Device permits you to maximize its wireless performance.
– Flexible outer conductor allows the tightest bend radius available for any cable of similar size and performance
– Provides flexible Low-loss communication for wireless antenna
– 50dB RF Shielding is 10 dB greater than typical single shielded coax (40 dB).
– Multi-ply bonded outer foil conductor is rated conservatively at > 90 dB.
– Weatherproof cable design for outdoors exposure with best materials for UV resistance
– Polyethylene jacketed cable designed for outdoor use
– Easy and quick deployment into a WLAN environment

Product Specifications:

– Inner Conductor (Solid BC)
0.044 in. (1.12 mm)

– Dielectric (Foam PE)
0.116 in. (2.95 mm)

– Outer Conductor (Aluminum Tape)
0.121 in. (3.07 mm)

– Over Braid (Tinned Copper )
0.144 in. (3.66 mm)

– Jacket (PE)
0.195 in. (4.95 mm)

– Mechanical
Bend Radius: Installation 0.5 in. (12.7 mm)
Bend Radius: Repeated 2.0 in. (50.8 mm)
Bending Moment 0.2 ft-lb (0.27 N-m)

– Tensile Strength
40 lb (18.2 kg)

– Flat Plate Crush
15 lb/in. (0.27 kg/mm)

– Temperature
Operating: -40° C ~ 85°C (-40°F~185°F)
Storage: -70° C ~ 85°C (-94°F~185°F)

– Electrical Cut-off Frequency
39 GHz

– Velocity of Propagation

– Dielectric Constant

– Time Delay
1.22 nS/ft (4.02 nS/m)

– Impedance
50 ohms

– Capacitance
24.5 pF/ft (80.3 pF/m)

– Inductance
0.061uH/ft (0.20 uH/m)

– Shielding Effectiveness
> 90 dB

– DC Resistance: Inner Conductor Outer Conductor
5.36ohms/1000ft (17.6 ohms/km)
4.9 ohms/1000ft (16.1 ohms/km)

– Voltage Withstand
1000 Volts DC

– Jacket Spark
3000 Volts RMS

– Peak Power
2.5 kW

Technical Specs

Network Cable Type Antenna cable
Jacket Material Polyethylene
Impedance 50 Ohm
Length 6.6 ft
Connectors 1 x SMA - female
Connectors (Other Side) 1 x N-Series connector - male
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 185 °F
