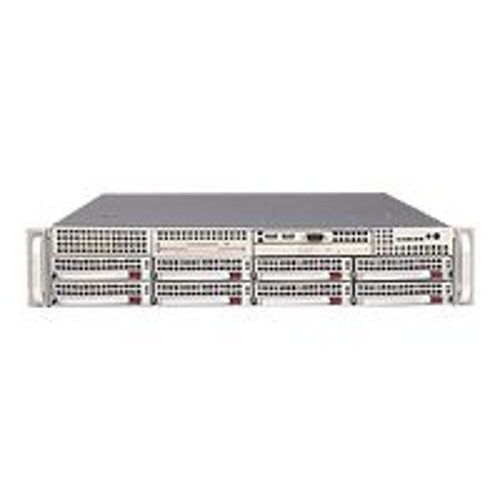

Super Micro Supermicro SuperServer 6025B-3B - no CPU - 0 MB - 0 GB (SYS-6025B-3B)

Super Micro
No Reviews | Add Review

Share Today!


Super Micro Supermicro SuperServer 6025B-3B - no CPU - 0 MB - 0 GB

Widget Not Available!!!

Overview

Supermicro SuperServer 6025B-3B - Server - rack-mountable - 2U - 2-way - RAM 0 MB - SATA/SAS - hot-swap 3.5" - no HDD - DVD - ATI ES1000 - GigE - Monitor : none.
  • MacMall Part #: 7087090
  • Manufacturer Part #: SYS-6025B-3B
  • UPC: 0672042006601
  • Platform: PC


The SuperServer 6025 series improve upon the winning formula of the previous 2U systems and optimize on performance by supporting dual-processor Quad-core Xeon 5400/5300 and dual-core Xeon 5200/5100 series processors and FBDIMM memory.

Technical Specs

General
Type Server
Product Form Factor Rack-mountable - 2U
Built-in Devices LED panel
Server Scalability 2-way
Front Accessible Bays Qty 2
Hot-Swap Bays Qty 8
Color Black
Processor / Chipset
CPU No CPU
64-bit Computing Yes
Max CPU Qty 2
CPU Upgradability Upgradable
CPU Socket LGA771 Socket
Chipset Type Intel 5000P
Front Side Bus 1333 MHz
RAM
Installed Size 0 MB / 32 GB (max)
Technology DDR2 SDRAM - ECC
Form Factor FB-DIMM 240-pin
Features Dual channel memory architecture, fully buffered
Upgrade Rule 2 modules at a time
Hard Drive
Type No HDD
Storage Controller
Type 1 x RAID - integrated
Controller Interface Type SATA 3Gb/s
Channel Qty 6
RAID Level RAID 0, RAID 1, RAID 5, RAID 10
Storage Controller (2nd)
Type 1 x Serial Attached SCSI - integrated
Controller Interface Type SAS
Storage Controller Name Adaptec AIC-9410
Channel Qty 2
RAID Level RAID 0, RAID 1, RAID 10
Optical Storage
Type DVD-ROM - IDE
Read Speed 24x (CD) / 8x (DVD)
Monitor
Monitor Type None.
Graphics Controller
Type Integrated
Interface Type PCI
Graphics Processor ATI ES1000
Video Memory 16 MB
Video Interfaces VGA
Networking
Type Integrated
Ethernet Ports 2 x Gigabit Ethernet
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol DMI 2.1, IPMI 2.0
Expansion / Connectivity
Bays 8 (total) / 8 (free) x hot-swap 3.5" x 1/3H ¦ 1 (total) / 0 (free) x external 5.25" Slim Line ¦ 1 (total) / 1 (free) x external 3.5" Slim Line
Slots 2 (total) / 2 (free) x CPU ¦ 8 (total) / 8 (free) x FB-DIMM 240-pin ¦ 1 (total) / 1 (free) x expansion slot ¦ 2 (total) / 2 (free) x PCIe x8 - low-profile ¦ 1 (total) / 1 (free) x PCIe x8 - low-profile ( x4 mode ) ¦ 2 (total) / 2 (free) x PCI-X / 133 MHz - low-profile ¦ 1 (total) / 1 (free) x PCI-X / 100 MHz - low-profile
Interfaces 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 4 x USB 2.0 ( 2 in front ) ¦ 1 x PS/2 mouse ¦ 1 x PS/2 keyboard ¦ 2 x serial ( 1 in front ) ¦ 1 x parallel
Miscellaneous
Included Accessories Rack mounting kit
Cables Included Serial Attached SCSI cable ( 2 pcs.)
Features Chassis intrusion detection, thermal monitoring, overheat protection, voltage monitoring, Power Factor Correction (PFC)
Compliant Standards ACPI, APM 1.2
Power
Device Type Power supply
Nominal Voltage AC 120/230 V ( 50/60 Hz )
Power Provided 560 Watt
Operating System / Software
Software Drivers & Utilities
Dimensions & Weight
Width 16.8 in
Depth 25.6 in
Height 3.5 in
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 8 - 90%
