Super Micro Supermicro SC836 TQ-R500B - Rack-mountable - 3U - SATA/SAS - hot-swap 500 Watt - black - USB/serial (CSE-836TQ-R500B)

Super Micro
No Reviews | Add Review

Share Today!

Super Micro Supermicro SC836 TQ-R500B - Rack-mountable - 3U - SATA/SAS - hot-swap 500 Watt - black - USB/serial

Widget Not Available!!!


Supermicro SC836 TQ-R500B - Rack-mountable - 3U - SATA/SAS - hot-swap 500 Watt - black - USB/serial
  • MacMall Part #: 8873982
  • Manufacturer Part #: CSE-836TQ-R500B
  • Platform: Universal

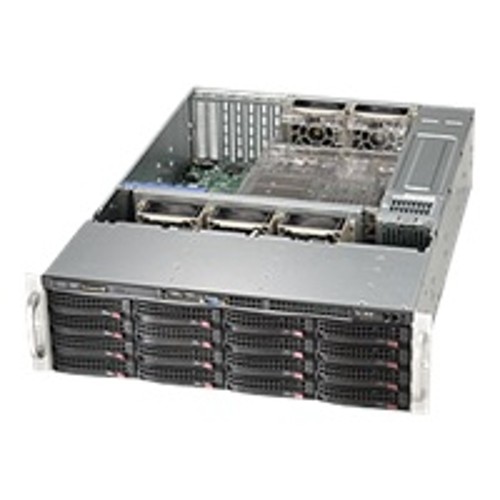

Supermicro's SC836 storage chassis supports 16 hot-swappable 3.5" SAS/SATA hard drive bays, the industry's highest storage density for a 3U system. Heavy duty palletized packaging is available to ensure secure system reliability during shipping and tool-less, roller rail designs for easy installation and maintenance are standard with each system.

Technical Specs

Form Factor Rack-mountable - 3U
Front Accessible Bays Qty 2
Hot-Swap Bays Qty 16
Server Swappable Drive Interface SATA/SAS
Built-in Devices LED panel
Color Black
Cooling System Rear : 80 mm fan x 2 / exhaust / 6700 rpm ¦ Internal : 80 x 80 x 38 mm fan x 3 / 7000 rpm / Pulse-width modulation (PWM) support, hot-swap
System Cabinet Features Chassis intrusion detection, SCSI Enclosure Services (SES2) support
Expansion / Connectivity
Expansion Bays 16 (total) / 16 (free) x hot-swap - 3.5" ¦ 1 (total) / 1 (free) x front accessible - 5.25" Slim Line ¦ 1 (total) / 1 (free) x front accessible - 3.5" Slim Line
Expansion Slots 7 x full-length, full-height
Interfaces 2 x USB ¦ 1 x serial - DB-9
Included Accessories 4 x SATA cables, mounting rails, SAS / SATA backplane, air shroud
Compliant Standards UL, TUV, cUL, EN 60950, IEC 60950, EMC, 80 PLUS Platinum
Power Device Power supply
Power Redundancy Yes
Power Redundancy Scheme 1+1
Installed Qty 2
Max Supported Qty 2
Power Capacity (of Single Unit) 500 Watt
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Provided 500 Watt
Dimensions & Weight
Width 17.2 in
Depth 25.6 in
Height 5.2 in
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - parts - 1 year ¦ Limited warranty - labor - 3 years
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 8 - 90% (non-condensing)
