Sun Microsystems StorageTek Enterprise Host Bus Adapter - host bus adapter - 2 ports (SG-XPCI2FC-QF4)

Sun Microsystems
No Reviews | Add Review

Share Today!

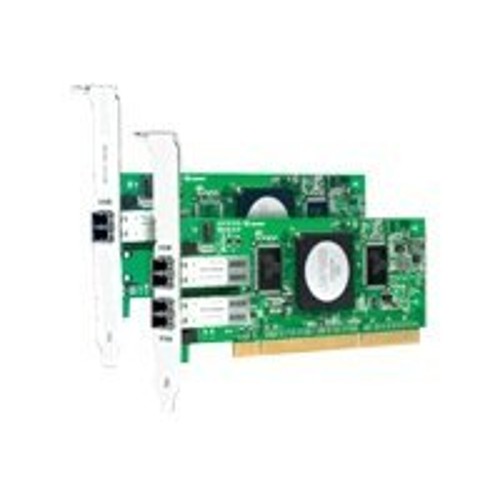

Sun Microsystems StorageTek Enterprise Host Bus Adapter - host bus adapter - 2 ports

Widget Not Available!!!


Sun StorageTek Enterprise Host Bus Adapter - Host bus adapter - PCI-X low profile - 4Gb Fibre Channel - 2 ports - for Blade 1500; Fire V125, V215, V245, V445, X4200 M2, X4500, X4600 M2; Netra 12XX, T2000
  • MacMall Part #: 8945553
  • Manufacturer Part #: SG-XPCI2FC-QF4
  • Platform: Universal

The Sun StorageTek Enterprise 4Gb to PCI Express Fiber Channel host bus adapter family offers highly integrated connectivity solutions for enterprise-class storage area networks (SANs). With PCI Express host bus platform support and 4Gb Fiber Channel link speeds, this host bus adapter solution delivers unsurpassed performance and flexibility for your most demanding storage networking applications.Featuring the award-winning LightPulse HBA architecture from Emulex, the StorageTek SG-XPCIE1FC-EM4 (single channel) host bus adapter is ideal for SAN environments that need to perform to today's most rigorous standards.

Technical Specs

Device Type Host bus adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI-X hot-plug 266 MHz
PCI Specification Revision PCI 2.3, PCI-X 2.0
Ports 4Gb Fibre Channel x 2
Connectivity Technology Wired
Data Link Protocol 4Gb Fibre Channel
Fibre Channel FC-AL-2, FC-FLA, FC-FS, FC-GS-3, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-Tape, FCP, FCP-2
Data Transfer Rate 4.24 Gbps
Status Indicators Port status, link activity
Features Auto-negotiation
Processor / Memory
Processor 1 - Qlogic
Expansion / Connectivity
Expansion Slots 2 (total) / 0 (free) x SFP
Interfaces 2 x 4Gb Fibre Channel - LC multi-mode x 2
Compatible Slots 1 x PCI-X hot-plug 266 MHz
Included Accessories Low-profile bracket, full-height bracket
Compliant Standards FCC Class A certified, UL, TUV, CISPR 22 Class A, BSMI CNS 13438 Class A, cUL, DHHS, EN 60950, EN 61000-3-2, EN55022, IEC 825-1/EN 60825-1 class 1, VCCI Class A ITE, EN 61000-3-3, EN55024, UL 60950, WHQL, CSA 22.2 No. 60950, AS/NZ 3548 Class A, EMC, FCC Part 15, MIC, ICES-003 Class A, RoHS
Software / System Requirements
OS Required Microsoft Windows 2000 Server, SunSoft Solaris 8, SunSoft Solaris 9, Microsoft Windows Server 2003, Red Hat Enterprise Linux 3, SunSoft Solaris 10, SuSE Linux Enterprise Server 9, Red Hat Enterprise Linux 4
Dimensions & Weight
Depth 6.7 in
Height 2 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 - 90%
Compatibility Information
Designed For Sun Blade 1500 ¦ Sun Fire 280R, 4800, 6800, E2900, E4900, E6900, T2000, V125, V1280, V20z, V210, V215, V240, V245, V250, V40z, V440, V445, V480, V490, V880, V890, X4100, X4200, X4200 M2, X4500, X4600, X4600 M2 ¦ Sun Netra 1280, 1290, 20, T2000 AC, T2000 DC ¦ Sun StorageTek 6920
