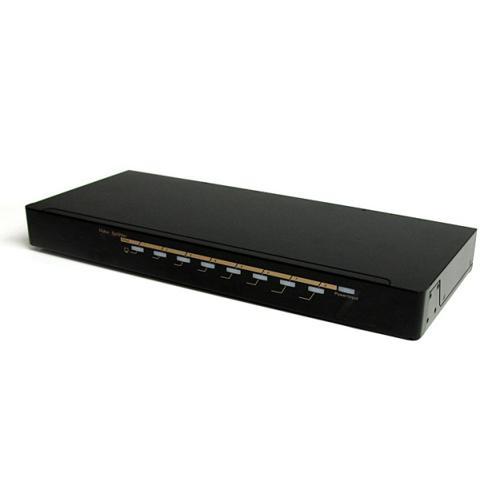

StarTech 8-Port High Speed HDMI Video Splitter w/ Audio - Rack Mountable (ST128HDMI2)

StarTech
No Reviews | Add Review

Share Today!


StarTech 8-Port High Speed HDMI Video Splitter w/ Audio - Rack Mountable


Widget Not Available!!!

Overview

The ST128HDMI2 8-Port High Speed HDMI Splitter (rack mountable) lets you share a single HDMI audio-video source with up to 8 HDMI or DVI-D displays without sacrificing image or sound quality.
  • MacMall Part #: 8791305
  • Manufacturer Part #: ST128HDMI2
  • UPC: 0667026007231
  • Platform: Universal



The ST128HDMI2 8-Port High Speed HDMI Splitter (rack mountable) lets you share a single HDMI audio-video source with up to 8 HDMI or DVI-D displays without sacrificing image or sound quality.

Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 16ft (5m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.

A perfect addition to virtually any application requiring the high quality video, the ST128HDMI2 HDMI splitter is easy to install as a standalone or rack-mounted device using the included brackets and provides flawless, distortion-free digital video.

Product Details:
  • Cabling HDMI
  • Carton Quantity 4
  • Color Black
  • Daisy-Chain Yes
  • Enclosure Type Steel
  • Industry Standards High Speed HDMI(1.3), HDCP, EDID
  • Power Consumption 10.2W
  • Product Height 44
  • Product Length 1.69 in [43 mm]
  • Product Weight 7.74 lb [3.5 kg]
  • Product Width 7.28 in [185 mm]
  • Rack-Mountable Yes
  • Shipping (Package) Weight 11.05 lb [5 kg]
  • LED Indicators 1 - Power (Green) / Input Signal (Blue)
  • LED Indicators 4 - Green Port signal indicator
  • Maximum Cable Length 16.4 ft [5 m]
  • Maximum Digital Resolutions HDTV 1080p / PC 1920x1200
  • Supported Resolutions 1080p (1920 x 1080) / VGA (640 x 480) / SXGA (1280 x 1024) / UXGA (1600 x 1200) / WUXGA (1920 x 1200)
  • Wide Screen Supported Yes
  • Number of Ports 8
  • Audio Yes
  • Connector A 1 - 3.5 mm Mini-Jack (3 Position) Female
  • Connector A 1 - HDMI (19 pin) Female
  • Connector B 8 - 3.5 mm Mini-Jack (3 Position) Female
  • Connector B 8 - HDMI (19 pin) Female
  • Input Current 800mA
  • Output Voltage 12 DC
  • Output Current 1.5A
  • Humidity 0%~80%
  • Operating Temperature 0°C to 40°C (32°F to 104°F)
  • Storage Temperature -10°C to 60°C (14°F to 140°F)
  • Power Adapter Included Yes
  • Input Voltage 110 ~ 240 AC
  • Power Adapter - DC Voltage 5 DC
  • Power Adapter - Amperage 2.6 Amp
  • Center Tip Polarity Positive

Technical Specs

General
Device Type Video/audio splitter - 8 ports - cascadable
Enclosure Type Rack-mountable
Subtype HDMI
Ports 8 x HDMI
Max Units In A Stack 3
Max Resolution 1080p
Features HDTV support
Status Indicators Port status, power
Expansion / Connectivity
Interfaces 8 x HDMI ¦ 1 x HDMI ¦ 1 x audio input - mini-jack ¦ 8 x audio output - mini-jack
Power
Power Device External power adapter
Voltage Required AC 120/230 V
Power Consumption Operational 10.2 Watt
Miscellaneous
Color Black
Rack Mounting Kit Included
Compliant Standards FCC, RoHS
Dimensions & Weight
Width 7.3 in
Height 1.7 in
Weight 7.7 lbs
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 80%
Min Storage Temperature 14 °F
Max Storage Temperature 140 °F
