StarTech Mini VGA Video and Audio Extender over Cat5 (ST121UTPMINI)

StarTech
No Reviews | Add Review

Share Today!

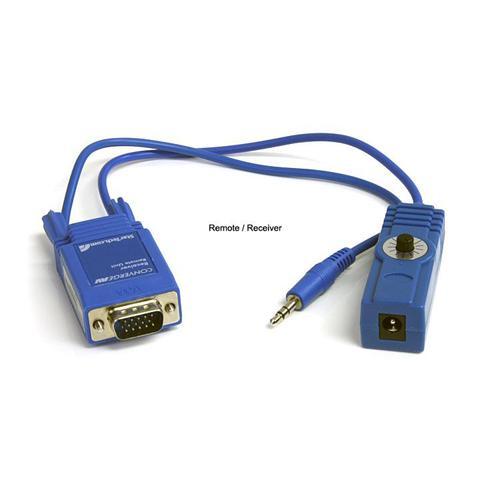

StarTech Mini VGA Video and Audio Extender over Cat5

Widget Not Available!!!

Overview

Extend a VGA signal with audio to a remote display over Cat 5 or better cabling with this small form-factor device.
  • MacMall Part #: 8133853
  • Manufacturer Part #: ST121UTPMINI
  • Platform: Universal



Small but powerful VGA and audio extender ensures your message is delivered loud and clear

The ST121UTPMINI VGA over Cat 5 video extender provides a complete high resolution point-to-point digital signage solution, comprised of one local transmitter unit and one remote receiver. The extender allows the intended VGA video and audio signals to be extended for transmission distances of up to 90m (275ft) over standard 4-pair CAT 5e UTP cable.

Simply connect the local (transmitter) unit to the VGA video and audio source, then connect the remote unit to a VGA display up to 90m (275ft) away. To start extending the VGA and audio signal, create a point-to-point connection by using CAT 5e UTP cable (terminated on each end with RJ45 connectors) between the two units.

The Cat 5 VGA extender provides a cost-effective way to situate your display as needed, eliminating standard distance limitations for a more effective digital signage configuration. The extender is compact enough to be tucked away behind the display, even in tight spaces and includes a small form factor dongle that ensures youll be able to connect the remote unit to the display, even when space is limited.


Features:
  • Transmit VGA Video and Audio through one Cat5 cable
  • Supports resolutions up 1920x1200 at 90m / 275ft
  • Local / Transmitter unit is USB powered from PC
  • Receiver has a built in equalizer for fine tuning image quality
Applications:
  • Perfect for tight spaces or when a boxed VGA extender is not convenient for the installation.
  • Ideal for digital signage applications in educational, corporate, retail, healthcare, and hospitality sectors
Technical Specifications
  • Remote Unit Connectors: 2 - DB15 High Density Female
  • Remote Unit Connectors: 1 - RJ45 Female
  • Maximum Resolution: 1920x1200 @ 275ft / 90m
  • Cable Type: CAT5e / CAT6 (UTP)
  • Maximum Distance: 90m / 275ft
  • Power Adapter - Amperage: 250mA
  • Center Tip Polarity: Positive
  • Color: Blue
  • Connector Types: 2 - DB15 Male
  • Connector Types: 2 - RJ45 Female
  • Connector Types: 2 - Phono 3.5 mm Male
  • Connector Types: 1 - USB A Male
  • Enclosure Type: Aluminum
  • LED Indicators: 1 - Power and Video Status
  • Number of Ports: 1
  • Power Adapter Included: Yes
  • Remote Unit Connectors: 1 - 3.5 mm Stereo Male
  • Extender Power Requirement: USB DC 5V, 200mA
  • Input Voltage: 110 ~ 240 AC
  • Output Voltage: 5 DC
  • Output Current: 1000mA
  • Plug Type: M

Technical Specs

General
Device Type Video/audio extender
Form Factor External
Color Blue
Networking
Connectivity Technology Wired
Max Transfer Distance 300 ft
Status Indicators Port status
Features USB powered
Expansion / Connectivity
Interfaces 1 x VGA - HD-15 ¦ 1 x audio - mini jack
Power
Power Device External power adapter
Voltage Required DC 5 V
Manufacturer Warranty
Service & Support 2 years warranty
Service & Support Details Limited warranty - 2 years
