StarTech Universal USB 3.0 Laptop Docking Station – Dual Video HDMI DVI w/ Audio Ethernet (USB3SDOCKHD)

StarTech
No Reviews | Add Review

Share Today!

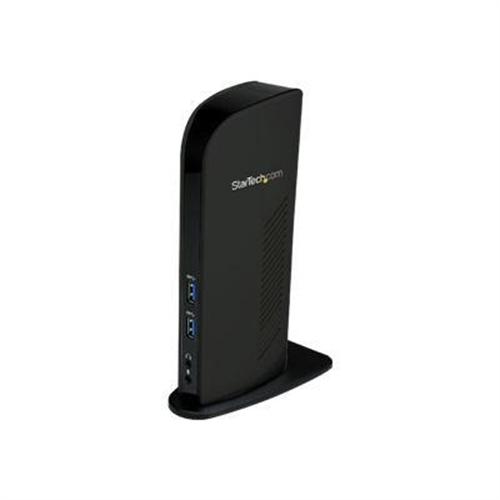

StarTech Universal USB 3.0 Laptop Docking Station – Dual Video HDMI DVI w/ Audio Ethernet

Widget Not Available!!!

Overview

The USB3SDOCKHD Universal USB 3.0 Laptop Docking Station with DVI, HDMI, Audio and Ethernet adds dual video outputs, headphone and microphone jacks, as well as Gigabit Ethernet and additional USB 3.0 and USB 2.0 ports to a laptop computer
  • MacMall Part #: 9316471
  • Manufacturer Part #: USB3SDOCKHD
  • Platform: Universal


Universal USB 3.0 Laptop Docking Station - Dual Video HDMI DVI with Audio Ethernet

The USB3SDOCKHD Universal USB 3.0 Laptop Docking Station with DVI, HDMI, Audio and Ethernet adds dual video outputs, headphone and microphone jacks, as well as Gigabit Ethernet and additional USB 3.0 and USB 2.0 ports to a laptop computer, all from a single device and over a single SuperSpeed USB 3.0 connection.

This versatile universal docking station features two independent external monitor outputs (HDMI, DVI) that can be separately used to expand or mirror your computer's main desktop. Plus, each of the video outputs provided by the docking station supports video resolutions up to 1920x1200 and HD video playback - an ideal solution for adding robust video capability while remaining conveniently mobile.

An all-in-one mobile solution, the universal laptop docking station combines USB 2.0 and USB 3.0 hubs, headphone and microphone audio connectors and a Gigabit Ethernet RJ45 port into a single docking station, making it the perfect accessory for enhancing laptop capability for users who need to connect and manage multiple devices at home or at the office.

Features:

  • Independant HDMI and DVI video outputs with mirroring and/or extended desktop capabilities
  • 10/100/1000 Mbps compatible RJ45 Ethernet port
  • Speaker and Microphone support via 3.5mm stereo mini-jacks
  • Supports resolutions up to 2048x1152 on both video outputs simultaneously
  • 2 front panel USB 3.0 ports and 4 rear panel USB 2.0 ports
  • Fully compliant with USB 3.0 specifications, with support for transfer rates up to 5 Gbps
  • Supports the Windows Aero interface
  • Vertical, upright positioning saves desk space

Applications:

  • Add HD video, USB (USB 2.0 and USB 3.0), Ethernet and Audio from a single USB connection, without having to open the computer system
  • Add dual video outputs to a laptop or small form factor computer, where the video card cannot be replaced
  • Connect a wide variety of peripherals at home/office to a laptop and be able to instantly disconnect them all from a single USB connection
  • Turn a laptop into a multi-monitor workstation (up to 3 screens total) for increased productivity

Specifications:

  • Interface: USB 3.0
  • Bus Type: USB 3.0
  • Industry Standards: IEEE 802.3, 802.3u, and 802.3ab
  • Chipset ID: DisplayLink - DL-3900; VLI - VL810; Terminus - FE1.1; Realtek - RTL8211E

Connector Type(s):

  • 1 - DVI-I (29 pin) Female
  • 1 - HDMI (19 pin) Female
  • 1 - RJ-45 Female
  • 1 - USB 3.0 B (9 pin; SuperSpeed) Female
  • 2 - 3.5 mm Mini-Jack (3 Position) Female
  • 2 - USB 3.0 A (9 pin; SuperSpeed) Female
  • 4 - USB A (4 pin) Female

OS Compatibility:

  • Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2/ 8(32/64-bit)

Technical Specs

General
Product Type USB docking station
Width 7.7 in
Depth 3 in
Height 5 in
Weight 12.8 oz
Enclosure Color Black
Networking
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Interfaces 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 4 x USB 2.0 - 4 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x headphones - output - mini-phone stereo 3.5 mm ¦ 1 x microphone - input - mini-phone 3.5 mm ¦ 1 x SuperSpeed USB 3.0 - 9 pin USB Type B ¦ 1 x display / video - DVI-Analog/Digital (dual link) - 29 pin combined DVI ¦ 1 x video - HDMI - 19 pin HDMI Type A
Miscellaneous
Features LED indicator
Compliant Standards FCC, RoHS
Power
Power Device Power adapter - external
Manufacturer Warranty
Service & Support 2 years warranty
Service & Support Details Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 104 °F
