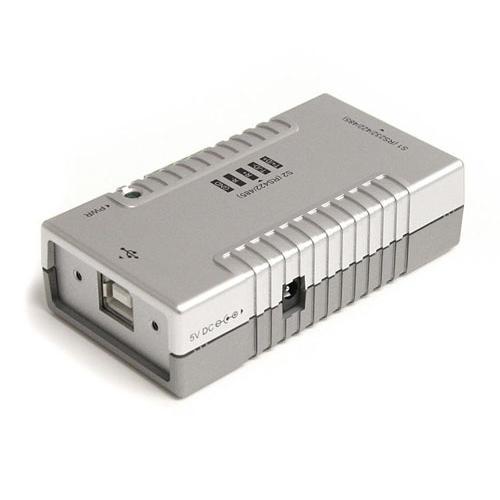

StarTech 2-Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention (ICUSB2324852)

StarTech
No Reviews | Add Review

Share Today!


StarTech 2-Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention


Widget Not Available!!!

Overview

Add RS232, RS422 and RS485 support to your laptop, netbook or desktop computer via USB
  • MacMall Part #: 8264088
  • Manufacturer Part #: ICUSB2324852
  • UPC: 065030840965
  • Platform: Universal



The ICUSB2324852 2-port, wall-mountable USB Serial Adapter lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dipswitch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations.

For a convenient, and clean installation in an office or industrial setting, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter.

Features:
  • Port 1 (DB9) configurable for RS232, RS422, or RS485; Port 2 (Terminal Block) configurable for RS422 or RS485
  • COM Port assignments maintained after reboot
  • Multiple interface modes, including: 4 wire RS422(TxD+/-, RxD+/-), and 2 wire RS485 (DATA+, DATA-)
  • Both ports can function simultaneously with mixed or matched communication protocols
  • Ability to rename devices for easy recognition
  • USB-powered; No additional external power adapter required
  • External power adapter can be used (not required) if your device needs extra power beyond what the USB host can provide
  • Includes a bracket for wall mounting the USB to Serial adapter
  • Transmission Echo for RS485 collision detection
  • Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware
  • Features rugged screw-lock USB port to ensure cords are not accidentally disconnected
  • Backwards compatible with USB 1.1
Applications:
  • Perfect for controlling, monitoring, and diagnosing manufacturing machines (CNC, Process Control Equipment, Bar Code Scanners, Serial Printers)
  • Great for Industrial programmers looking to test new code with serial devices
  • Security device control (key panels, cameras, card readers)
  • Connect serial RS232, RS422, or RS485 devices to notebooks or tablet PCs through the USB port
  • Adapting and expanding POS systems

Technical Specs

General
Device Type Serial adapter - 2 ports
Form Factor External
Interface (Bus) Type Hi-Speed USB
Networking
Connectivity Technology Wired
Data Link Protocol RS-232, RS-422, RS-485
Data Transfer Rate 921.6 Kbps
Status Indicators Power
Features USB powered, wall mountable
Expansion / Connectivity
Interfaces 1 x RS-232/422/485 - 9 pin D-Sub (DB-9) ¦ 1 x RS-422/485 - terminal block
Connections 1 x Hi-Speed USB - 4 pin USB Type B
Miscellaneous
Compliant Standards FCC, RoHS
Color Gray
Software / System Requirements
OS Required Apple MacOS 6.0, Linux 2.4 or later, Microsoft Windows XP Embedded, Microsoft Windows 98SE/2000/ME/XP, Apple MacOS 9.x or later, Microsoft Windows 7, Microsoft Windows Mobile 5.0, Microsoft Pocket PC 2003, Microsoft Windows CE 4.2, Microsoft Windows Vista, Microsoft Windows Mobile 6.0, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows CE 6.0
Dimensions & Weight
Width 1.7 in
Depth 3.2 in
Height 0.9 in
Weight 10.6 oz
Manufacturer Warranty
Service & Support 2 years warranty
Service & Support Details Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 - 95%
