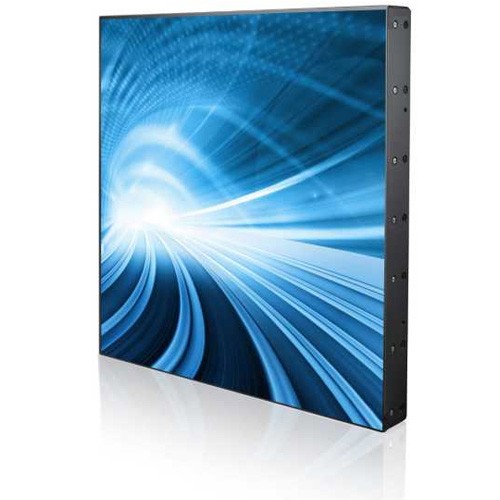

Samsung UD22B - 22" Class ( 21.6" viewable ) LED-backlit LCD flat panel display (UD22B)

Samsung
No Reviews | Add Review

Share Today!


Samsung UD22B - 22" Class ( 21.6" viewable ) LED-backlit LCD flat panel display

Widget Not Available!!!

Overview

Samsung UD22B - 22" Class ( 21.6" viewable ) - commercial use - UD Series LED-backlit LCD flat panel display - direct-lit LED
  • MacMall Part #: 9332750
  • Manufacturer Part #: UD22B
  • Platform: Universal


The UD22B can be configured in video walls up to 10 x 10 for strikingly different and artistic messaging that draws customer attention. Smart scheduling enables video wall content control at all times with up to 3 programmable day/time calendars. The upgraded multi display control allows control of multiple monitors through the embedded RS232C and RJ45 interfaces.

Technical Specs

General
Product Type LED-backlit LCD flat panel display
Power Consumption Operational 72 Watt
Diagonal Size 22" Class ( 21.6" viewable )
Diagonal Size (cm) 55.9 cm ( 54.9 cm viewable )
Targeting Commercial use
Series UD Series
TV Tuner No tuner
Video Interface HDMI
HDMI Ports Qty 1 port(s)
PC Interface DVI, DisplayPort
HDCP Compatible Yes
Video Wall Components Qty 100
Dimensions Without stand
Width 15.5 in
Depth 3.2 in
Height 15.5 in
Weight 14.3 lbs
Display
LCD Display Technology S-PVA
Resolution 960 x 960
Image Aspect Ratio 1:1
LCD Backlight Technology LED backlight - direct-lit LED
Image Contrast Ratio 4000:1
Brightness 450 cd/m2
Viewing Angle 178 degrees
Viewing Angle (Vertical) 178 degrees
Response Time 8 ms
Additional Features Multiple Display Control (MDC), digital daisy chain, Video Wall, Smart Scheduling
Remote Control
Type Remote control
Network & Internet Multimedia
Connectivity LAN
LAN Protocol Ethernet
Connections
Connector Type 1 x DVI-D output ( 24 pin digital DVI ) ¦ 1 x DVI-D input ( 24 pin digital DVI ) ¦ 1 x DisplayPort ( 20 pin DisplayPort ) ¦ 1 x HDMI ( 19 pin HDMI Type A ) ¦ 1 x network ( RJ-45 ) ¦ 1 x serial input ( 9 pin D-Sub ) ¦ 1 x serial output ( 9 pin D-Sub ) ¦ 1 x audio line-out ( mini-phone stereo 3.5 mm )
Stands & Mounts
Stand Optional
Flat Panel Mount Interface 300 x 300 mm
Miscellaneous
Cables Included DVI cable
Compatible with Windows 7 "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards EMC, RoHS
Environmental Standards
ENERGY STAR Qualified Yes
ENERGY STAR Version 5.0
Power
Power Device Power supply
Nominal Voltage AC 120/230 V ( 50/60 Hz )
Power Consumption Stand by / Sleep 1 Watt
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - parts and labor - 3 years - on-site ¦ Limited warranty - backlight - 3 years
Dimensions & Weight (Shipping)
Width (Shipping) 18.6 in
Depth (Shipping) 7.4 in
Height (Shipping) 18.6 in
Weight (Shipping) 17 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 80% (non-condensing)
