Ricoh BB-HPL10A-R - bridge - desktop (100123FNG)

No Reviews | Add Review

Share Today!

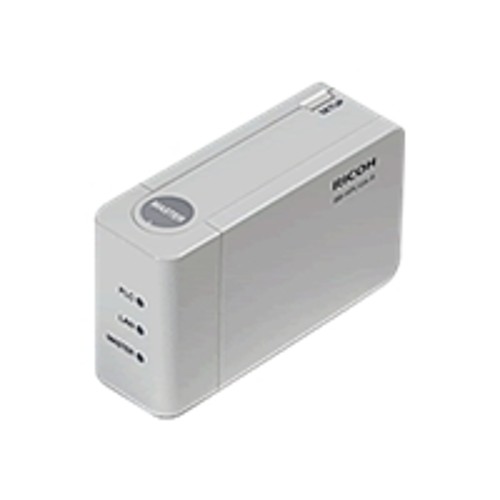

Ricoh BB-HPL10A-R - bridge - desktop

Widget Not Available!!!


Ricoh BB-HPL10A-R - Bridge - HD-PLC - for Aficio SP 3500, SP 3510, SP 4100, SP 4310, SP 820, SP C312, SP C420, SP C820
  • MacMall Part #: 8387608
  • Manufacturer Part #: 100123FNG
  • Platform: Universal

Take advantage of high-speed Ethernet network communications by leveraging the electrical system in your office building or home office to send data, the Ricoh BB-HPL10A-R High Definition Power Line Communications Ethernet Adapter (HD-PLC) is an easy and affordable way to build a secure local area network without investing in cables or wireless hardware. Share data, print files, send e-mails, and access the Internet simply by plugging into the nearest power outlet!

Technical Specs

Device Type Bridge
Enclosure Type Desktop
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, HD-PLC
Network / Transport Protocol TCP/IP, UDP/IP
Encryption Algorithm 128-bit AES
Features Auto-uplink (auto MDI/MDI-X)
Compliant Standards IEEE 802.3, IEEE 802.3u
Line Properties
Line Coding Format OFDM
Expansion / Connectivity
Interfaces 1 x 10Base-T/100Base-TX - RJ-45 ¦ 1 x HD-PLC
Voltage Required AC 120 V ( 60 Hz )
Power Consumption Operational 4 Watt
Dimensions & Weight
Width 4.8 in
Depth 1.6 in
Height 2.8 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 20 - 85%
Compatibility Information
Designed For Ricoh Aficio SP 3500SF, SP 3510SF, SP 4100N, SP 4100N-KP, SP 4100NL, SP 4100SF, SP 4310N, SP 820DNLC, SP 820DNT1, SP 820DNT2, SP C312DN, SP C420DN-KP, SP C820DN
