Quatech 2 port RS-232, DB-9 serial device server (DSE-100D)

No Reviews | Add Review

Share Today!

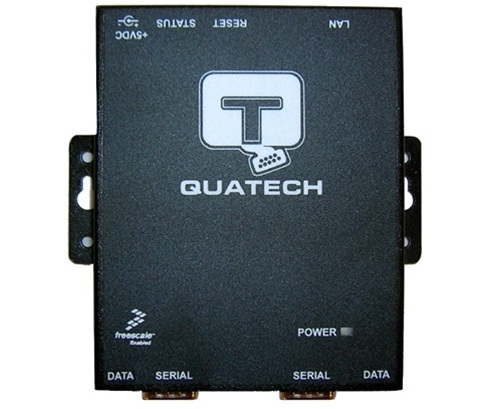

Quatech 2 port RS-232, DB-9 serial device server

Widget Not Available!!!


Expand the reach of any serial device by network-enabling them for remote data collection, access and control. Quatech offers 2 port RS-232, DB-9 serial device server for your demanding needs.
  • MacMall Part #: 7249651
  • Manufacturer Part #: DSE-100D
  • UPC: 0835788104943
  • Platform: Universal

Expand the reach of any serial device by network-enabling them for remote data collection, access and control. High-performance Quatech device servers offer industry-best features like fast and easy installation, powerful Freescale™ (formerly Motorola®) processor for the industry's lowest latency. When mission-critical applications require specific and complete emulation of a local serial COM port, the lowest latency possible or very high (up to 921K) baud rates, Quatech device servers are the best solution available. Available in 1, 2, 4 and 8 port RS-232 and RS-232/422/485 (MEI) versions. Options include industrial surge suppression, 5v power output (with standard surge suppression on 1 & 2 port RS-232 models only), DIN rail and rack mounting options, additional power in/out modes, screw terminal adapters and more.

In addition, Quatech's high performance line offers SNMP for simple network management and virtual COM port drivers for Windows NT4, 2000, XP and Linux. Raw TCP and UDP modes allow direct access from virtually all operating systems, and our exclusive IntelliSock™ TCP socket service allows for on-the-fly customization of the serial port for each data transmission. Quatech Device Servers may be set up as a Client or Server, or use the AutoTCP feature and operate as a Client to one computer while a Server to another (excellent for remote service needs). The Installation Wizard makes it easy to get any serial device up and running on your network in less than ten minutes, and a five-year warranty gives you peace of mind!

Technical Specs

Device Type Device server
Built-in Devices LED panel
Width 8.3 in
Depth 5.3 in
Height 1.7 in
Processor / Memory / Storage
Processors Installed 1 x Motorola MPC855T
Max Supported Qty 1
Flash Memory 1 MB
Form Factor External
Ports Qty 2
Connectivity Technology Wired
Data Transfer Rate 921.6 Kbps
Data Link Protocol RS-232
Network / Transport Protocol TCP/IP, UDP/IP
Remote Management Protocol SNMP, HTTP
Status Indicators Link activity, power, 100M device connected, status
Features Flow control, DHCP support, auto-negotiation, ARP support, IntelliSock TCP, RAW TCP
Compliant Standards IEEE 802.3
Expansion / Connectivity
Interfaces 2 x RS-232 - DB-9 ¦ 1 x 100Base-TX - RJ-45
Compliant Standards FCC Class B certified
Power Device External power adapter
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 20 Watt
Software / System Requirements
Software Included Drivers & Utilities
OS Required Microsoft Windows NT 4.0, Linux, Microsoft Windows 2000, Microsoft Windows XP
Manufacturer Warranty
Service & Support 5 years warranty
Service & Support Details Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 158 °F
Humidity Range Operating 10 - 90%
