Plextor 64GB M5M PX-64M5M - Solid State Drive - SATA-600 (PX-64M5M)

No Reviews | Add Review

Share Today!

Plextor 64GB M5M PX-64M5M - Solid State Drive - SATA-600

Widget Not Available!!!


The Plextor M5Pro is a professional SSD designed for business and advanced users who demand high performance, reliability, and true data integrity.
  • MacMall Part #: 9538256
  • Manufacturer Part #: PX-64M5M
  • UPC: 844149061290
  • Platform: Universal

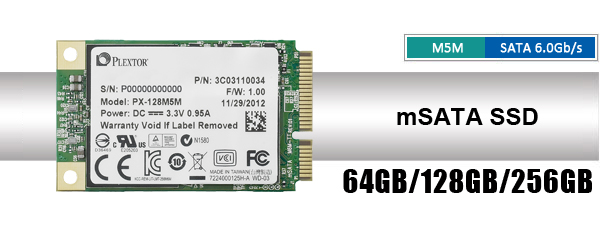

The Plextor M5M is a high-performance mSATA 6 Gb/s SSD specifically engineered to give ultrabook, tablet PC, and other JEDEC MO-300 form factor users the speed and low power consumption benefits of the newest generation SSD technology.

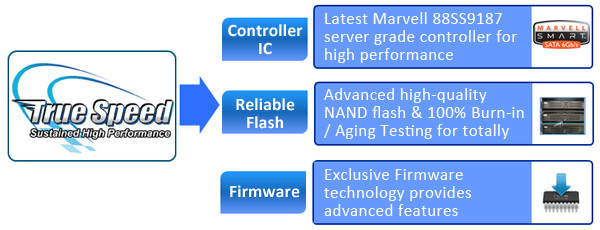

The combination of the latest Marvell 88SS9187 controller and True Speed technology creates M5M the enhanced performance and reliability. The True Speed high-performance technology delivers real world benefits and prevents SSD speed drop, automatically returning performance to like-new speeds.

Latest server-grade Marvell® 88SS9187 controller ensures fast and reliable operation for all applications.

Sequential mode performance of up to 540MB/s read and up to 430MB/s write, boosts the responsiveness of ultrathin laptop and tablet PCs.
Random read speeds of up to 80K IOPS and write speeds up to 77K IOPS at 4K file size, give maximum real-world performance benefits.
Advanced True Speed technology provides long-term sustained performance for all data types and prevents speed drop.

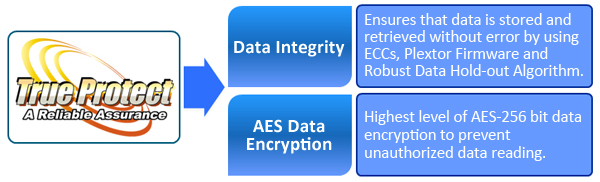

Plextor SSD has a unique True Protect protection system to protect the integrity of your data. To confirm that each piece of data is correctly stored with one hundred percent accuracy the newest 128-bit error correction code is used. For data confidentiality, the drive uses hardware in the US Government AES-validated Marvell controller to provide secure 256-bit full-drive encryption.

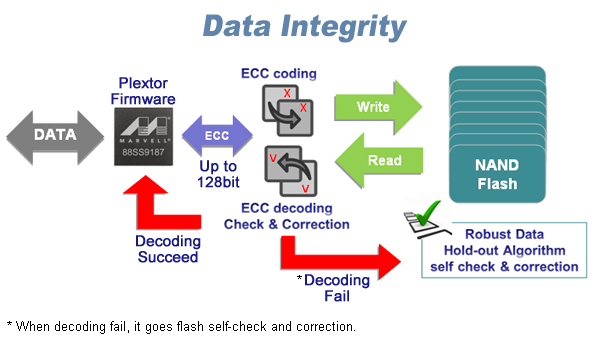

The combination of the latest Marvell® 88SS9187 6Gb/s SATA controllers powerful 128 Random Bit/2K BCH ECC (Error-Correction Codes), and the exclusive Plextor firmware based Robust Data Hold-out Algorithm gives the M5M unequaled data integrity.

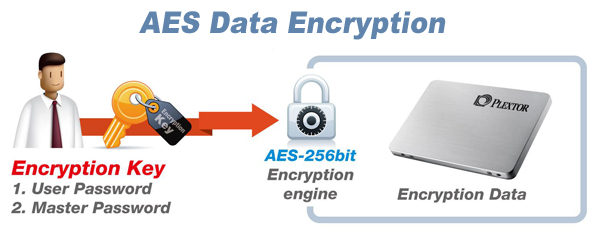

AES, the U.S. government standard encryption technology, is divided into three levels 128, 192, 256. The Plextor M5M uses the highest level of encryption - 256 bits. This level of SSD encryption is highly secure compared to BIOS or software based encryption and offers strong protection if the computer is stolen.

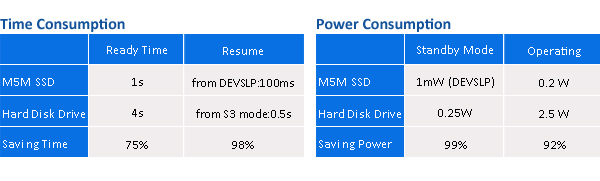

  • Supports the SATA Device Sleep standard incorporating the new DEVSLP state allowing the SSD to communicate in sleep mode.
  • With the DEVSLP mode, the M5M can reduce the power consumption to only 1 mW, and resumes from DEVSLP mode only in 100ms.
  • In order to meet the needs of consumers, the M5M delivers an effective operating and long battery life of the mobile device.

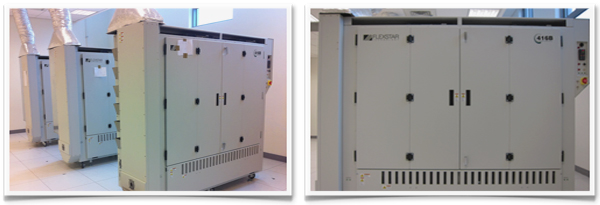

Plextors state-of-the-art testing facilities

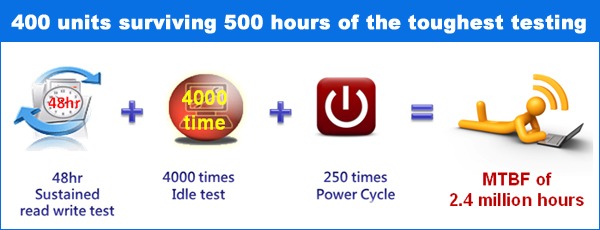

Plextor SSDs are required to pass some of the toughest tests in the industry before we even start production. Parallel tests involving 400 SSDs tested for 500 hours and the use of top grade FLEXSTAR® testing equipment to simulate extreme operating environments ensure that the M5M is built and tested for the highest level of stability in any working condition.

  • Extensively tested during development using the latest test equipment and a rigorous multistage testing procedure.
  • Passed Plextors enterprise-grade Zero Error standard of 500 hours of testing of 400 drives without errors.
  • Calculated mean time between failures (MTBF) is an impressive 2.4 million hours, showing the M5Ms reliability.


  • No outer case.
  • Designed for the limited space in ultra portable devices.
  • Highly compact JEDEC MO-300 form factor incorporating an mSATA 6GB/s connection.
  • Light weight (9g max.) and mini size (50.8 x 29.8 x 3.6 mm), only an eighth of the size of the standard 2.5 inch SSD drive.


  • The low power design can consume less power and provide extended battery life.

Technical Specs

Device Type Solid state drive - internal
Capacity 64 GB
Encryption Algorithm 256-bit AES
Form Factor mSATA
Interface SATA 6Gb/s
Buffer Size 128 MB
Features Native Command Queuing (NCQ), TRIM support, hardware encryption , S.M.A.R.T., 256-bit AES
Width 2 in
Depth 1.2 in
Height 0.1 in
Weight 0.32 oz
Drive Transfer Rate 600 MBps (external)
Internal Data Rate 540 MBps (read) / 160 MBps (write)
4KB Random Read 73000 IOPS
4KB Random Write 42000 IOPS
MTBF 2,400,000 hours
Expansion & Connectivity
Interfaces 1 x SATA 6 Gb/s - 52 pin mini-SATA
Software & System Requirements
OS Required Apple MacOS, Linux, Microsoft Windows
Compliant Standards UL, TUV, VCCI, C-Tick, BSMI, CB, FCC, RoHS, KCC
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 158 °F
Shock Tolerance 1500 g @ 1ms half-sine pulse
Vibration Tolerance 2.17 g @ 7-800 Hz (operating)
