Planar 55" Clarity Matrix LCD Video Wall with ERO (997-7117-00)

No Reviews | Add Review

Share Today!

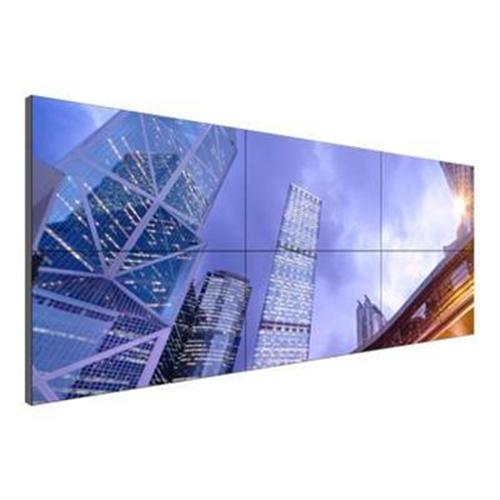

Planar 55" Clarity Matrix LCD Video Wall with ERO

Widget Not Available!!!


The Planar Clarity Matrix LX55HD-L-ERO Video Wall System (Landscape only) feature full HD resolution, LED backlighting and a mere 5.5mm bezel gap for outstanding tiled visual performance.
  • MacMall Part #: 9648351
  • Manufacturer Part #: 997-7117-00
  • Platform: Universal

The Planar Clarity Matrix LX55HD-L-ERO Video Wall System (Landscape only) feature full HD resolution, LED backlighting and a mere 5.5mm bezel gap for outstanding tiled visual performance. The Planar's optional ERO (Extended Ruggedness and Optics) technology is available on Clarity Matrix LX55HD-L-ERO video wall, providing an optically-bonded glass front that provides increased ruggedness and optical performance for public spaces or interactive touch applications. The LX55HD-L-ERO model feature standard brightness of 450 nits for controlled ambient lighting and are ideal for lighter usage environments.

Featuring Planar's EasyAxis Mounting System, Clarity Matrix LX55HD-L-ERO have the thinnest profile of any LCD video wall in the market. The combination of the EasyAxis mount plus the Clarity Matrix LCD modules' "blade" design result in video walls that measure a mere 3.6 inches in depth (screen-to-wall) as opposed to other designs that require 60% more clearance.

Planar's Big Picture Plus Processing is built into the Clarity Matrix LX55HD-L-ERO, allowing sources to be scaled across the entire video wall or any section of the video wall.

  • Landscape Only
  • 55" LCD Video Wall System
  • 1920 x 1080 Resolution
  • 5.5mm Tiled bezel width
  • 450 Nits brightness
  • Off-board electronics design reduces depth, weight, heat and points of potential failure
  • EasyAxis Mounting System optimizes mounting, alignment and service
  • Features Extended Ruggedness and Optics (ERO) technology for ruggedness and improved optical performance.

Technical Specs

Product Type LCD video wall
Power Consumption Operational 179 Watt
Diagonal Size 55"
Commercial Use Yes
TV Tuner No tuner
PC Interface DVI
Width 47.8 in
Depth 3.8 in
Height 27 in
LCD Display Technology S-PVA
Resolution 1920 x 1080
Display Format 1080p (FullHD)
LCD Backlight Technology LED backlight
Image Contrast Ratio 3500:1
Brightness 450 cd/m2
Viewing Angle 178 degrees
Viewing Angle (Vertical) 178 degrees
Response Time 8 ms
Backlight Life 50,000 hour(s)
Additional Features Fanless cooling system, landscape mode, protection glass
Stands & Mounts
Wall Mount Included Yes
Remote Control
Type Remote control
Connector Type 4 x DVI-D input ( 24 pin digital DVI ) ¦ 1 x DVI-D input ( 18 pin digital DVI (Single-Link) ) ¦ 1 x serial ( 9 pin D-Sub )
Included Accessories Software kit, Clarity Matrix EasyAxis mounting system, Clarity Matrix Quad Controller Module
Compliant Standards FCC Class A certified, EN 60950, CISPR 22, RoHS
Power Device Power supply
Nominal Voltage AC 120/230 V ( 50/60 Hz )
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 20 - 80% (non-condensing)
