Planar UltraLux Series LUX80 - 80" LED display - digital signage - 1080p (FullHD) - edge-lit - white (997-6948-00)

No Reviews | Add Review

Share Today!

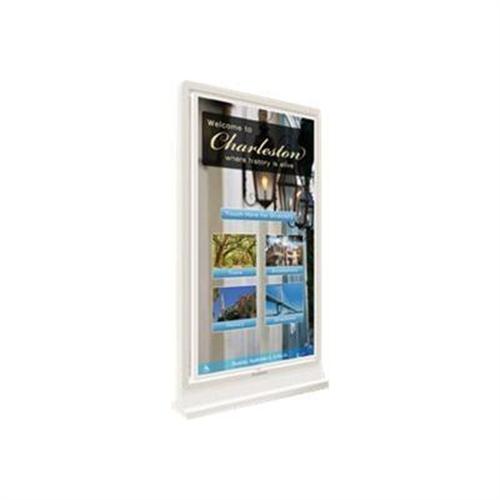

Planar UltraLux Series LUX80 - 80" LED display - digital signage - 1080p (FullHD) - edge-lit - white

Widget Not Available!!!


Planar UltraLux Series LUX80 - 80" LED display - digital signage - 1080p (FullHD) - edge-lit - white
  • MacMall Part #: 9317276
  • Manufacturer Part #: 997-6948-00
  • Platform: Universal

The Planar UltraLux Series is a family of 80" LCD displays that combine style and aesthetics with high performance display technology. From its sleek design to lasting 24x7 reliability, the Planar UltraLux Series is ideally suited for retail brand communications, advertising networks, conference rooms, wayfinding and other commercial applications.

Technical Specs

Product Type LED-backlit LCD flat panel display
Power Consumption Operational 350 Watt
Diagonal Size 80"
Commercial Use Yes - digital signage
TV Tuner No tuner
Video Interface HDMI
HDMI Ports Qty 1 ports
PC Interface VGA (HD-15), DisplayPort
Width 48 in
Depth 12.2 in
Height 84 in
Weight 279.98 lbs
Enclosure Color White
Resolution 1920 x 1080
Display Format 1080p (FullHD)
Image Aspect Ratio 16:9
LCD Backlight Technology LED backlight - edge-lit
Color Depth 16.7 million colors
Image Contrast Ratio 5000:1
Brightness 700 cd/m2
Viewing Angle 176 degrees
Viewing Angle (Vertical) 176 degrees
Response Time 4 ms
Commercial Features Digital signage
Additional Features Anti-reflection coating, portrait mode, vandal-proof
Stands & Mounts
Stand Included
Stand Design Floor standing
Stand Features Single-sided
Flat Panel Mount Interface 600 x 800 mm
Connector Type 1 x VGA input ( 15 pin HD D-Sub (HD-15) ) ¦ 1 x serial ( 9 pin D-Sub ) ¦ 1 x network ( RJ-45 ) ¦ 1 x DisplayPort ( 20 pin DisplayPort ) ¦ 1 x HDMI ( 19 pin HDMI Type A )
Compliant Standards CCC, FCC
Power Device Power supply
Nominal Voltage AC 120/230 V ( 50/60 Hz )
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Dimensions & Weight (Shipping)
Weight (Shipping) 465.2 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 20 - 90%
