Planar 55" 120Hz 1080p Edge-Lit LED High Performance LCD Monitor (997-6490-00)

No Reviews | Add Review

Share Today!

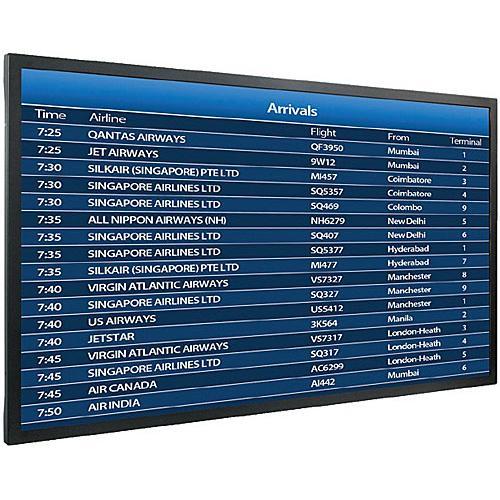

Planar 55" 120Hz 1080p Edge-Lit LED High Performance LCD Monitor

Widget Not Available!!!


16:9 Aspect Ratio, 4000:1 Contrast Ratio, 1920 x 1080 Native Resolution, 178/178 Degrees H/V Viewing Angle, 450 cd/m2 Brightness, 6.5ms Response Time, (2) HDMI Inputs, (1) Component Input, (1) Composite Input
  • MacMall Part #: 8958246
  • Manufacturer Part #: 997-6490-00
  • Platform: Universal

The Planar ep55L is a 55" high performance LCD monitor using edge-lit LED backlight technology. The Planar ep55L features full HD resolution in an ultra-thin, lightweight design that provides superior energy efficiency for demanding 24x7 applications. Additional features of the Planar ep55L include ambient light control, industrial metal bezel for durability, wide range of source connectivity, RS-232, and LAN control. The Planar ep55L's logo-free design supports either portrait or landscape orientation that can be color customized to suit any digital signage application.

Technical Specs

Product Type LED-backlit LCD flat panel display
Power Consumption Operational 226 Watt
Diagonal Size 55"
TV Tuner No tuner
Video Interface Component, composite, HDMI, S-Video
HDMI Ports Qty 2 ports
PC Interface DVI, VGA (HD-15), HDMI, DisplayPort
Width 50 in
Depth 1.8 in
Height 29 in
Weight 63.93 lbs
Resolution 1920 x 1080
Display Format 1080p (FullHD)
Image Aspect Ratio 16:9
LCD Backlight Technology LED backlight - edge-lit
Image Contrast Ratio 4000:1
Brightness 450 cd/m2
Viewing Angle 178 degrees
Viewing Angle (Vertical) 178 degrees
Response Time 6.5 ms
V-Sync Rate at Max Res. 120 Hz
Additional Features Ambient light sensor (ALS)
Stands & Mounts
Flat Panel Mount Interface 400 x 400 mm
Remote Control
Type Remote control
Connector Type 1 x composite video input ( RCA phono ) ¦ 1 x S-Video input ( 4 pin mini-DIN ) ¦ 1 x component video input ( RCA phono x 3 ) ¦ 2 x HDMI ( 19 pin HDMI Type A ) ¦ 2 x audio line-in ( mini-phone stereo 3.5 mm ) ¦ 1 x audio line-out ( mini-phone stereo 3.5 mm ) ¦ 1 x VGA input ( 15 pin HD D-Sub (HD-15) ) ¦ 1 x DVI-D input ( 24 pin digital DVI ) ¦ 1 x DisplayPort input ( 20 pin DisplayPort ) ¦ 1 x network ( RJ-45 ) ¦ 1 x serial ( 9 pin D-Sub )
Compliant Standards FCC Class A certified, EN 60950
Power Device Power supply - internal
Nominal Voltage AC 120/230 V ( 50/60 Hz )
Power Consumption Stand by / Sleep 1 Watt
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Dimensions & Weight (Shipping)
Weight (Shipping) 79.4 lbs
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 20 - 80% (non-condensing)
