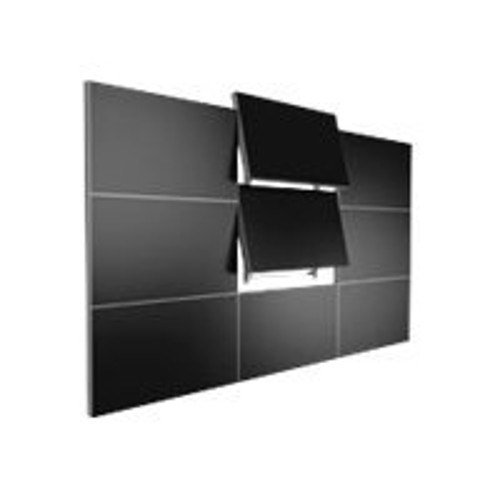

Planar Clarity Matrix LCD Video Wall- 3x3 Touch - 46" LCD flat panel display (997-6648-00)

No Reviews | Add Review

Share Today!

Planar Clarity Matrix LCD Video Wall- 3x3 Touch - 46" LCD flat panel display

Widget Not Available!!!


Planar Clarity Matrix LCD Video Wall- 3x3 Touch - 46" - commercial use LCD flat panel display - 720p
  • MacMall Part #: 8913378
  • Manufacturer Part #: 997-6648-00
  • Platform: Universal

The Clarity Matrix is a LCD video wall system that utilizes 46" narrow bezel LCD to provide outstanding tiled visual performance, support extended operation and requires minimal installation space. This unique design makes the most of the 7.3mm panel-to-panel gap to create near seamless images across a video wall. The Clarity Matrix design includes the thinnest profile in the industry, an integrated adjustable mount that allows for perfect alignment from panel to panel, and off-board electronics and power supplies which results in less heat, weight, points-of-failure and noise at the LCD module.

Technical Specs

Product Type LCD flat panel display
Power Consumption Operational 350 Watt
Diagonal Size 46"
Diagonal Size (cm) 117 cm
Targeting Commercial use
TV Tuner No tuner
PC Interface DVI
HDCP Compatible Yes
Video Wall Components Qty 9
Width 40.4 in
Depth 3.6 in
Height 22.8 in
Weight 61.9 lbs
Resolution 1366 x 768
Display Format 720p
Image Aspect Ratio 16:9
LCD Backlight Technology Cold Cathode Fluorescent Lamp (CCFL)
Color Depth 16.7 million colors
Image Contrast Ratio 3000:1
Brightness 700 cd/m2
Color Gamut 72% (NTSC)
Viewing Angle 178 degrees
Viewing Angle (Vertical) 178 degrees
Response Time 8 ms
Backlight Life 50,000 hour(s)
Additional Features Fanless cooling system, progressive scan
Video Features
Input Video Formats 1080p
Remote Control
Type Remote control
Connector Type 5 x DVI-D input ( 24 pin digital DVI ) ¦ 1 x serial ( 9 pin D-Sub )
Stands & Mounts
Wall Mount Included Yes
Included Accessories Touchscreen controller
Compliant Standards FCC Class A certified, EN 60950, CISPR 22, RoHS
Nominal Voltage AC 120/230 V ( 50/60 Hz )
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Dimensions & Weight (Shipping)
Weight (Shipping) 649.9 lbs
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 95 °F
Humidity Range Operating 20 - 80% (non-condensing)
