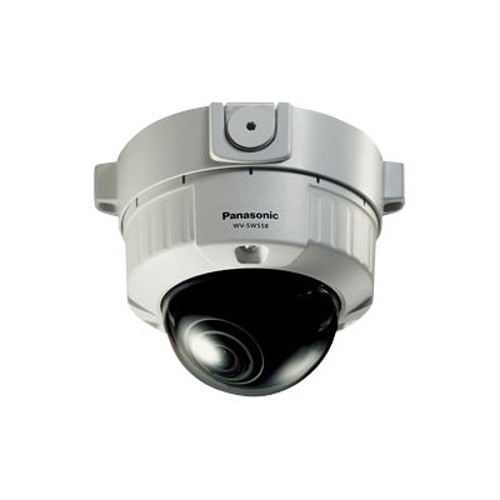

Panasonic OUTDOOR 1080P HD DOME SD NETWORK CAMERA (WV-SW558)

Panasonic
No Reviews | Add Review

Share Today!


Panasonic OUTDOOR 1080P HD DOME SD NETWORK CAMERA

Widget Not Available!!!

Overview

OUTDOOR 1080P HD DOME SD NETWORK CAMERA
  • MacMall Part #: 9336070
  • Manufacturer Part #: WV-SW558
  • UPC: 885170061873
  • Platform: Universal


OUTDOOR 1080P HD DOME SD NETWORK CAMERA

Technical Specs

General
Device Type Network CCTV camera
Audio Support Yes
Connectivity Technology Wired
Width 7.5 in
Depth 6.5 in
Height 5.7 in
Weight 3.5 lbs
Camera
Type Color - Day&Night - fixed dome - outdoor - vandal-proof
Video Format NTSC
Digital Video Format H.264
Max Digital Video Resolution 1920 x 1080
Digital Zoom 4
Exposure Range 1/30 sec - 1/10000 sec
Minimum Illumination 0.5 lux - color - F1.3 - shutter 1/30 sec / AGC High ¦ 0.3 lux - B&W - F1.3 - shutter 1/30 sec / AGC High ¦ 0.03 lux - color - F1.3 - shutter 16/30 sec / AGC High ¦ 0.02 lux - B&W - F1.3 - shutter 16/30 sec / AGC High
Video Capture 1920 x 1080 @ 30 fps ¦ 640 x 360 @ 30 fps ¦ 320 x 180 @ 30 fps ¦ 1280 x 720 @ 30 fps ¦ 1280 x 960 @ 30 fps ¦ 640 x 480 @ 30 fps ¦ 320 x 240 @ 30 fps ¦ 2048 x 1536 @ 15 fps ¦ 1280 x 960 @ 15 fps
Supported Image Formats JPEG
Still Image Capture Resolution 1280 x 720, 640 x 480, 1280 x 960, 320 x 240, 2048 x 1536, 1920 x 1080, 640 x 360, 320 x 180
Features RGB primary color filter, water resistant, shock resistant, dust resistant, white balance, progressive scanning, cropping an image, auto gain control, 16:9 widescreen mode, SD-card slot, Power over Ethernet, Auto Back Focus (ABF), Adaptive Black Stretch (ABS), Wide Dynamic Range (WDR), 3D Noise Reduction Technology, Open Network Video Interface Forum (ONVIF), face detection, Privacy Mask Function, Super Dynamic technology, Auto Light Control (ALC), UniPhier LSI platform, Face Super Dynamic technology, Intelligent IR Technology, Variable Image Quality on Specified area (VIQS), Video Motion Detection Technology, Lens Distortion Compensation (LDC), Automatic Tracing White (ATW), prioritized stream control
Image Sensor
Type 3.1 MP MOS 1/3"
Lens Construction
Type Vari-focal
Optical Zoom 3.6 x
Focal Length 2.8 mm - 10 mm
Lens Iris F/1.3-3.0 auto iris
Focus Adjustment Automatic, manual
Min Focus Distance 11.8 in
Horizontal Field of View (degree) 24.2 - 86.6
Panning
Range (degree) -160 to +180
Titling
Range (degree) -100 to +100
Interfaces
Video Composite video
Network Interface Ethernet 10Base-T/100Base-TX
Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, IGMP, SSL
Alarm Inputs Qty 1
Alarm Outputs Qty 1
Expansion / Connectivity
Interfaces 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x video - composite video output - RCA ¦ 1 x audio - line-in/microphone - mini-phone stereo 3.5 mm ¦ 1 x audio - line-out - mini-phone stereo 3.5 mm
Miscellaneous
Included Accessories Mounting bracket, waterproof tape, base cover
Compliant Standards UL, cUL, FCC Part 15 B, DOC, ICES-003 Class A, UL 60950-1, CAN/CSA C22.2 No. 60950-1
Color Light gray
Power
Power Requirements DC 12 V / PoE
Software / System Requirements
Software Included Drivers & Utilities
OS Required Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP SP3
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 122 °F
Relative Humidity (operating) 0 - 90% (non-condensing)
