Opticon CR2 - Barcode scanner - handheld - decoded - USB (CC-CR2012-U1-02)

No Reviews | Add Review

Share Today!

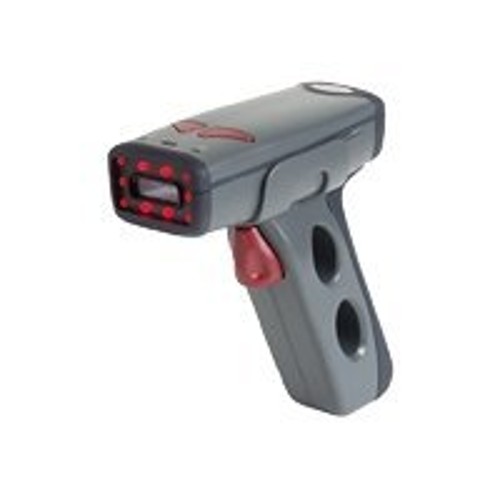

Opticon CR2 - Barcode scanner - handheld - decoded - USB

Widget Not Available!!!


Opticon CR2 - Barcode scanner - handheld - decoded - USB
  • MacMall Part #: 9119368
  • Manufacturer Part #: CC-CR2012-U1-02
  • Platform: Universal

The Opticon CR2 can read and decode all existing barcode symbols. Whether you are reading smaller, high density two-dimensional codes, or larger, low density linear codes, the CR2 will outperform all other devices in its class.The CR2's decode performance is continuously improved with Dynamic Optimization Technology (DOT), a revolutionary technology which automatically improves decode performance by continuously processing resolution, illumination, and image field settings for the fastest possible symbol identification.The CR2's user feedback systems include a choice of a beep, vibration and/or status LEDs along with a laser targeting technique for audible, tactile and visual performance feedback.For wireless communications, a Bluetooth radio is available and compatible with a wide range of systems, or can be used in conjunction with a specially designed modem that provides data and pairing encryption for unsurpassed wireless data security.The CR2 can be accompanied by a variety of accessories, making it is the only product available in: batch, cabled or wireless formats; hand-held, ruggedized cabled, or battery handle use-case scenarios; and, lanyard hook attachment or presentation stand form-factors..

Technical Specs

Type Barcode scanner - handheld
Interface Type USB
Minimum Bar Width 4.2 mil
Scan Element Type CMOS
Light Source Wave Length 630 nm
Scan Mode Single-pass
Max Working Distance 20 in
Skew (Degrees) 60
Pitch (Degrees) 60
Print Contrast Signal (PCS) 35%
Decode Capability EAN/JAN, Code 93, Matrix 2 of 5, Code 39, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, Postnet , PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, Japanese Post, Kix (Netherlands) Post, Codablock F, Trioptic Code, EAN-UCC Composite, MacroPDF417, OCR-A, OCR-B, Hong Kong 2 of 5, Royal Mail, Micro QR code, Pharmacode
TTL Decoding Decoded
Connectivity Technology Wired
OK Notification Beeper, LED indicator, vibration
Features Triggered, Reduced Space Symbology (RSS)
Clock Speed 400 MHz
Flash 3.8 MB
Expansion / Connectivity
Interfaces 1 x USB
Included Accessories Holder
Cables Included 1 x USB cable
Compliant Standards FCC, RoHS, Laser Class 2, WEEE
Battery 1 x lithium ion
Dimensions & Weight
Width 1.8 in
Depth 4.3 in
Height 13 in
Weight 2.5 oz
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 5 - 95% (non-condensing)
Drop Specification 6 ft to concrete
