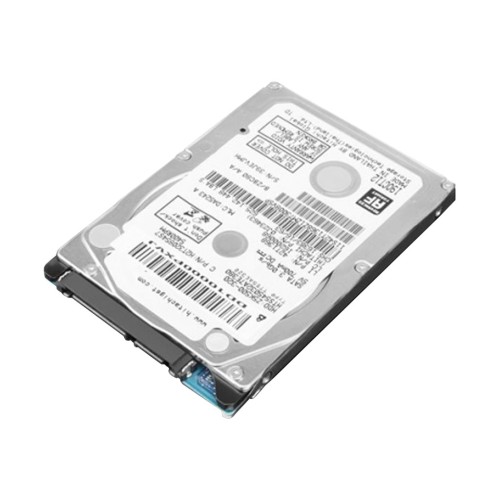

Lenovo ThinkPad 1TB 5400rpm 9.5mm SATA3 Hard Drive (0B47320)

Lenovo
No Reviews | Add Review

Share Today!


Lenovo ThinkPad 1TB 5400rpm 9.5mm SATA3 Hard Drive

Widget Not Available!!!

Overview

The ThinkPad 1TB 5400rpm 9.5mm SATA3 Hard Drive option is our largest capacity hard drive provides TB capacity in a smaller form factor. This configuration consists of two 500GB platter design providing the largest capacity available in a 2.5inch drive.
  • MacMall Part #: 9738128
  • Manufacturer Part #: 0B47320
  • UPC: 652977183585
  • Platform: Universal


The ThinkPad 1TB 5400rpm 9.5mm SATA3 Hard Drive option is our largest capacity hard drive provides TB capacity in a smaller form factor. This configuration consists of two 500GB platter design providing the largest capacity available in a 2.5inch drive. The advantage of this design enables the drive height to go from a larger 12.5mm drive to the current 9.5mm height enabling usage in smaller machine designs providing maximum capacity. The advance format of 4k sector emulates the 512 sector drives while delivering higher capacity points along with improved error correction capabilities. In addition to the advanced format, this drive features SATA 6.0Gb/s data transfer capabilities.

Technical information
  • 2.5-inch diameter, 9.5-mm height
  • Up to 1000 GB formatted capacity
  • 4kB /sector
  • No-ID recording format
  • SATA Interface conforming to Serial ATA International Organization:Serial ATA Revision 3
  • Intergrated controller
  • Multi zone recording
  • Segmented Buffer with write cache
  • Rotary voice coil motor actuator
  • Enhanced ECC
  • Load/unload mechanism
  • Embedded sector Servo
Performance specifications
  • Interface: Serial ATA
  • Formatted capacity: Up to 1000 GB
  • Rotational speed: 5400 rpm
  • Number of disks per drive: 2
  • Number of heads: 4
  • Data buffer size: 8 MB
  • Interface transfer rate: 6.0Gb/sec
  • Disk transfer: 1470 Mb/s
  • Average read seek time: 12 ms
  • 0.5 Watts at Low power idle state
  • Power on ready: 3.5 sec

Technical Specs

General
Device Type Hard drive - internal
Capacity 1 TB
Form Factor 2.5"
Interface SATA 6Gb/s
Buffer Size 8 MB
Features Load/unload technology, No-ID, Rotary Voice Coil Motor (RVCM)
Width 2.7 in
Depth 3.9 in
Height 0.4 in
Weight 3.6 oz
Performance
Drive Transfer Rate 600 MBps (external)
Seek Time 12 ms (average)
Spindle Speed 5400 rpm
Expansion & Connectivity
Interfaces 1 x SATA 6 Gb/s
Compatible Bays 1 x internal - 2.5"
Miscellaneous
Compliant Standards UL, TUV, C-Tick, BSMI, cUL, RoHS, KC
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - replacement - 1 year
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 131 °F
Humidity Range Operating 8 - 90% (non-condensing)
Compatibility Information
Designed For Lenovo ThinkPad L440 ¦ Lenovo ThinkPad L540 ¦ Lenovo ThinkPad T431s 20A9, 20AA, 20AC ¦ Lenovo ThinkPad T440 ¦ Lenovo ThinkPad T440p ¦ Lenovo ThinkPad T440s 20AR ¦ Lenovo ThinkPad T540p ¦ Lenovo ThinkPad W540 ¦ Lenovo ThinkPad X230s 20A3, 20AH ¦ Lenovo ThinkPad X240
