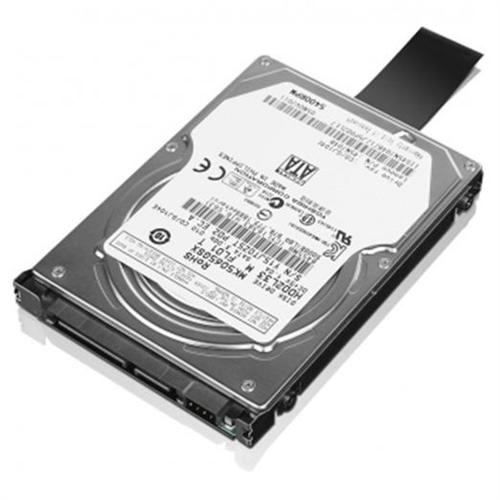

Lenovo ThinkPad 1TB 5400rpm SATA 3.0Gb/s 9.5mm 4k Hard Drive (0A65633)

Lenovo
No Reviews | Add Review

Share Today!


Lenovo ThinkPad 1TB 5400rpm SATA 3.0Gb/s 9.5mm 4k Hard Drive

Widget Not Available!!!

Overview

The ThinkPad 1TB 5400rpm SATA 3.0Gb/s 9.5mm 4k Hard Drive option is our largest capacity hard drive provides TB capacity in a smaller form factor.
  • MacMall Part #: 9233952
  • Manufacturer Part #: 0A65633
  • UPC: 887037242340
  • Platform: PC



The ThinkPad 1TB 5400rpm SATA 3.0Gb/s 9.5mm 4k Hard Drive option is our largest capacity hard drive provides TB capacity in a smaller form factor. This configuration consists of two 500GB platter design providing the largest capacity available in a 2.5inch drive. The advantage of this design enables the drive height to go from a larger 12.5mm drive to the current 9.5MM height enabling usage in smaller machine designs providing maximum capacity. The Advance Format or 4k sector emulates the 512 sector drives while delivering higher capacity points along with improved error correction capabilities. In addition to the advanced format, this drive features SATA 3.0Gb/s data transfer capabilities.

Technical information
  • 2.5-inch diameter, 9,5-mm height
  • Up to 1000 GB formatted capacity
  • 4kB /sector
  • No-ID recording format
  • SATA Interface conforming to Serial ATA International Organization:Serial ATA Revision 2.6.
  • Intergrated controller.
  • Multi zone recording.
  • Segmented Buffer with write cache.
  • Rotary voice coil motor actuator
  • Enhanced ECC.
  • Load/unload mechanism.
  • Embedded sector Servo
Performance specifications
  • Interface: Serial ATA
  • Formatted capacity: Up to 1000 GB
  • Rotational speed: 5400 rpm
  • Number of disks per drive: 2
  • Number of heads: 4
  • Data buffer size: 8 MB
  • Interface transfer rate: 3.0Gb/sec
  • Maximum media transfer rate: 998MB/sec
  • Average read seek time: 12 ms
  • 0.5 Watts at Low power idle state

Technical Specs

General
Device Type Hard drive - internal
Capacity 1 TB
Form Factor 2.5" Slim Line
Interface SATA 3Gb/s
Buffer Size 8 MB
Bytes per Sector 4000
Features Load/unload technology, No-ID, Enhanced Error Correction Code, Rotary Voice Coil Motor (RVCM)
Width 2.7 in
Depth 3.9 in
Height 0.4 in
Weight 3.6 oz
Performance
Drive Transfer Rate 300 MBps (external)
Seek Time 12 ms (average)
Spindle Speed 5400 rpm
Expansion & Connectivity
Interfaces 1 x SATA 3 Gb/s
Compatible Bays 1 x internal - 2.5" Slim Line
Miscellaneous
Compliant Standards UL, TUV, C-Tick, BSMI, cUL, MIC, RoHS
Pricing Type Customer-replaceable Unit (CRU)
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 140 °F
Humidity Range Operating 8 - 90% (non-condensing)
Compatibility Information
Designed For Lenovo ThinkPad T420 ¦ Lenovo ThinkPad T420i ¦ Lenovo ThinkPad T420s ¦ Lenovo ThinkPad T420si ¦ Lenovo ThinkPad T520 ¦ Lenovo ThinkPad T520i ¦ Lenovo ThinkPad T530 ¦ Lenovo ThinkPad T530i ¦ Lenovo ThinkPad W520 ¦ Lenovo ThinkPad W530
