LSI Logic 7204XP-LC - Host bus adapter - PCI-X low profile - 4Gb Fibre Channel x 2 - 850 nm (LSI00170)

LSI Logic
No Reviews | Add Review

Share Today!

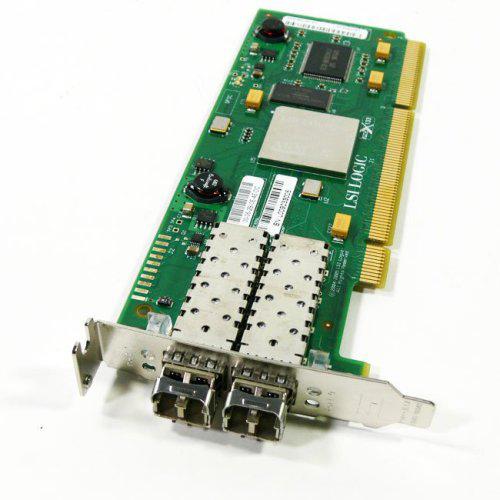

LSI Logic 7204XP-LC - Host bus adapter - PCI-X low profile - 4Gb Fibre Channel x 2 - 850 nm

Widget Not Available!!!


LSI LSI7204XP-LC - Host bus adapter - PCI-X low profile - 4Gb Fibre Channel x 2 - 850 nm
  • MacMall Part #: 7704713
  • Manufacturer Part #: LSI00170
  • UPC: 0830343006564
  • Platform: Universal

This affordable dual channel 4Gb host bus adapter offers twice the performance of 2Gb at a small premium. Users are assured investment protection, as the LSI7204XP-LC is fully compatible with 1 and 2Gb legacy products. You'll attain unsurpassed performance for your data-intensive and high-bandwidth applications, while utilizing LSI's Fusion-MPT architecture to accelerate your time to market.

Technical Specs

Device Type Host bus adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI-X / 133 MHz
PCI Specification Revision PCI-X 1.0a
Bus Voltage 3.3 V
Ports 4Gb Fibre Channel x 2
Connectivity Technology Wired
Data Link Protocol 4Gb Fibre Channel
Fibre Channel FC-AL-2, FC-FCP, FC-FLA, FC-PH, FC-PLDA, FCA-IP, FC-Tape, FCP-2
Data Transfer Rate 4.24 Gbps
Optical Wave Length 850 nm
Status Indicators Link activity
Features Firmware upgradable
Expansion / Connectivity
Expansion Slots 2 (total) / 0 (free) x SFP
Interfaces 2 x 4Gb Fibre Channel - LC multi-mode x 2
Compatible Slots 1 x PCI-X / 133 MHz - low-profile
Included Accessories Low-profile bracket
Cables Included Fibre Channel cable ( external )
Compliant Standards FCC Class A certified, VCCI, C-Tick, UL 94 V-0, RoHS
Software / System Requirements
Software Included Drivers & Utilities
OS Required Microsoft Windows 2000, Novell NetWare 5.1, SunSoft Solaris 2.6 or later, FreeBSD, Novell NetWare 6.x, Microsoft Windows XP, UnixWare 7.x, SuSE Linux Enterprise Server 8, Microsoft Windows Server 2003, SCO OpenServer 5.x, Red Hat Enterprise Linux 3, SuSE Linux Enterprise Server 9, Red Hat Enterprise Linux 4, Red Hat Fedora Core, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5
Additional Requirements CD-ROM
Dimensions & Weight
Depth 6.6 in
Height 2.5 in
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 - 90%
