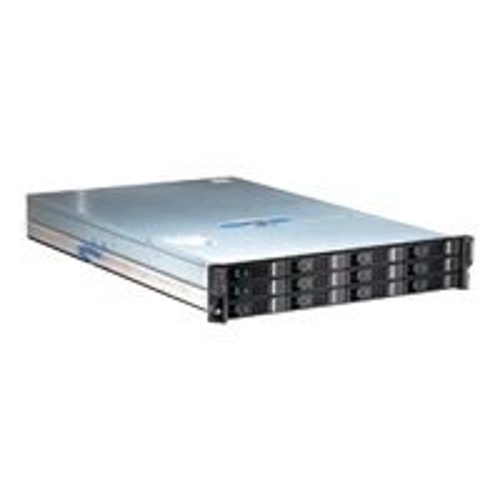

Intel Storage Server SSR212MC2 - Hard drive array - 12 bays ( SATA-300 / SAS ) - 0 x HDD - iSCSI (external) - rack-mountable - 2U (SSR212MC2RNA)

No Reviews | Add Review

Share Today!

Intel Storage Server SSR212MC2 - Hard drive array - 12 bays ( SATA-300 / SAS ) - 0 x HDD - iSCSI (external) - rack-mountable - 2U

Widget Not Available!!!


Intel Storage Server SSR212MC2 - Hard drive array - 12 bays ( SATA-300 / SAS ) - 0 x HDD - iSCSI (external) - rack-mountable - 2U
  • MacMall Part #: 7402196
  • Manufacturer Part #: SSR212MC2RNA
  • UPC: 037332033499
  • Platform: Universal

Build a flexible foundation for your businesses, whether it's small or enterprise. Couple the Intel Storage Server SSR212MC2 with one of a number of different industry software solutions to create an application server with internal storage (DAS) or as a dedicated network storage appliance (NAS or SAN).Get performance and flexibility with a storage server built to support quad-core and dual-core. The SSR212MC2 is a 2u rack mount storage system that supports 12 enterprise-class Serial Attached SCSI (SAS) or high-capacity Serial ATA (SATA) HDDs. Flexible network connectivity includes Ethernet, Fiber Channel or Infiniband via add-in cards.

Technical Specs

Device Type Hard drive array
Enclosure Type Rack-mountable - 2U
Enclosure Color Black, silver
Localization North America
Supported Devices / Modules Qty 12
Supported Drives SATA-300 / SAS
Max Supported Capacity 9 TB
HDD Array External Interface iSCSI
Storage Controller
Type RAID - plug-in card ( PCI Express x4 )
Interface Type SATA 3Gb/s / SAS
Supported Devices Hard drive
Max Storage Devices Qty 12
RAID Level RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Hard Drive
Type HDD - hot-swap
Capacity 0
Interface Type SATA 3Gb/s / SAS
Expansion / Connectivity
Expansion Bays 12 (total) / 12 (free) - 3.5" - hot-swap
Expansion Slots 2 (total) / 2 (free) x processor ¦ 8 (total) / 8 (free) x memory - FB-DIMM 240-pin ¦ 1 (total) / 1 (free) x PCI Express x8 - low-profile ¦ 2 (total) / 1 (free) x PCI Express x4 - low-profile ¦ 1 (total) / 1 (free) x PCI-X - low-profile
Interfaces 12 x SAS ¦ 4 x USB 2.0 - 4 pin USB Type B ¦ 1 x serial - 9 pin D-Sub (DB-9) ¦ 2 x Ethernet 1000Base-T - RJ-45 ¦ 1 x keyboard / mouse - 6 pin mini-DIN (PS/2 style) ¦ 1 x VGA - 15 pin HD D-Sub (HD-15)
Rack Mounting Kit Optional
Compliant Standards VCCI, GOST, EN 60950, EN 61000-3-2, EN55022, GS, ICES-003, RRL, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CISPR 22, CSA 22.2 No. 60950, FCC Part 15, MIC, AS/NZS 3548, IRAM, RoHS, BSMI CNS 13438
Power Device 2 x internal power supply - hot-plug
Max Supported Qty 2
Power Redundancy Yes
Power Redundancy Scheme 1+1
Power Provided 850 Watt
Dimensions & Weight
Width 17.6 in
Depth 27.8 in
Height 3.5 in
Weight 44.09 lbs
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Sound Emission 7 dBA
