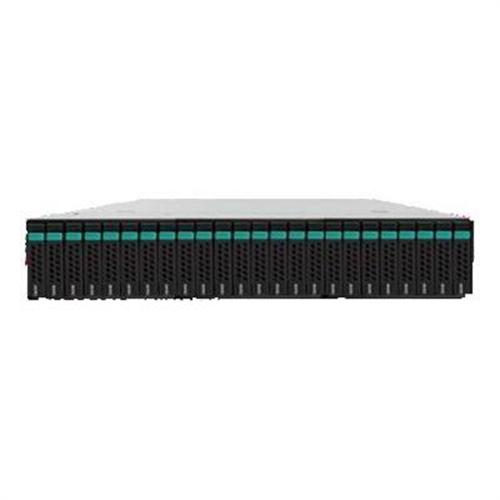

Intel Server System R2224BB4GCSAS - no CPU - 0 MB - 0 GB (R2224BB4GCSAS)

Intel
No Reviews | Add Review

Share Today!


Intel Server System R2224BB4GCSAS - no CPU - 0 MB - 0 GB

Widget Not Available!!!

Overview

Intel Server System R2224BB4GCSAS - Server - rack-mountable - 2U - 2-way - RAM 0 MB - SAS - hot-swap 2.5" - no HDD - GigE - Monitor : none.
  • MacMall Part #: 9088117
  • Manufacturer Part #: R2224BB4GCSAS
  • Platform: Universal


The Intel Server System R2200BB family takes full advantage of the new Intel Xeon processor E5-2400 product family features and was engineered for energy efficient performance. Optimizations include a spread core design of the CPU sockets, 12V power input, high efficiency VR components and design as well as 80PLUS Platinum certified power supplies and customized fan speed controls to deliver the best available price/performance/watt.Twenty-four available 2.5" HDDs, six available PCIe Gen3 risers, four integrated 1 GbE NICs plus the optional Intel Remote Management Module 4 means the the Intel Server System R2200BB family provides the expansion and flexibility to meet a majority of data center, cloud, and hosting applications.

Technical Specs

General
Type Server
Product Form Factor Rack-mountable - 2U
Server Scalability 2-way
Front Accessible Bays Qty 1
Hot-Swap Bays Qty 24
Processor / Chipset
CPU No CPU
Max CPU Qty 2
CPU Upgradability Upgradable
CPU Socket LGA1356 Socket
Chipset Type Intel C602-A
RAM
Installed Size 0 MB / 384 GB (max)
Technology DDR3 SDRAM - ECC
Form Factor DIMM 240-pin
Features Unbuffered, registered, quad channel memory architecture, Load-Reduced DIMM (LRDIMM)
Hard Drive
Type No HDD
Storage Controller
Type 1 x SATA - integrated
Controller Interface Type SATA 6Gb/s
Channel Qty 2
Storage Controller (2nd)
Type 1 x RAID - integrated
Controller Interface Type SATA 3Gb/s / SAS
Channel Qty 8
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Monitor
Monitor Type None.
Graphics Controller
Type Integrated
Video Memory 16 MB DDR3 SDRAM
Video Interfaces VGA
Networking
Type Integrated
Ethernet Ports 4 x Gigabit Ethernet
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol IPMI 2.0
Expansion / Connectivity
Bays 24 (total) / 24 (free) x hot-swap 2.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line
Slots 2 (total) / 2 (free) x CPU ¦ 12 (total) / 12 (free) x DIMM 240-pin ¦ 2 (total) / 2 (free) x PCIe 3.0 x4 ¦ 4 (total) / 4 (free) x PCIe 3.0 x8 ¦ 1 (total) / 1 (free) x expansion slot
Interfaces 2 x VGA ( 1 front, 1 rear ) ¦ 7 x USB 2.0 ¦ 1 x serial ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x serial
Miscellaneous
Included Accessories SAS expander, 2 x CPU Heatsink, air duct, 2 x riser cards, rack rail kit
Cables Included Serial ATA / SAS cable ( 8 pcs.)
Power
Device Type Power supply
Power Redundancy Yes
Power Redundancy Scheme 1+1
Installed Qty 2
Max Supported Qty 2
Nominal Voltage AC 120/230 V ( 50/60 Hz )
Power Provided 750 Watt
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Dimensions & Weight
Width 16.9 in
Depth 28 in
Height 3.4 in
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
