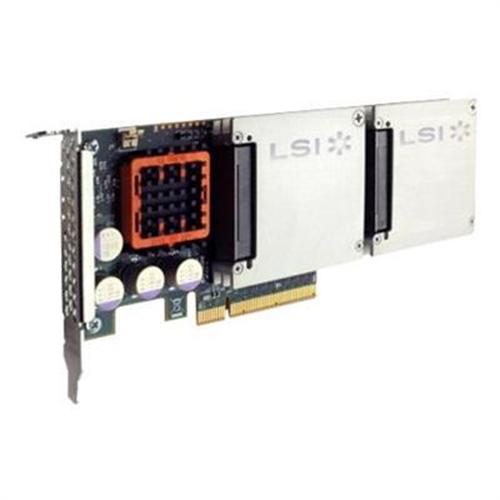

IBM High IOPS MLC Modular Adapter - solid state drive - 600 GB - PCI Express 2.0 x8 (90Y4365)

No Reviews | Add Review

Share Today!

IBM High IOPS MLC Modular Adapter - solid state drive - 600 GB - PCI Express 2.0 x8

Widget Not Available!!!


IBM High IOPS MLC Modular Adapter - Solid state drive - 600 GB - internal - PCI Express 2.0 x8 - for BladeCenter HS23 7875; System x3650 M4 7915; x3650 M4 HD; x3850 X5 7143; x3950 X5 7143
  • MacMall Part #: 9460856
  • Manufacturer Part #: 90Y4365
  • Platform: Universal

The family of IBM High IOPS Modular Adapters is the ultimate performance solution for embedded direct-attached storage for IBM System x, IBM BladeCenter, and IBM Flex System. Designed to offer high performance with low latency and a low CPU burden, these adapters can improve the performance of applications regardless of the mix of reads and writes.The IBM High IOPS Modular Adapters are built on the latest enterprise-level solid-state technologies and include sophisticated advanced features to help deliver consistently high levels of performance, endurance, and reliability under some of the most demanding conditions. The robust technology in these adapters helps optimize the number of program cycles to the flash storage, efficiently extending the rated endurance of flash storage.

Technical Specs

Device Type Solid state drive - internal
Capacity 600 GB
NAND Flash Memory Type Enterprise multi-level cell (eMLC)
Interface PCI Express 2.0 x8
Features Built-in Wear Advanced Leveling, DuraWrite technology, Advanced Read Disturb Management, Advanced Garbage Collection, Error Correction Code (ECC)
Width 2.7 in
Depth 6.6 in
Height 0.6 in
Weight 8 oz
4KB Random Read 172000 IOPS
4KB Random Write 79000 IOPS
Power Consumption 25 Watt ( active )
Software & System Requirements
OS Required Microsoft Windows Server 2008 R2, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, VMware ESX 4.1, VMware ESXi 4.1, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5 x64 Edition, Red Hat Enterprise Linux 6 x64 Edition
Included Accessories Full height bracket, 2U bracket
Compliant Standards UL, TUV, VCCI, C-Tick, BSMI, cUL, VDE, IEC 60950, EMC, MIC, FCC, KCC
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 8 - 85% (non-condensing)
Compatibility Information
Designed For IBM BladeCenter HS23 7875 ¦ IBM System x3650 M4 7915 ¦ IBM System x3650 M4 HD ¦ IBM System x3850 X5 7143 ¦ IBM System x3950 X5 7143
