Hewlett Packard Enterprise 1405-5G v2 Switch (J9792A)

Hewlett Packard Enterprise
No Reviews | Add Review

Share Today!

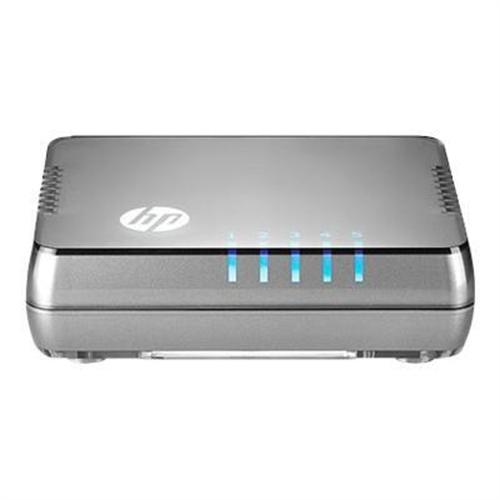

Hewlett Packard Enterprise 1405-5G v2 Switch

Widget Not Available!!!


5 RJ-45 autosensing 10/100/1000 ports, Auto-MDIX, 10 Gbps Routing/switching capacity, up to 7.4 million pps Throughput, 1MB packet buffer size
  • MacMall Part #: 9245638
  • Manufacturer Part #: J9792A
  • UPC: 886112518172
  • Platform: Universal

HP 1405 Small Office Switch Series consists of plug-and-play unmanaged 5-, 8-, and 16-port Layer 2 switches designed for small offices, in both Gigabit and Fast Ethernet configurations. The switches are preconfigured for fast, easy installation, with connections using low-cost Ethernet copper cabling. They support administration-friendly features such as auto-negotiation and automatic cable type detection (MDI/MDIX). They are Class B certified and approved for both business and home office locations. Version 2 5- and 8-port models have energy-saving features such as Energy Efficient Ethernet (EEE) and idle-port powerdown. All models are fanless for quiet and "green" operation, and are designed for high reliability, long life, low power consumption, and low total cost of ownership. These switches come with a 3-year warranty, covering unit and adapter, and 3-year access to HP phone support.

Quality of Service (QoS)
  • IEEE 802.1p prioritization with DSCP: v2 devices deliver data to devices based on the priority and type of traffic using Differentiated Services Code Point (DSCP)
  • Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports
  • Jumbo packet support (Gigabit Ethernet models only): supports up to 9216-byte frame size to improve the performance of large data transfers
  • Mini-Jumbo packet support (Fast Ethernet models only): supports up to 1.5K-byte or 2K-byte frame size to improve the performance of large data transfers
  • Half-/Full-duplex auto-negotiating capability on every port: doubles the throughput of every port
Ease of use
  • Flow control: helps ensure reliable communications during full-duplex operation
  • Comprehensive LED display with per-port indicators: provides an at-a-glance view of status, activity, speed, and full-duplex operation
  • Unmanaged: provides plug-and-play simplicity
  • Fanless design: enables quiet operation for deployment in open spaces (selected models)
Additional information
  • Green initiative support: provides support for RoHS and WEEE regulations
  • Energy savings: utilizes Energy Efficient Ethernet (EEE) standard (IEEE 802.3az) and idle-port powerdown for energy savings (v2 only)
  • General protocols: IEEE 802.1p Priority; IEEE 802.3az Energy Efficient Ethernet; IEEE 802.3x Flow Control

  • 100 Mb Latency: < 4.1 µs; 1000 Mb Latency: < 2.6 µs

  • Address table size: 2048 entries

  • Memory and processor: packet buffer size: 1 MB

  • Throughput: up to 7.4 million pps

  • Ports: 5 RJ-45 autosensing 10/100/1000 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

  • Input voltage: 100-240 VAC

  • Input frequency: 50/60 Hz

  • Mounting: Desktop (rear port)

  • Electromagnetic compatibility: EN 55022 Class B; ICES-003 Class B; FCC Part 15, Class B; AS/NZS CISPR22 Class B

  • Safety: UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03

Technical Specs

Device Type Switch - 5 ports - unmanaged
Enclosure Type Desktop
Subtype Gigabit Ethernet
Ports 5 x 10/100/1000
Performance Throughput : up to 7.4 Mpps ¦ Routing/switching capacity : 10 Gbps
MAC Address Table Size 2K entries
Features Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), fanless, Energy Efficient Ethernet
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Status Indicators Port status, link activity, port transmission speed
Expansion / Connectivity
Interfaces 5 x 1000Base-T - RJ-45
Power Device External power adapter
Voltage Required AC 120/230 V ( 50/60 Hz )
Compliant Standards CISPR 22 Class B, UL 60950, EN55022 Class B, ICES-003 Class B, FCC Part 15, IEC 60950-1, EN 60950-1, CAN/CSA-C22.2 No. 60065-03
Dimensions & Weight
Width 4.5 in
Depth 3.6 in
Height 1.4 in
Weight 6.35 oz
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - advance parts replacement - 3 years ¦ Technical support - phone consulting - 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 15 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 15 - 95% (non-condensing)
