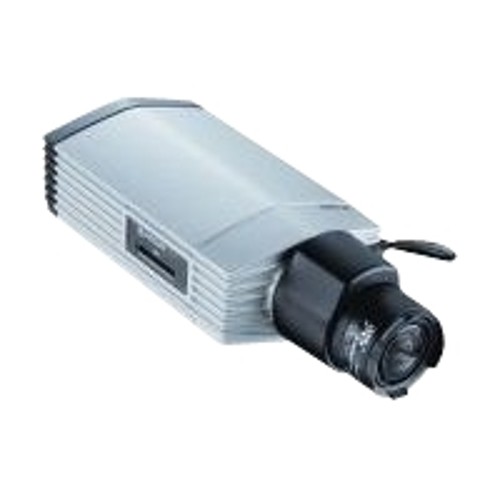

D-Link DCS 3716 Full HD Day & Night WDR Network Camera - network camera (DCS-3716)

D-Link
No Reviews | Add Review

Share Today!


D-Link DCS 3716 Full HD Day & Night WDR Network Camera - network camera

Widget Not Available!!!

Overview

D-Link DCS 3716 Full HD Day & Night WDR Network Camera - Network camera - color ( Day&Night ) - 2048 x 1536 - CS-mount - auto iris - vari-focal - audio - 10/100 - MPEG-4, MJPEG, 3GPP, H.264 - DC 12 V / PoE
  • MacMall Part #: 8945441
  • Manufacturer Part #: DCS-3716
  • UPC: 9781576162811
  • Platform: Universal


The D-Link DCS-3716 is a high-end Full HD Day & Night WDR IP Camera, equipped with a 1/2.8" 3 Megapixel WDR Progressive Scan CMOS sensor and a 3.1-8.0 mm DC auto iris lens. The DCS-3716 captures video in both dark and light environments, or even subjects shot against a backlight by neutralizing imperfect lighting and generating a realistic image. In addition, the removable IR-cut filter for day/night functionality provides clear detail and high quality video at any hour of the day. The DCS-3716 incorporates Power over Ethernet (PoE) and an SD card slot, allowing it to be easily installed in a variety of locations.The DCS-3716 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. MJPEG delivers excellent file integrity, ideal for situations which require high image detail. H.264 and MPEG-4 produce a small file size, useful for extended recording or for use in low-bandwidth networks. Additionally, the DCS-3716 supports multicast H.264 MPEG-4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.The DCS-3716 includes input and output ports allowing connectivity to external devices such as IR sensors, switches, and alarm relays. It also comes with an RS-485 interface, providing connectivity to an optional pan/tilt enclosure which effectively adds pan/tilt functionality to the DCS-3716. An additional 12 V interface provides power for an optional LED illuminator.The DCS-3716 comes with a ICR Filter which can be manually applied via the web, or set to automatically adjust based on lighting conditions. This feature allows the camera to capture crisp color images during the daytime, and grayscale images at dark.The Wide Dynamic Range (WDR) function provides clear images even under backlit conditions where the intensity of illumination can vary significantly, making the DCS-3716 perfect for extreme high-contrast environments. For example, when placed indoors, the DCS-3716 will adjust itself to the intense sunlight that may be streaming in through a nearby window. This makes it an ideal solution for security applications.The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. The DCS-3716 is ONVIF compliant and therefore interoperable with other manufacturer's products on the same network such as cameras, storage systems, video analytics products and Video Management Systems.The included D-Link D-ViewCam (DCS-100) is a sophisticated video management software which enables you to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and trigger motion detection to record directly to your hard drive or network folder. D-ViewCam also allows you to upload a floor plan of your premises, and create a realistic layout according to the locations of your cameras, further simplifying the management process.

Technical Specs

General
Device Type Network camera
Audio Support Yes : two-way audio capability
Connectivity Technology Wired
Width 3.1 in
Depth 7.5 in
Height 2.1 in
Weight 20.5 oz
Camera
Type Color - Day&Night - fixed
Digital Video Format MPEG-4, MJPEG, 3GPP, H.264
Max Digital Video Resolution 2048 x 1536
Digital Zoom 10
Minimum Illumination 0.5 lux - F1.2
Video Capture 2048 x 1536 @ 15 fps ¦ 1920 x 1080 @ 30 fps
Features Motion sensor, date/time stamp, IR filter , sharpness control, white balance, progressive scanning, saturation control, SD-card slot, brightness control, Power over Ethernet, contrast control, Wide Dynamic Range (WDR), Open Network Video Interface Forum (ONVIF), text stamp
Image Sensor
Type CMOS 1/2.8"
Lens Construction
Type CS-mount - vari-focal
Focal Length 3.1 mm - 8 mm
Lens Iris F/1.2 auto iris ( DC )
Horizontal Field of View (degree) 38.7 - 95.9
Vertical Field of View (degree) 29.1 - 71
Interfaces
Network Interface Ethernet 10Base-T/100Base-TX
Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, RTSP, RTP, HTTPS, UPnP, IPv4, RTCP, PPPoE, IGMP, Samba, 3GPP/ISMA
Control Interface RS-485
Alarm Inputs Qty 2
Alarm Outputs Qty 1
Expansion / Connectivity
Interfaces 1 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x camera - RS-485 ¦ 1 x audio - output ¦ 1 x audio - input ¦ 1 x video - output - BNC
Miscellaneous
Compliant Standards FCC Class A certified, C-Tick, ICES-003
Power
Power Requirements DC 12 V / PoE - 1.25 A
Power Device Power adapter - external 4 Watt
Software / System Requirements
Software Included D-ViewCam
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Relative Humidity (operating) 20 - 80% (non-condensing)
