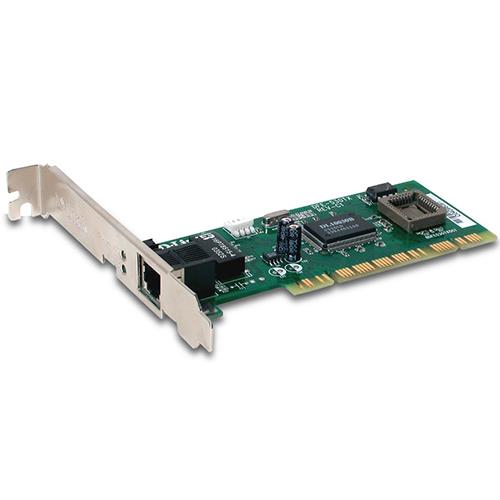

The D-Link DFE-530TX+ is a 10/100Mbps Fast Ethernet 32bit PCI Adapter for desktops, workstations, and servers. Supports a wide range of operating systems including Macintosh and Windows.
MacMall Part #: 945264
Manufacturer Part #: DFE-530TX+
Reliable Wired Networking The D-Link 10/100 Fast Ethernet Desktop Adapter (DFE-530TX+) delivers reliable wired network connectivity for your desktop PC. Access a high-speed Internet connection through your wired network using this Ethernet Desktop Adapter and surf the web, check e-mail, share documents, music, and photos.
– PCI Local Bus Master 2.1/2.2 Support – Plug-and-Play installation – Supports 20/200Mbps in Full Duplex Mode – Supports 10/100Mbps in Half Duplex Mode – Supports PCI 2.1/2.2 ACPI Power Management Wake-On-LAN (Magic Packet, LinkChg and Microsoft wake-up frame) – Compliant to PC 99 Standard – Independent 2Kb receive and transmit FIFOs
Advanced Features This Fast Ethernet Desktop Adapter includes advanced features such as Wake-On-LAN and IEEE 802.3x. Computers and operating systems that support the Advanced Configuration and Power Interface (ACPI) can remotely wake your PC from anywhere on the network with the Wake-On-LAN feature. With support for 802.3x flow control, data is received and transmitted smoothly to and from the network.
Easy To Install and Use This Fast Ethernet Desktop Adapter is automatically detected by Windows® during installation, simplifying the setup process. It supports IEEE 802.3 and 802.3u, ensuring compatibility with 10BASE-T and 100BASE-TX networks. This Ethernet Desktop Adapter utilizes auto-negotiation to automatically adjust to the highest supported transfer rate (up to 200Mbps in full duplex mode).
The D-Link 10/100 Fast Ethernet Desktop Adapter (DFE-530TX+) is a simple, cost-effective solution for desktop computers, making it the ideal choice for wired home networking applications.
What this Product Does Connect to your wired home network by adding a D-Link 10/100 Fast Ethernet Desktop Adapter to your desktop computer. Once connected, you can share a high-speed Internet connection while also getting access to shared documents, music, and photos from other computers on your network.
Minimum System Requirements:
– Windows XP SP2, Windows 2000 SP4 – CD-ROM Drive – 20MB Hard Disk Space – 32-Bit PCI Slot
Plug-in card - low profile
Interface (Bus) Type
PCI Specification Revision
PCI 2.1, PCI 2.2
Ethernet 10Base-T, Ethernet 100Base-TX
Data Link Protocol
10Mb LAN, 100Mb LAN
Data Transfer Rate
Link activity, link OK
Full duplex capability, auto-negotiation, wake on LAN (WOL)
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Expansion / Connectivity
1 x 100Base-TX - RJ-45
1 x PCI
Low-profile bracket, full-height bracket
Works with Windows Vista
Software and devices that carry the Works with Windows Vista logo have been tested for baseline compatibility with PC's running.
Software / System Requirements
Drivers & Utilities
Microsoft Windows 2000 SP4, Microsoft Windows XP SP2
System Requirements Details
- HD 20 MB
Dimensions & Weight
Min Operating Temperature
Max Operating Temperature
Humidity Range Operating
0 - 90%
