Cyberpower 2190VA / 1650W Intelligent, Line-Interactive UPS with Smart App Software, AVR, 2U RM/T, 17.2 AMP, 8 x NEMA 5-20R, RJ11/RJ45/Coax, USB/Serial (OR2200LCDRTXL2U)

Cyberpower
No Reviews | Add Review

Share Today!


Cyberpower 2190VA / 1650W Intelligent, Line-Interactive UPS with Smart App Software, AVR, 2U RM/T, 17.2 AMP, 8 x NEMA 5-20R, RJ11/RJ45/Coax, USB/Serial


Widget Not Available!!!

Overview

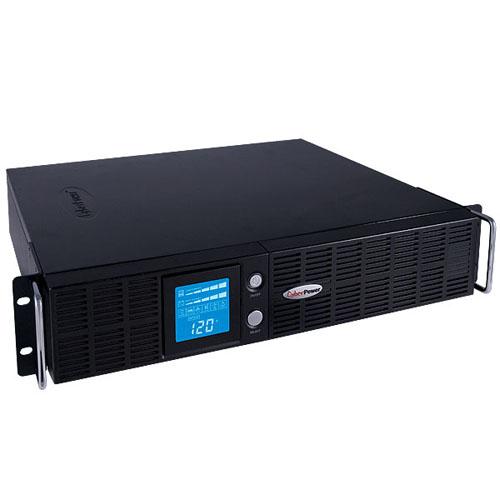

The CyberPower Smart App Intelligent LCD OR2200LCDRTXL2U uninterruptible power supply (UPS) safeguards internetworking hardware, telecom equipment, workstations and home entertainment systems that do not have active PFC power supplies.
  • MacMall Part #: 8061619
  • Manufacturer Part #: OR2200LCDRTXL2U
  • UPC: 093156003520
  • Platform: Universal



The CyberPower Smart App Intelligent LCD OR2200LCDRTXL2U uninterruptible power supply (UPS) safeguards internetworking hardware, telecom equipment, workstations and home entertainment systems that do not have active PFC power supplies. Its full automatic voltage regulation (AVR) boost/buck topology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions.

The OR2200LCDRTXL2U unit has a capacity of 2190VA/1650Watts, eight (8) NEMA 5-20R receptacles and four (4) maintenance-free, user-replaceable 12V/9Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB and two (2) DB9 serial ports. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.

This UPS unit incorporates microprocessor-based digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and control. The addition of an optional SNMP/Network card allows for remote management via web browser or network management system (NMS). A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.

Please note: This unit requires a NEMA 5-20R outlet.

Features & Benefits:

Microprocessor-Based Digital Control – Digital routing is maintained through a network of integrated circuitry and discrete values that are used for internal system processing, which significantly increases efficiency and responsiveness.

RM/T Configuration – The Smart App Sinewave UPS can be installed in either a Tower or Rack Mount (2U) configuration.

Full AVR – Boost/Buck topology increases low voltages and decreases high voltages, without switching to battery-mode. This conserves battery life and delivers power with a more stable and consistent voltage to connected equipment.

GreenPower UPS™ – GreenPower UPS™ technology significantly reduces UPS energy costs by bypassing the AVR transformer when incoming AC power is clean. This not only dramatically reduces utility consumption, but also reduces heat dissipation and system noise.

EMI/RFI Filters – Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment.

Dual PC Support – The Smart App Sinewave UPS has two (2) serial communication ports to connect two PCs or servers, giving the user full control and the ability to prioritize their operation.

Multi-function Rotatable LCD Display – UPS battery status and power conditions are easily viewed on this Crystal Blue readout when the UPS is rack mounted or standing as a tower.

Audible Alarms – Distinctive tones identify when the unit is running on battery power, if it is overloaded or when the battery is low.

Resettable Circuit Breaker – Convenient unit reset switch in case of an overload.

Metal Housing – Rugged, industrial-grade metal construction allows for installation of the unit in demanding environments.

PowerPanel Business Edition – This software suite manages the power for all servers and computers supported by the UPS on a network. Features include application/OS shutdown, event logging (power, surge, and voltage variations), hibernation mode, internal reports and analysis, as well as remote management capability for comprehensive power control.

3-Year Warranty – Stringent manufacturing processes and innovative product design enables CyberPower to offer one of the strongest warranties in our industry. CyberPower will repair or replace damaged units within three (3) years of purchase date.

#1 Rated Technical Support Team – CyberPower assists users with any product, installation, or warranty concerns – free of charge!

ISO and Safety Certifications – All CyberPower manufacturing facilities are state-of-the-art and ISO-9001 Quality Tested. Our products are certified by the FCC, cUL, and UL.

Windows Compatibility – Our PowerPanel® power management software has been fully tested and is compatible with Windows 2000, 2003, XP 32/64, Vista 32/64, 7, and Server 2008.

Product Details:
  • UPS Topology: Line-Interactive (AVR)
  • Energy Saving: Yes - GreenPower UPS™ Bypass Technology
  • Input Voltage: 90Vac - 140Vac
  • Frequency: 47Hz - 63Hz
  • Plug Type: NEMA 5-20P
  • Plug Style: Straight
  • Cord Length: 10'
  • Output VA: 2190
  • Watts: 1650
  • Automatic Voltage Regulation: Yes
  • On Battery Voltage: 120Vac +/- 10%
  • On Battery Frequency: 60Hz +/- 1%
  • On Battery Waveform: Simulated sine wave
  • Overload Protection: Internal circuitry limiting / circuit breaker
  • Outlet Type: NEMA 5-20R, Outlets - Battery & Surge Protected 8
  • Transfer Time: 4ms
  • Battery Runtime at Half Load (min): 14Runtime at Full Load (min) 6
  • Extended Runtimes Available: Yes, with optional BP48V75ART2U Battery Pack
  • Battery Type: Sealed lead acid
  • Battery Size: 12V/9AH
  • User Replaceable: Yes
  • Hot Swappable: Yes
    vTypical Recharge Time: 8 Hours
  • Replacement Battery: BB Battery - HR9-12
  • Battery Quantity: 4
  • Surge Suppression: 2,060 Joules
  • Phone / Ethernet RJ11 / RJ45: 1-In, 1-Out (Combo)
  • Coax Protection RG6: 1-In, 1-Out
  • Multifunction LCD Diagnostic Display: Load/Current Level, Runtime, Battery Level, Temperature (F & C), Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Battery Shutdown Voltage, Static Frequency Tolerance, Slew Rate, Silent Mode, Normal Mode
  • HID Compliant USB Port: Yes
  • Serial Port: Yes (2x)
  • Management Cable: USB cable, Serial cable (2)
  • LED Indicators: Power on, wiring fault
  • Audible Alarms: On battery, low battery, overload
  • Software: PowerPanel Business Edition
  • SNMP / HTTP Remote Monitoring: Yes, with optional RMCARD201
  • Rack Size: 2U
  • Certifications: UL1778, cUL 107.3, FCC DOC Class B
  • ROHS: ROHS Compliant

Technical Specs

General
Device Type UPS - external
Height (Rack Units) 2U
Power Device
UPS Technology Line interactive
Input Voltage AC 90-140 V
Frequency Required 47 - 63 Hz
Input Connector(s) 1 x power NEMA 5-20
Power Output Connectors Details 8 x power NEMA 5-20
Output Voltage AC 120 V ± 5% ( 60 Hz )
Power Capacity 1.65 kW / 2190 VA
Dataline Surge Protection Network/phone line - RJ-45/RJ-11
Output Waveform Sinewave
Surge Suppression Yes
Surge Energy Rating 2060 Joules
Circuit Protection Circuit breaker
Battery
Quantity 4
Technology Lead acid
Voltage Provided 12 V
Capacity 9 Ah
Run Time (Up To) 6 min at full load
Recharge Time 8 hours
Networking
Remote Management Interface RS-232, USB
Expansion / Connectivity
Interfaces 2 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B
Expansion Slot(s) 1 (total) / 1 (free) x expansion slot
Miscellaneous
Cables Included 1 x USB cable - external ¦ 2 x serial cable - external ¦ 1 x power cable - integrated - 10 ft
Equipment Protection Value 300000 US Dollars
Features Audible alarm, LCD display, Automatic Voltage Regulation (AVR), GreenPower UPS Technology
Compliant Standards FCC Class B certified, ISO 9001, cUL, DOC-B, RoHS
Software / System Requirements
Software Included PowerPanel Business Edition
OS Required Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows XP 64-bit Edition, Microsoft Windows 7, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows Vista (32/64 bits)
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 90%
Dimensions & Weight
Width 17 in
Depth 18.8 in
Height 3.5 in
Weight 66.1 lbs
