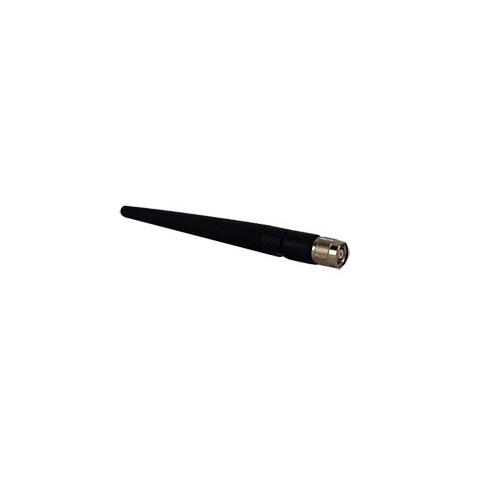

This document outlines the specifications and description of the 2.2-dBi articulating dipole antenna. This antenna operates in the 2.4- 2.5-GHz band and is designed for use with Cisco Aironet radio products utilizing a reverse-polarity threaded naval connector (RP-TNC).
Antenna type: Dipole
Operating frequency range: 2402-2495 MHz
2:l VSWR bandwidth: 2385 - 2515 Mhz
Peak gain: 2 dBi
Polarization: Linear, vertical
E-Plane 3-dB beamwidth: 70°
H-Plane 3-dB beamwidth: Omnidirectional
Weight: 0.06 lbs.
Connector type: RP-TNC plug
Operating temperature range: 32°F to 140°F (0°C to 60°C)
Features: The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its knuckle. The articulated base is shown in the following illustration.
Cabling & Wiring
1 x RP-TNC male
Min Operating Temperature
Max Operating Temperature
Cisco Aironet 1200, 1220, 1230, 1230AG, 1231, 1231G, 1232AG, 1242AG, 1242G, 1250 Modular Unified Access Point Platform, 1252AG, 1252AG Standalone Access Point, 1252AG Unified Access Point, 1252G, 1252G Unfied Access Point, 1260 Series Access Point (Controller-based)
