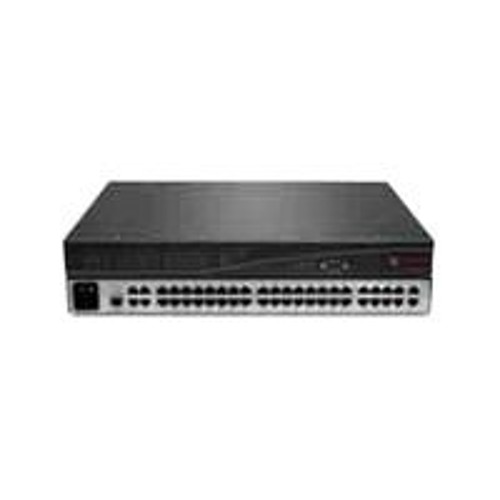

Avocent AMX 5020 - KVM switch - CAT5 - 42 x KVM port(s) - 4 local users - rack-mountable (AMX5020-G01)

No Reviews | Add Review

Share Today!

Avocent AMX 5020 - KVM switch - CAT5 - 42 x KVM port(s) - 4 local users - rack-mountable

Widget Not Available!!!


Avocent AMX 5020 - KVM switch - CAT5 - 42 x KVM port(s) - 4 local users - rack-mountable
  • MacMall Part #: 7246100
  • Manufacturer Part #: AMX5020-G01
  • UPC: 0636430035048
  • Platform: Universal

The Avocent AMX5020 KVM switch is a 4x42 appliance with a field-proven scalable architecture that easily accommodates additional servers and users. The AMX5020 matrix switch allows simultaneous access, supports multi-platform server environments and provides non-blocked access to servers. The AMX5020 switch includes the AMWorks Java-based system management tool.

Technical Specs

Device Type KVM switch - 42 ports - cascadable
Enclosure Type Rack-mountable - 1U
Subtype KVM
Ports 42 x KVM port(s)
KVM Local Users Qty 4 local users
Server Connection Via Twisted Pair CAT5
Local User Connection Via Twisted Pair CAT5
Max Cascading Depth 3
Max Resolution 1600 x 1200 @ 75 Hz
Features Local user connection via twisted pair, server connection via twisted pair, user access management
Expansion / Connectivity
Interfaces 42 x KVM - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) - management ¦ 4 x KVM - RJ-45 ¦ 1 x 10Base-T/100Base-TX - RJ-45
Power Device Internal power supply
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 75 Watt
Compliant Standards UL, VCCI, C-Tick, cUL, ICES-003, FCC
TAA Compliant Yes
Software / System Requirements
Software Included AMWorks, OSCAR
Dimensions & Weight
Width 17 in
Depth 13.9 in
Height 1.7 in
Weight 9.26 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 - 90%
