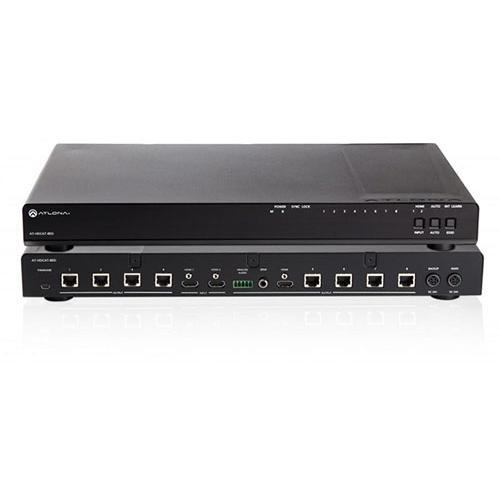

Atlona HDBaseT HDMI 2 by 8 Distribution Amplifier Extended Distance over a Single Category Cable (AT-HDCAT-8ED)

Atlona
No Reviews | Add Review

Share Today!


Atlona HDBaseT HDMI 2 by 8 Distribution Amplifier Extended Distance over a Single Category Cable

Widget Not Available!!!

Overview

One source to many displays. The HDCAT enables you to send one source to multiple displays up to 330ft away.
  • MacMall Part #: 9580953
  • Manufacturer Part #: AT-HDCAT-8ED
  • Platform: Universal



One source to many displays. The HDCAT enables you to send one source to multiple displays up to 330ft away. With built in audio loop outs to ensure all audio and video needs are met in zone and locally, the Atlona HDBaseT HDMI 2 by 8 Distribution Amplifier Extended Distance over a Single Category Cable ensure you can pass any audio from 2CH to uncompressed multi-channel and any video up to 1080p or 1920x1200.

Powerful Smart Auto-Switching
The HDCATs smart switching capability eliminates the need to manually change inputs. Simply power on/off a source device and the matrix conveniently switches automatically.

Go Further with More
Extend your audio/visual experience up to 330ft. HDBaseT technology allows you to send power, video (up to 1080p or 1920x1200) and audio (all Lossy and Lossless formats) signals over a single category cable.

Power of One for All
Leave behind the power cable on your receiver. With the latest feature of Power over Category cable (PoCc) the HDCAT transmits power to all the connected receivers over category cable.

Never too Many Displays
With a built in local HDMI loop out, send your source to multiple HDCATs. Use one source signal for as many as 8 daisy chains.


Additional Features
  • Redundant power supply (optional)
  • EDID learning mode to ensure compatibility
  • Built in S/PDIF and Analog audio loop outs
  • Supports pass through of all 3D formats
  • Pass through support of all Lossy and Lossless audio (up to Dolby TrueHD or DTS-HD Master Audio).
  • Locking HDMI port
  • Field serviceable firmware port
  • Includes dual purpose wall/rack mount ears, IR remote
Specifications
  • Bandwidth: 6.75Gbps
  • Video: (Video) up to 1080p@60Hz / (VESA) up to 1920x1200
  • Audio: passes through up to Dolby TrueHD or DTS-HD Master Audio
  • Distance: 330ft CAT5e/6/7
  • Rack Size: 1U
  • Power Consumption: ~50W
  • Operating Temperature: 32°F to 104°F / 0°C to 40°C
  • Storage Temperature: -4°F to 140°F / -20°C to 60°C

Technical Specs

General
Device Type Video/audio extender
Form Factor External - 1U
Networking
Ports Qty 8
Connectivity Technology Wired
Max Resolution 1920 x 1200 / 1080p
Max Transfer Distance 330 ft
Features Firmware upgradable
Expansion / Connectivity
Interfaces 2 x HDMI ( input ) - 19 pin HDMI Type A ¦ 8 x network - RJ-45 ¦ 1 x SPDIF ( output ) - RCA ¦ 1 x USB ¦ 1 x audio ¦ 1 x HDMI ( output ) - 19 pin HDMI Type A
Miscellaneous
Rack Mounting Kit Included
Compliant Standards FCC, RoHS, cULus
Power
Power Device External power adapter
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 93 Watt
Dimensions & Weight
Width 17.1 in
Depth 10 in
Height 1.7 in
Weight 6.5 lbs
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 20 - 90% (non-condensing)
