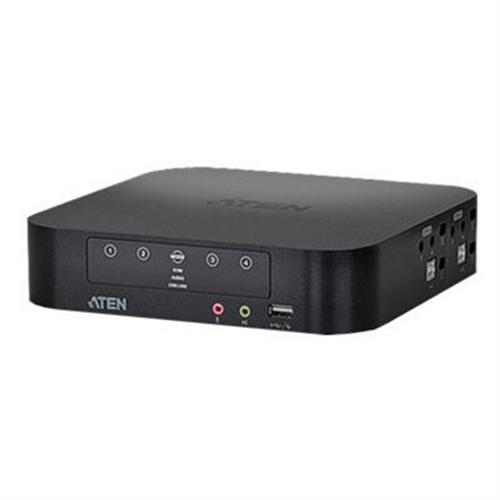

Aten Technology CS1944 - KVM / audio / USB switch - 4 ports - desktop (CS1944)

Aten Technology
No Reviews | Add Review

Share Today!


Aten Technology CS1944 - KVM / audio / USB switch - 4 ports - desktop

Widget Not Available!!!

Overview

ATEN CS1944 - KVM / audio / USB switch - USB - 4 x KVM / audio - 1 local user - desktop
  • MacMall Part #: 9511657
  • Manufacturer Part #: CS1944
  • UPC: 652977131739
  • Platform: Universal


The CS1944 4-port USB 2.0 dual view mini DisplayPort KVMP switch allows access to 4 computers from a single USB keyboard and USB mouse with dual displays. The KVM switches amazing functionality combines a Dual view 4-port mini DisplayPort switch, with a 2-port USB 2.0 hub, and front panel USB quick charge port for mobile devices.The CS1944 further improves on previous KVM designs with the latest mini-DisplayPort and mini-TOSLINK connectors. It also provides the capability of digital video & audio with reliable Ultra high resolution, vivid picture quality, and surround sound with SPDIF connections.The CS1944 is ideal for multimedia applications, and offers the ultimate in space-saving, streamlined KVM technology for the desktop.

Technical Specs

General
Device Type KVM / audio / USB switch - 4 ports
Enclosure Type Desktop
Subtype DisplayPort
Ports 4 x KVM / audio
KVM Local Users Qty 1 local user
Keyboard / Mouse Interface USB
Max Resolution 2560 x 1600 @ 60 Hz
Features Built-in 2 port USB 2.0 hub, HDCP compliant, 3D support
Compliant Standards USB 1.1, USB 2.0
Built-in Devices USB hub
Status Indicators Port status
Expansion / Connectivity
Interfaces 1 x keyboard (USB) - Type A ¦ 1 x mouse (USB) - Type A ¦ 2 x mini-DisplayPort output ¦ 1 x microphone input - mini-jack ¦ 1 x headphones output - mini-jack ¦ 1 x microphone input - mini-TOSLINK ¦ 1 x headphones output - mini-TOSLINK ¦ 4 x keyboard (USB) / mouse (USB) - Type B ¦ 2 x USB 2.0 - Type A ¦ 4 x microphone output - mini-TOSLINK ¦ 4 x headphones input - mini-TOSLINK ¦ 8 x mini-DisplayPort input
Power
Power Device External power adapter
Power Consumption Operational 8.63 Watt
Miscellaneous
Cables Included 4 x DisplayPort cable - 3.3 ft ¦ 4 x DisplayPort cable - 6.6 ft ¦ 4 x USB cable - 6 ft ¦ 4 x audio cable kit - 6 ft
Compliant Standards RoHS, WEEE
Dimensions & Weight
Width 7.8 in
Depth 7.8 in
Height 1.8 in
Weight 21.7 oz
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 0 - 80% (non-condensing)
Min Storage Temperature -4 °F
Max Storage Temperature 140 °F
