Aten Technology VS1504 Cat 5 Audio/Video Splitter - Video/audio extender - 4 ports - up to 492 ft (VS1504T)

Aten Technology
No Reviews | Add Review

Share Today!

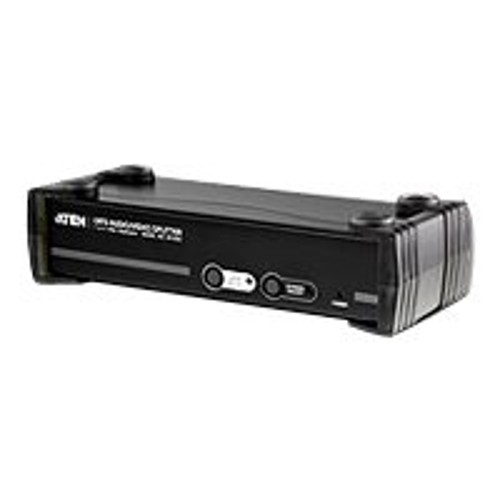

Aten Technology VS1504 Cat 5 Audio/Video Splitter - Video/audio extender - 4 ports - up to 492 ft

Widget Not Available!!!


ATEN VS1504 Cat 5 Audio/Video Splitter - Video/audio extender - 4 ports - up to 492 ft
  • MacMall Part #: 8886177
  • Manufacturer Part #: VS1504T
  • Platform: Universal

The VS1504 allows a single1600 x 1200 video source with audio to be distributed to as many as 8 monitors up to 490 feet away via Cat5e/Cat6 cable. The VS1504 may be cascaded to three levels of additional VS1504 and VB552s providing audio / visual data to potentially hundreds of displays.The VS1504 is ideal for applications requiring many widely spaced monitors displaying the same audio/video information such as schedules, notifications, advertising, news, sporting events, and lectures.

Technical Specs

Device Type Video/audio extender
Form Factor External
Ports Qty 4
Connectivity Technology Wired
Max Resolution 1920 x 1200 @ 60 Hz
Max Transfer Distance 492 ft
Status Indicators Power
Expansion / Connectivity
Interfaces 1 x VGA ( input ) - HD-15 male ¦ 1 x VGA ( output ) - HD-15 female ¦ 4 x display / video - output - RJ-45 female ¦ 1 x audio ( input ) - mini jack female ¦ 1 x audio ( output ) - mini jack female ¦ 1 x serial - RS-232 input - 9 pin D-Sub (DB-9) female ¦ 1 x serial - RS-232 output - 9 pin D-Sub (DB-9) male ¦ 1 x cascading - RJ-45 female
Cables Included 1 x VGA / audio cable - 6 ft
Power Device External power adapter
Dimensions & Weight
Width 8.3 in
Depth 3.5 in
Height 2.2 in
Weight 1.65 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 0 - 80%
